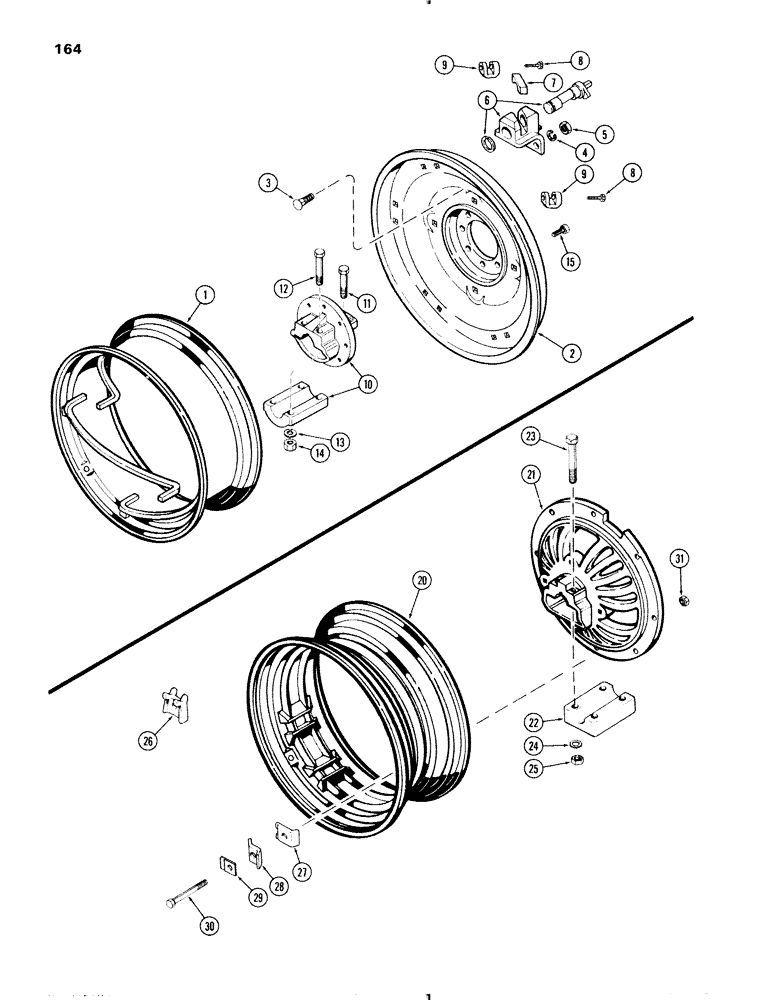

Запчасти Case IH 570 (164) - 38" PWR ADJ REAR WHLS, GNRL PURP MODELS, (470-570 SERIES) (06) - POWER TRAIN

A38432

WHEEL ASSY. - rear, power adjusted (includes ref. 1 - 9)

2шт.

1

A41737

RIM - wheel (11.2 or 12.4 x 38" tire)

1шт.

2

A41738

WHEEL

DISC - wheel

1шт.

3

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

BOLT - (5/8 x 1-5/8" rd. hd. sq. neck) (plated)

12шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

5

129-107

NUT,5/8"-11, G5

12шт.

6

A41739

ECCENTRIC

BODY ASSY. - eccentric wheel pin

6шт.

7

A41741

BLOCK

- wheel eccentric pin

6шт.

8

A9440

STOP

SCREW - wheel stop

2шт.

9

A41740

STOP

BODY - wheel stop

2шт.

10

A38213

HUB - rear wheel

2шт.

11

G10840

BOLT

- outer, hub (3/4 x 3-3/4")

4шт.

12

G10841

BOLT

BOLT - inner, hub (3/4 x 4-1/2" N.F. hex)

4шт.

13

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - lock (3/4" int./ext.)

8шт.

14

G10842

NUT

- hub volts (3/4" N.F. hex)

8шт.

15

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. special)

16шт.

20

G45104

RIM - rear wheel (13.6 or 14.9 x 28" tire), 28'' cast general purpose models (570 series)

2шт.

21

G14322

WHEEL ASSY. - rear, cast, 28'' cast general purpose models (570 series) (includes ref. 22 - 25)

2шт.

22

G1265

CLAMP - hub half, 28'' cast rear wheel general purpose models (570 series)

1шт.

23

G49047

BOLT

- rear wheel to hub, 28'' cast general purpose models (570 series)

4шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - lock (3/4" int./ext.), 28'' cast rear wheel general purpose models (570 series)

4шт.

25

G10842

NUT

- wheel hub bolt, 28'' cast rear wheel general purpose models (570 series)

4шт.

26

A26347

CLAMP

- rim drive, 28'' cast rear wheel general purpose models (570 series)

4шт.

27

A28219

CLAMP

- rim mounting (male), 28'' cast rear wheel general purpose models (570 series)

12шт.

28

A28220

CLAMP

- rim mounting (female), 28'' cast rear wheel general purpose models (570 series)

12шт.

29

A28733

LUG

ASSY. - rim clamp bolt locking, 28'' cast rear wheel general purpose models (570 series)

16шт.

30

113-657

BOLT - hex hd. (5/8 x 3" N.C.) (plated), 28'' cast rear wheel general purpose models (570 series)

16шт.

31

A27183

NUT

- rim clamp bolt, 28'' cast rear wheel general purpose models (570 series)

16шт.
