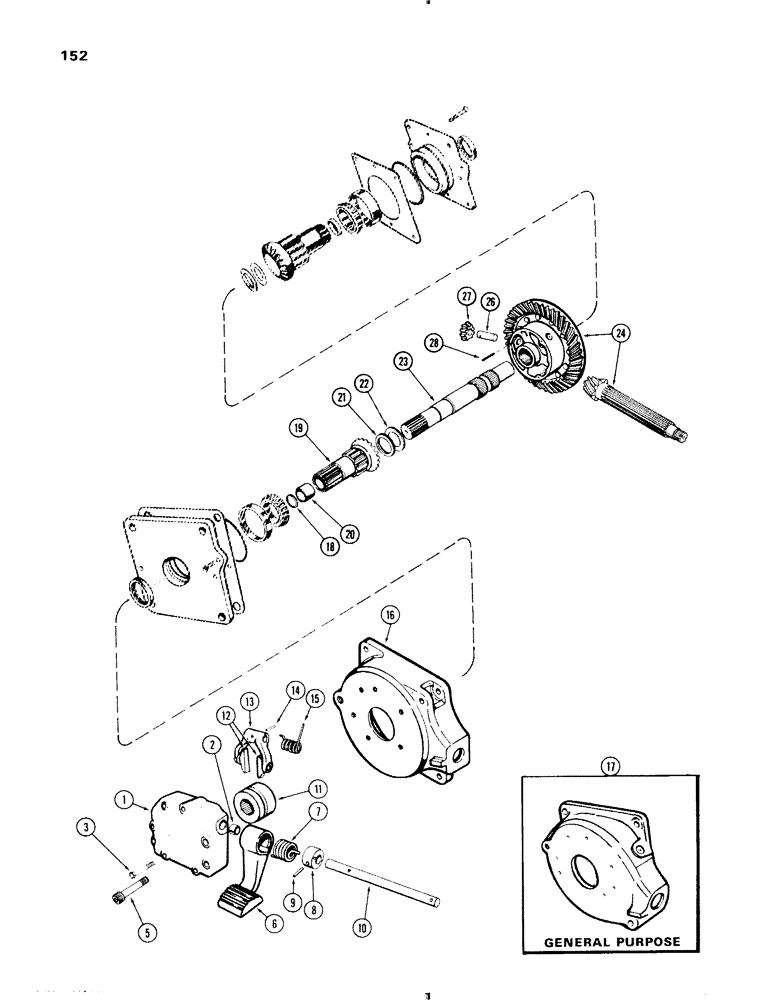

Запчасти Case IH 570 (152) - DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A35923

HOUSING

COVER ASSY. - differential lock (includes ref. 2)

1шт.

2

A35925

BUSHING

- pedal and lever

1шт.

3

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

5

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - (5/16 x 2-1/4" N.C. hex, socket head)

1шт.

6

A37043

PEDAL - front, differential lock

1шт.

7

A36446

SPRING

- foot pedal

1шт.

8

A36447

RETAINER

COLLAR - pedal spring

1шт.

9

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

10

A36444

SHAFT - pedal and lever

1шт.

11

A35929

CLAMP

COLLAR - locking

1шт.

12

A38750

FINGER

- locking collar

2шт.

13

A38749

LEVER

- locking collar

1шт.

14

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

15

A35933

SPRING

- inner

1шт.

16

A37052

COVER

- R.H. brake (standard 4 wheel)

1шт.

17

A35926

COVER - R.H. brake (General Purpose)

1шт.

18

A35919

OIL SEAL

- oil

2шт.

19

A38935

GEAR

ASSY. - R.H. side (includes ref. 20)

1шт.

20

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- R.H. side gear

1шт.

21

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, side gear (.089")

1шт.

21

A39007

WASHER

- thrust, side gear (.094")

1шт.

21

A39008

WASHER

- thrust, side gear (.099")

1шт.

21

A39009

WASHER

- thrust, side gear (.104")

1шт.

21

A39010

WASHER

- thrust, side gear (.109")

1шт.

21

A39011

WASHER

- thrust, side gear (.119")

1шт.

22

A29388

WASHER

SHIM - side gear (.010")

1шт.

23

A35918

SHAFT

- cross, differential

1шт.

24

A38401

GEAR-SET

RING GEAR ASSY. & COUNTERSHAFT - (Matched Set)

1шт.

26

A37097

PIN

SHAFT - pinion gear

3шт.

27

A38933

GEAR

- pinion

3шт.

28

138-2036

PIN,3/16" x 2", Coiled

3шт.
