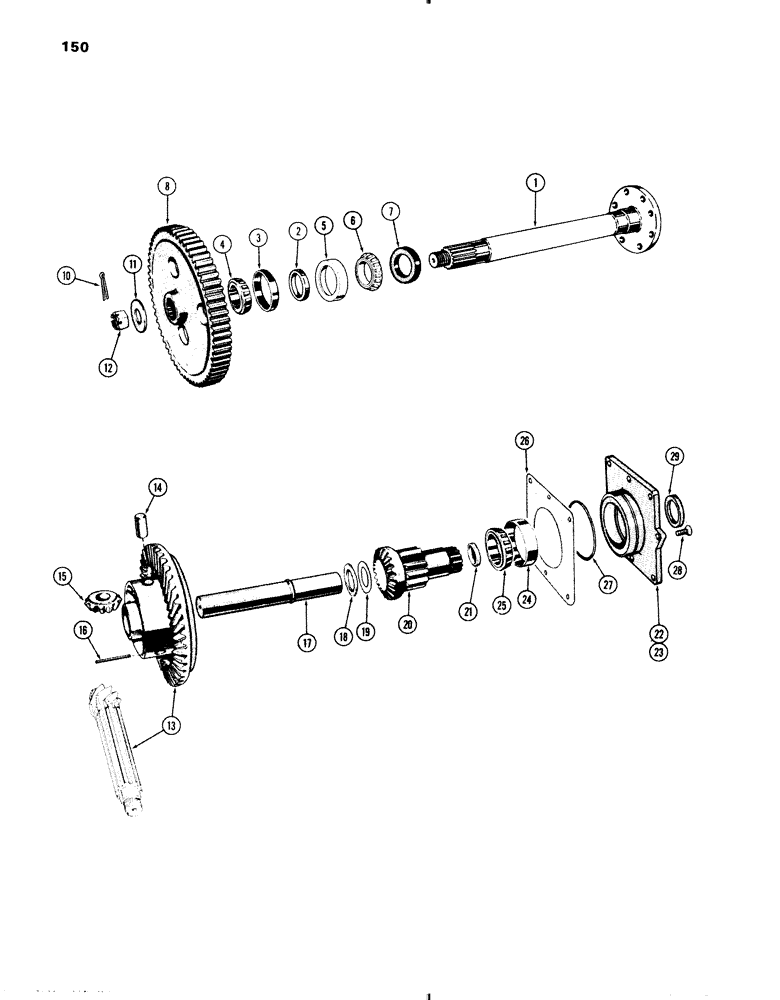

Запчасти Case IH 570 (150) - REAR AXLE AND DIFFERENTIAL, STANDARD 4 WHEEL TRACTOR (06) - POWER TRAIN

1

A38209

SHAFT

- rear axle, flanged

2шт.

2

G13801

OIL SEAL

- oil, inner, axle shaft

2шт.

3

G10415

BEARING CUP

CUP - inner bearing, axle shaft

2шт.

4

G10414

ROLLER BEARING

CONE - inner bearing, axle shaft

2шт.

5

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, axle shaft

2шт.

6

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, outer, axle shaft

2шт.

8

A37925

GEAR

- final drive

2шт.

10

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

11

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle

2шт.

12

A30075

WHEEL NUT

- axle shaft

2шт.

13

A38402

KIT

RING GEAR ASSY. & COUNTERSHAFT - (Matched Set)

1шт.

14

A37097

PIN

SHAFT - pinion gear

3шт.

15

A3893

GEAR - pinion

3шт.

16

138-2036

PIN,3/16" x 2", Coiled

3шт.

17

A37186

SHAFT

- cross, differential

1шт.

18

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, cross shaft (.089")

1шт.

18

A39007

WASHER

- thrust, cross shaft (.094")

1шт.

18

A39008

WASHER

- thrust, cross shaft (.099")

1шт.

18

A39009

WASHER

- thrust, cross shaft (.104")

1шт.

18

A39010

WASHER

- thrust, cross shaft (.109")

1шт.

19

A39011

WASHER

- thrust, cross shaft (.119")

1шт.

19

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

20

A38937

PINION

GEAR ASSY. - side (includes ref. 21)

2шт.

21

A29902

PLUG

- side gear

1шт.

22

G30490

CARRIER

- bearing, R.H. side gear

1шт.

23

G30491

CARRIER

- bearing, L.H. side gear (includes ref. 24)

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

25

A30114

CONE

- bearing, R.H. & L.H. side gear

2шт.

26

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

26

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

27

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

2шт.

28

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- (3/8 x 3/4" flat hd.)

2шт.

29

G10689

SEAL

- oil, bearing carrier

2шт.
