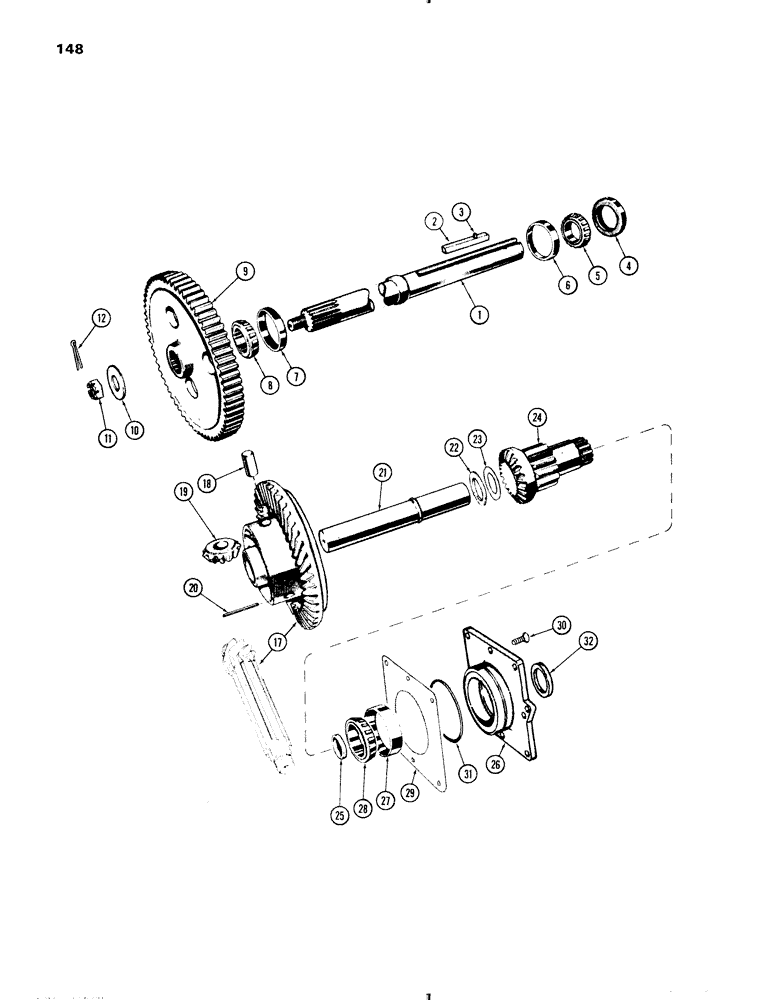

Запчасти Case IH 570 (148) - REAR AXLE AND DIFFERENTIAL, GENERAL PURPOSE MODELS (06) - POWER TRAIN

1

A37184

SHAFT - rear axle

2шт.

2

A35174

KEY ASSY. - wheel hub to axle (includes ref. 3)

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

4

G10346

OIL SEAL

- oil, outer, axle shaft

2шт.

5

A29975

CUP ASSY.

CONE - outer bearing, axle shaft

2шт.

6

A29974

CUP ASSY.

CUP - outer bearing, axle shaft

2шт.

7

G10415

BEARING CUP

CUP - inner bearing, axle shaft

2шт.

8

G10414

ROLLER BEARING

CONE - inner bearing, axle shaft

2шт.

9

A37925

GEAR

- final drive

2шт.

10

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle

2шт.

11

A30075

WHEEL NUT

- axle

2шт.

12

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

17

A38402

KIT

RING GEAR ASSY. & COUNTERSHAFT - (Matched Set)

1шт.

18

A37097

PIN

SHAFT - pinion gear

3шт.

19

A38933

GEAR

- pinion

3шт.

20

138-2036

PIN,3/16" x 2", Coiled

3шт.

21

A37186

SHAFT

- cross, differential

1шт.

22

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, cross shaft (.089")

1шт.

22

A39007

WASHER

- thrust, cross shaft (.094")

1шт.

22

A39008

WASHER

- thrust, cross shaft (.099")

1шт.

22

A39009

WASHER

- thrust, cross shaft (.104")

1шт.

22

A39010

WASHER

- thrust, cross shaft (.109")

1шт.

22

A39011

WASHER

- thrust, cross shaft (.119")

1шт.

23

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

24

A38937

PINION

GEAR ASSY. - side (includes ref. 25)

2шт.

25

A29902

PLUG

- side gear

1шт.

26

G30492

CARRIER - bearing, R.H. & L.H. side gear (includes ref. 27)

2шт.

27

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

28

A30114

CONE

- bearing, side gear

2шт.

29

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

29

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

30

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- (3/8 x 3/4" flat hd.)

2шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

2шт.

32

G10689

SEAL

- oil, bearing carrier

2шт.
