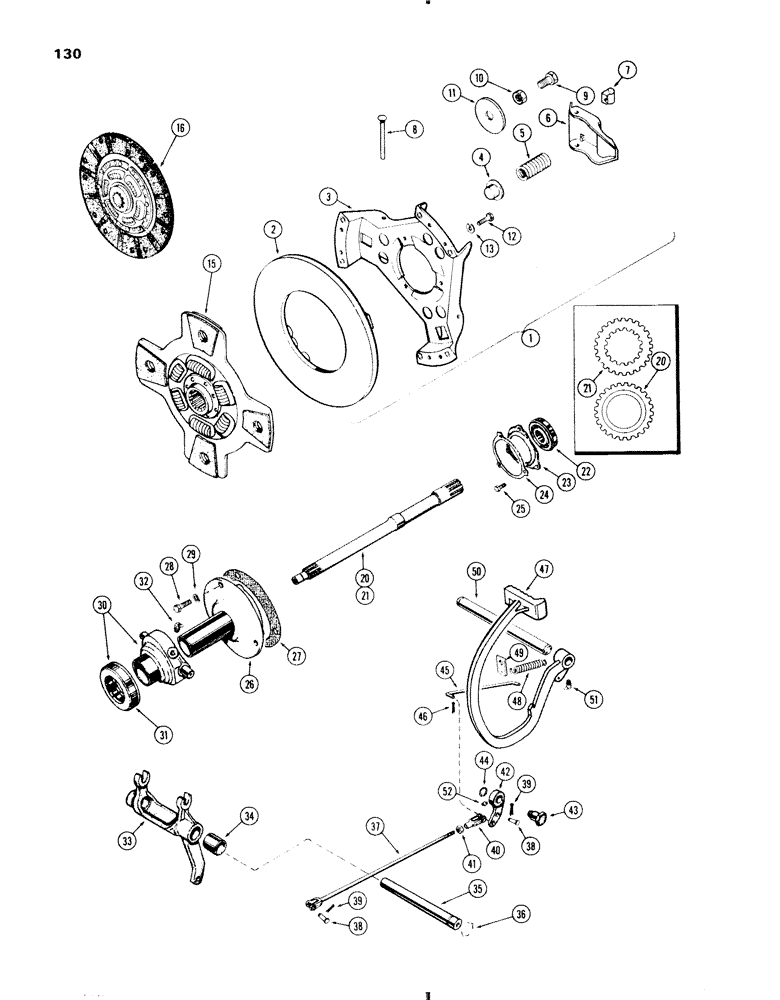

Запчасти Case IH 570 (130) - CLUTCH ASSEMBLY AND LINKAGE (06) - POWER TRAIN

1

A37566

PLATE

PLATE ASSY. - pressure (includes ref. 2 - 11)

1шт.

1

A37566R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate

1шт.

1

A37566C

CORE-CLUTCH PLATE

Return Part Number Plate Assembly Pressure

1шт.

2

G4506

PLATE

PLATE - pressure

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET & HUB - (Order A37566)

1шт.

4

G47012

SPARE PART CUP - pressure spring

6шт.

5

G47013

SPRING

SPRING - lever (white)

6шт.

6

A40885

LEVER

LEVER - clutch

3шт.

7

G46061

CLIP

CLIP - clutch return

3шт.

8

A41427

AXLE PIN

PIN - pivot

3шт.

9

G49004

SCREW

SCREW - adjusting

3шт.

10

G49005

SPARE PART NUT - jam

3шт.

11

G49048

WASHER

WASHER - adjusting screw

3шт.

12

G11207

BOLT

BOLT - pressure, Serial Range: plate-flywheel

6шт.

13

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

15

A38389

PLATE

driven; driving (w/diesel engine)

1шт.

15

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

15

1997844C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

16

A39087

PLATE ASSY.

PLATE - driving (w/spark ignition engine) (Replaces A37568)

1шт.

16

1997843C1R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle, No damper assembly

1шт.

16

1997843C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

20

A37618

SHAFT

SHAFT - clutch (has no internal spline) (use w/independent P.T.O. or no P.T.O.)

1шт.

21

A37619

SPARE PART SHAFT - clutch (has internal spline) (use w/standard P.T.O.)

1шт.

22

A37733

BALL BEARING

BEARING - clutch shaft

1шт.

23

G10383

BEARING CAP

CAP - bearing retainer

1шт.

24

G10382

LOCK

LOCK - bearing retainer

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

26

A37612

HOUSING

SLEEVE - throwout, clutch

1шт.

27

G10407

GASKET

GASKET - throwout sleeve

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

30

A37774

CARRIER

CARRIER ASSY. - throwout bearing (includes ref. 31)

1шт.

31

A7538

BEARING

BEARING - clutch throwout release

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T. x 45 deg.)

1шт.

33

G14469

YOKE

UNIVERSAL JOINT YOKE YOKE ASSY. - clutch throwout (includes ref. 34)

1шт.

34

G49661

BUSHING

BUSHING - pivot, yoke

2шт.

35

A35029

SHAFT

SHAFT - pivot, throwout yoke

1шт.

36

A35030

RING

RING - snap, pivot shaft

1шт.

37

G46243

ROD

ROD - clutch throwout

1шт.

38

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, Throwout rod 5/16" x .940"

2шт.

39

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2шт.

40

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod to lever

1шт.

41

25-155

JAM NUT,Jam, 5/16"-24, G5

NUT - hex (5/16" N.C., jam)

1шт.

42

A38168

LEVER

LEVER - throwout rod

1шт.

43

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

44

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

45

G10748

LINK

ROD - clutch, Serial Range: pedal-lever

1шт.

46

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

47

G1412

SPARE PART PEDAL - foot, clutch

1шт.

48

A35789

SPRING

SPRING - return, clutch pedal

1шт.

49

G15912

SPARE PART BRACKET - return spring

1шт.

50

G10708

SHAFT

SHAFT - cross, clutch & brake pedal

1шт.

51

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T. x 45 deg.)

1шт.

52

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (1/4" P.T. x 180 deg.) 1/4"-28 NPT x .54" lg

1шт.
