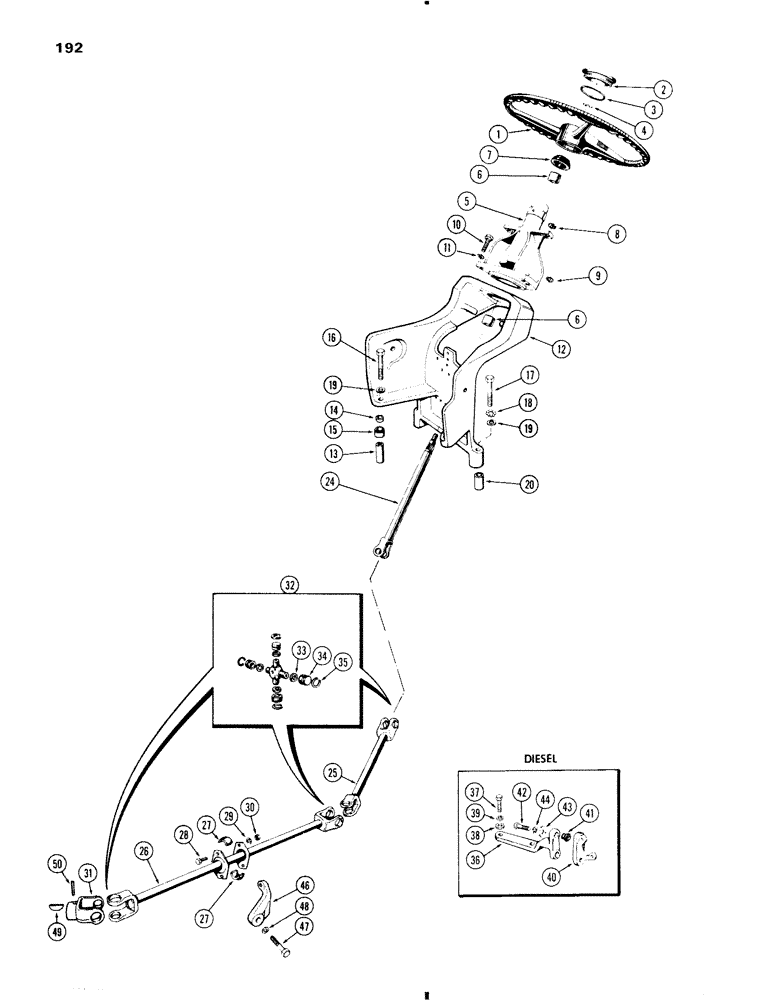

Запчасти Case IH 570 (192) - STEERING WHEEL AND LINKAGE, 570 WITH DUAL FRONT WHEEL (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

4

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel retaining (3/4" N.F., jam)

1шт.

5

A36525

COLUMN ASSY. - steering (includes ref. 6)

1шт.

6

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering column

2шт.

7

G10742

SEAL

- dust, steering column

1шт.

8

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Upper (1/4" P.T. x 180 deg.) 1/4"-28 NPT x .94" lg

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lower (1/4" P.T. x 180 deg.) 1/4"-28 NPT x .54" lg

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Column Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A36178

SUPPORT - steering column

1шт.

13

G49624

SPACER

- support, front lower (4-7/8" long)

2шт.

14

G11270

SPACER

- support (front upper)(diesel)

2шт.

15

G45343

COMPOSITE RING

BUSHING - support mtg. (diesel)

4шт.

16

15-6104

X

BOLT - support, front (3/8 x 6-1/2" N.C. rd. hd.)

2шт.

17

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Rear support Hex, 3/8"-16 x 2 3/4", G5

2шт.

18

193-72

LOCK WASHER

- lock (3/8" int./ext.) (rear) (plated)

2шт.

19

95-6

WASHER,3/8"

- plain () 3/8"

3шт.

20

A35627

BUSHING

- support (w/gas engine) (3/8" long)

4шт.

20

G49622

SPACER,5/8" Tube x 1 7/16"

- support, rear (w/diesel engine) (1-7/16" long)

2шт.

24

G45261

SHAFT - steering, upper

1шт.

25

G45262

SHAFT - steering, intermediate

1шт.

26

G45263

SHAFT ASSY. - steering, lower (diesel) (36-1/2" long)

1шт.

26

G45237

SHAFT ASSY. - steering, lower (gas) (35-1/2" long) (includes ref. 27 - 30)

1шт.

27

G17025

CYLINDER END CAP

BEARING - half shell

2шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bearing flange Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

2шт.

31

G10897

YOKE

- universal joint, front

1шт.

32

A30435

KIT

UNIVERSAL JOINT ASSY. (includes ref. 33, 34 & 35)

3шт.

33

A30766

WASHER - cork

4шт.

34

NSS

NOT SOLD SEPARAT

BEARING - (Order A30435)

4шт.

35

A31149

RING, SNAP

RING - snap, bearing retaining

4шт.

36

G1379

BRACKET - bearing support (diesel)

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

38

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

G1380

SUPPORT - bearing (diesel)

1шт.

41

G45343

COMPOSITE RING

BUSHING ASSY. - support (w/rubber insert) (diesel)

2шт.

42

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- support (3/8 x 1-1/2" N.C. hex hd.)

2шт.

43

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

46

G1343

SUPPORT - bearing (gas)

1шт.

47

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Gas) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

49

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Yoke to worm shaft #15, 1/4" x 1"

1шт.

50

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Yoke to worm shaft 1/4" x 1 1/2", Slotted

1шт.
