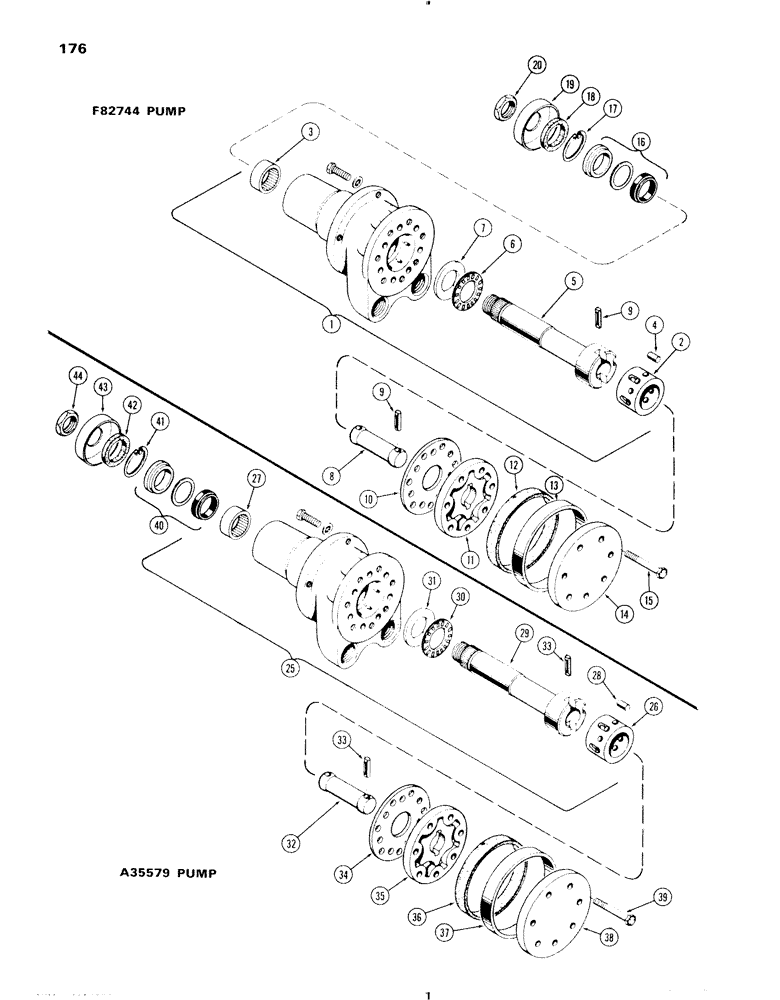

Запчасти Case IH 570 (176) - HYDROSTATIC STEERING, F82744 MANUAL PUMP (05) - STEERING
№
Артикул
Название
Примечание
Количество
F82744
PUMP ASSY. - manual (Ross Gear #P4001) (includes ref. 1 - 20)
1шт.
1
F82945
BODY
ASSY. - pump (includes ref. 2 & 3)
1шт.
2
NSS
NOT SOLD SEPARAT
COMMUTATOR - pump body (Order F82945)
1шт.
3
A30588
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W
BEARING - needle
1шт.
4
F19631
PIN
- commutator
1шт.
5
F19632
SHAFT
- coupling
1шт.
6
F19633
NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W
BEARING - needle, thrust
1шт.
7
F19634
BEARING WASHER
RACE - thrust bearing
1шт.
8
F19635
LINK
- rotor drive
1шт.
9
F19636
PIN
- link
2шт.
10
A42206
SPACER
- rotor
1шт.
11
F19638
ROTOR SET - pump
1шт.
12
F19640
SEAL
- rotor
1шт.
13
F19639
RETAINER
- rotor seal
1шт.
14
F19641
COVER - end
1шт.
15
F19642
BOLT - cover (5/16 x 1-3/4" N.C. hex)
7шт.
16
A40624
SEAL
KIT
1шт.
17
A21145
SNAP RING,1.25, Int, #125
RING, snap, 1.25", Int, #125, thrust washer
1шт.
18
F19645
BUSHING
SEAL - dust, felt
1шт.
19
F19644
SEAL
RETAINER - dust seal
1шт.
20
F19646
LOCK NUT,13/16"-20, Thin
NUT - coupling shaft
1шт.
A35579
PUMP
ASSY. - manual (Ross Gear #P5001), A35579 (includes ref. 25 - 44)
1шт.
25
F82945
BODY
ASSY. - pump, A35579 manual (includes ref. 26 & 27)
1шт.
26
NSS
NOT SOLD SEPARAT
COMMUTATOR - pump body (Order F82945), A35579 manual
1шт.
27
A30588
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W
BEARING - needle, A35579 manual pump
1шт.
28
F19631
PIN
- commutator, A35579 manual pump
1шт.
29
A40735
SHAFT
- coupling, A35579 manual pump
1шт.
30
F19633
NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W
BEARING - needle, thrust, A35579 manual pump
1шт.
31
F19634
BEARING WASHER
RACE - thrust bearing, A35579 manual pump
1шт.
32
F19635
LINK
- rotor drive, A35579 manual pump
1шт.
33
F19636
PIN
- link, A35579 manual pump
2шт.
34
F19637
SPACER
- rotor, A35579 manual pump
1шт.
35
A35786
STATOR
ROTOR SET - pump, A35579 manual
1шт.
36
NLS
NO LONGER SERVICED
SEAL - rotor, A35579 manual pump
1шт.
37
A35787
RETAINER
- rotor seal, A35579 manual pump
1шт.
38
F19641
COVER - end, A35579 manual pump
1шт.
39
F19642
BOLT - cover (5/16 x 1-3/4" N.C. hex), A35579 manual pump
7шт.
40
A40624
SEAL
KIT, A35579 manual pump
1шт.
41
A21145
SNAP RING,1.25, Int, #125
RING, snap, 1.25", Int, #125, thrust washer, A35579 manual pump
1шт.
42
F19645
BUSHING
SEAL - dust, felt, A35579 manual pump
1шт.
43
F19644
SEAL
RETAINER - dust seal, A35579 manual pump
1шт.
44
F19646
LOCK NUT,13/16"-20, Thin
NUT - coupling shaft, A35579 manual pump
1шт.
Выбрано товаров: 42
