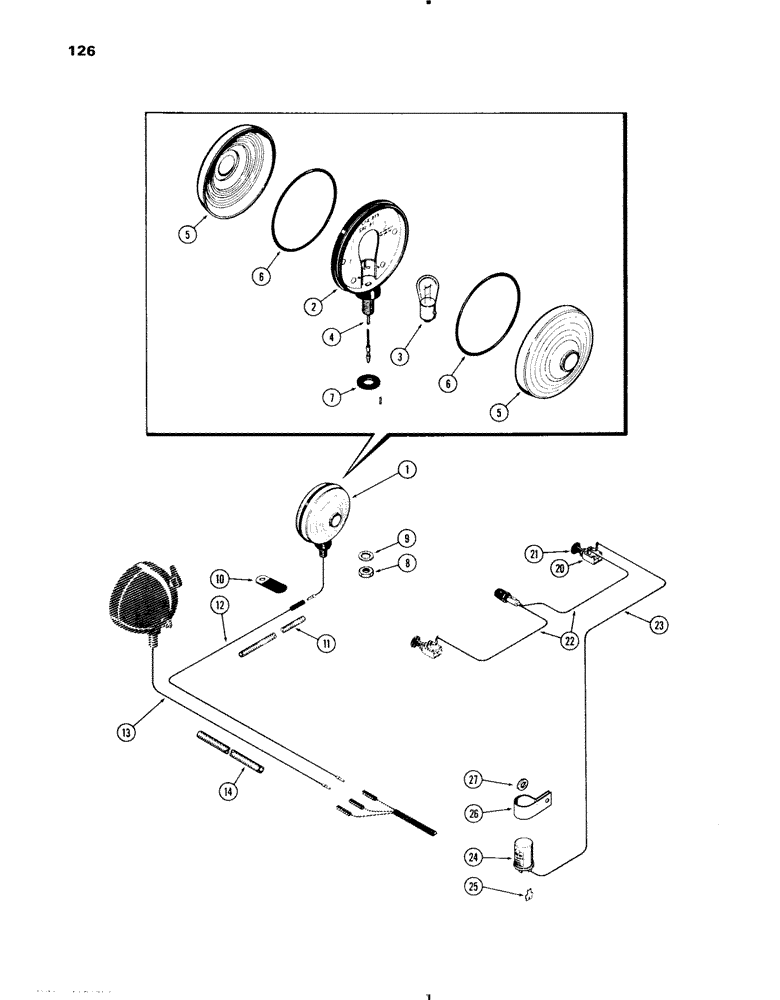

Запчасти Case IH 570 (126) - FLASHING WARNING LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

ASSY. - flasher warning (includes ref. 2 - 7)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A41260

WIRE - lead in

2шт.

5

A41261

LENS

- amber

2шт.

6

A41262

O-RING,3.484" ID x 0.139"

"O" RING - lens (3-1/2 x 3-25/32 x 9/64")

2шт.

7

A41263

GASKET - mounting stud

1шт.

8

129-125

NUT,1/2"-20, G5

Mtg. stud 1/2"-20, G5

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, 1/2" int. Shakeproof

1шт.

10

A22880

CLIP

- terminal shield (17/32" bolt hole)

1шт.

11

A37940

LOOM

- lead to wire (1-1/4" I.D. x 5-1/2")

1шт.

12

A38834

WIRE - main harness to flasher lamp (dark green 33")

1шт.

13

A38833

WIRE - main harness to tail lamp (black 32")

1шт.

14

A11769

LOOM - rear lamp wires (3/8" I.D. x 24")

1шт.

20

A37936

SWITCH

ASSY. - flasher (2 position) (incl Ref 21)

1шт.

21

A37937

KNOB

- switch

1шт.

22

A38180

COMPRESSION SPRING

WIRE ASSY. - flasher switch to fuse & light switch

1шт.

23

A37938

WIRE - switch to flasher unit (dark green 20")

1шт.

24

A34867

FLASHER UNIT

FLASHER - 12 volt

1шт.

25

A34862

KIT

ADAPTER - by-pass, flasher

1шт.

26

A34868

CLAMP

BRACKET - flasher mounting

1шт.

27

195-512

WASHER,#10

- plain, 7/32 x 7/16 x 1/16"

1шт.
