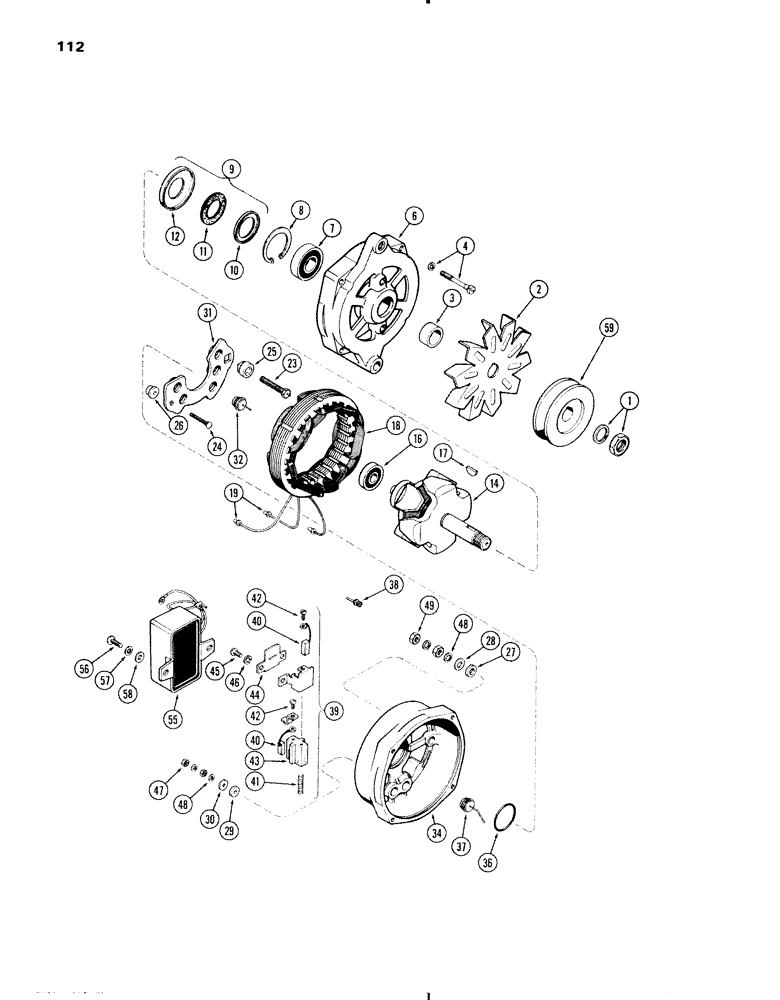

Запчасти Case IH 570 (112) - A42776 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A42776

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite - Eltra Corp. #ALK-6314-S) (Service Only - Does Not Include Regulator Nor Pulley) (includes ref. 1 - 4, 6 - 12, 14, 16 - 19, 23 - 32, 34 and 36 - 49)

1шт.

A38815

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite - Eltra Corp. #ALK-7314) (Production Only - Includes Regulator & Pulley - Order A42776) (includes ref. 1 - 4, 6 - 12, 14, 16 - 19, 23 - 32, 34 and 36 - 49)

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

470, 570, Both S/N 8656925 & Aft.

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A40581

KIT

PACKAGE - nut & washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41081

SPARE PART PACKAGE - bolt, thru (Set of 4 w/washers)

1шт.

6

A42262

HEAD

SPARE PART HEAD ASSY. - drive end (includes ref. 7 - 12)

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

PACKAGE - retainer & seal

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A42774

KIT

ROTOR ASSY - alternator

1шт.

16

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft (Sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42775

STATOR

STATOR ASSY. - alternator

1шт.

19

A41065

KIT

PACKAGE - eyelet, wire end (Set of 6) (includes ref. 23 - 30)

1шт.

A42771

STUD

PACKAGE - terminal stud (includes ref. 23 - 30)

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulation, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulation, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A42773

HEAD (CYLINDER)

PLATE ASSY. - rectifier

1шт.

32

A41075

DIODE

DIODE - positive

3шт.

34

A42772

SPARE PART HEAD ASSY. - slip ring end (includes ref. 36, 37 & 38)

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A41071

DIODE

DIODE - negative

4шт.

38

A42266

KIT

PACKAGE - plugs (Set of 10)

1шт.

39

A42495

HOLDER

HOLDER ASSY. - brush (includes ref. 40 - 43)

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH BRUSH SET - alternator (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING - brush set (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - brush holder cover

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - machine (#10-24 x 3/8")

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - (#10 N.F. hex, jam)

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - ( hex) 1/4"-28

2шт.

55

A42098

VALVE

REGULATOR ASSY. - voltage

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - machine, regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42777

PULLEY

PULLEY - drive, alternator

1шт.
