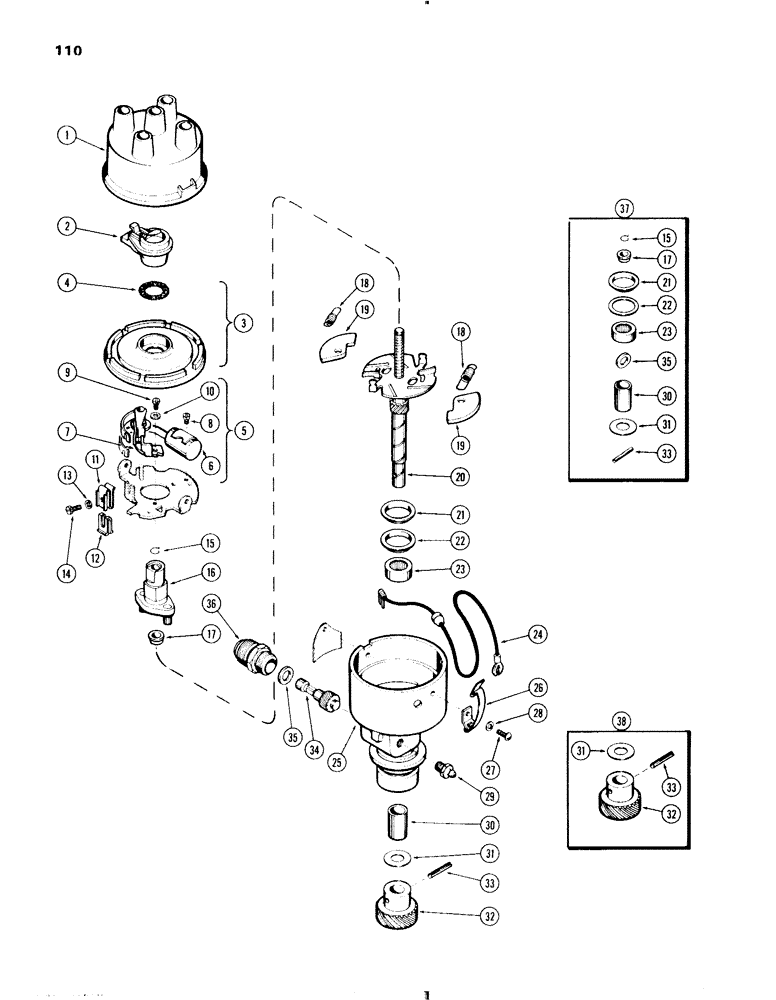

Запчасти Case IH 570 (110) - A18461 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS

A18461

DISTRIBUTOR

ASSY. - (Eltra #IBT-4403B) (includes ref. 1 - 36)

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY. - seal (includes ref. 4)

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - felt, shaft seal

1шт.

5

A40330

PLATE

ASSY. - breaker (includes ref. 6 & 7)

1шт.

A40930

KIT

CONTACT KIT - breaker (includes ref. 6 & 7)

1шт.

6

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

7

NSS

NOT SOLD SEPARAT

BREAKER - points (Order A40930)

1шт.

8

177-56

SCREW - condenser, #6-32 x 13/16" fill. hd.

1шт.

9

177-72

SCREW - breaker points, #8-32 x 3/16" fill. hd.

1шт.

10

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - breaker retaining

1шт.

12

NSS

NOT SOLD SEPARAT

INSULATOR - breaker clip

1шт.

13

195-6

WASHER,#6

- plain, 5/16 x 5/16 x 3/64"

1шт.

14

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- retainer, #6-32 x 5/16" hex hd.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, cam assy. (See ref. 37)

1шт.

16

A24762

CAM ASSY.

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - cam (See ref. 37)

1шт.

18

A24778

SPRING KIT

- governor (Set of 2)

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT - governor

2шт.

20

A25979

SHAFT

- drive (includes tach. drive gear)

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner (See ref. 37)

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer (See ref. 37)

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle (See ref. 37)

1шт.

24

A25965

HARNESS

WIRE - lead (12")

1шт.

25

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order A18461)

1шт.

26

A40329

SPRING

CLAMP KIT - cover (Set of 2)

1шт.

27

169-131

BOLT,Fil Hd, 8" - 32 x 5/16"

SCREW - #8-32 x 5/16" fill. hd.

2шт.

28

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

29

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4"-28 x 90 deg.

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - bronze (See ref. 37)

2шт.

31

NSS

NOT SOLD SEPARAT

WASHER - thrust, lower (See ref. 38)

1шт.

32

NSS

NOT SOLD SEPARAT

GEAR - drive (See ref. 38)

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - roll, gear to shaft (See ref. 37 or 38)

1шт.

34

A24761

SHAFT

& GEAR - tachometer drive

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive (See ref. 37)

1шт.

36

A24781

HOUSING - tach. drive gear & shaft

1шт.

37

A40326

PACKAGE, REPAIR

REPAIR KIT - drive shaft

1шт.

38

A40323

GEAR

REPAIR KIT - drive gear

1шт.
