Запчасти Case IH 570 (104) - ELECTRICAL EQUIPMENT AND WIRING, 570 (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

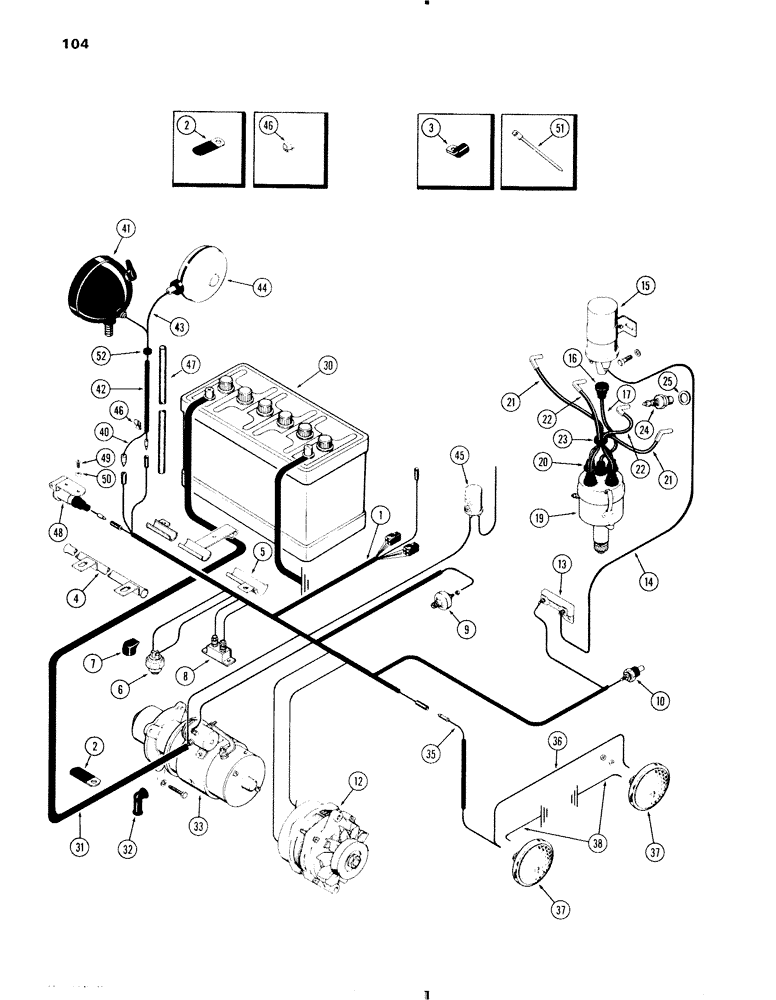

Схема запчастей Case IH 570 - (104) - ELECTRICAL EQUIPMENT AND WIRING, 570 (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
40
46
44
37
1
22
51
2
37
50
28
25
35
3
43
15
20
31
5
10
45
14
13
2
49
4
23
52
30
36
8
48
24
6
38
22
17
47
19
41
16
7
46
12
9
21
33
42
32

Артикул

Название

Примечание

Количество

1

A38835

HARNESS

HARNESS ASSY. - main wire (engine and lights)

1шт.

2

A37179

CLIP

CLIP - harness (13/32" hole bend as req.)

2шт.

3

A27042

SPARE PART CLIP - harness to cover (17/32" hole)

1шт.

4

A38826

CONDUIT

CONDUIT - wire harness (on trans. case)

1шт.

5

A38438

SPARE PART CONDUIT - wire harness (on fuel tank)

1шт.

6

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

7

A61028

BOOT

BOOT - safety switch

1шт.

8

A22877

BREAKER,40A

BREAKER - circuit

1шт.

9

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

10

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

12

A42776

ALTERNATOR

ALTERNATOR - (See Figures 108 & 112)

1шт.

13

A24504

RESISTOR

RESISTOR - ballast (See Figure 108)

1шт.

14

A38832

ELECTRICAL WIRE

WIRE WIRE - resister to coil (white 7")

1шт.

15

G44817

COIL

COIL - ignition (See Figure 108)

1шт.

16

G46803

BOOT

NIPPLE - distributor, Serial Range: wire-coil

1шт.

17

CASA30038

CABLE

- coil to distributor (12")

1шт.

19

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR - (See Figure 108 & 110)

1шт.

20

A29338

COVER

NIPPLE - wires to distributor cap

5шт.

21

A29994

CABLE

WIRE - #1 & #4 spark plug (10-1/2")

2шт.

22

A30018

CABLE

WIRE - #2 & #3 spark plug (8-1/2")

2шт.

23

A30109

WASHER

WASHER - harness, distributor wires

1шт.

24

G44840

SPARK PLUG

PLUG - spark (includes ref. 25)

4шт.

25

G46839

GASKET

GASKET - seat

1шт.

30

F22631

DRY BATTERY

BATTERY - (See Figure 118)

1шт.

31

A27987

CABLE

CABLE - battery to starter solenoid (44")

1шт.

32

A21753

CAP

NIPPLE -, Serial Range: cable-solenoid

1шт.

33

A36584

STARTING MOTOR

STARTER ASSY. - (See Figures 108 & 114)

1шт.

33

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

33

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

35

A11943

SPARE PART WIRE - harness to head lamp (black 21")

1шт.

36

A11764

SPARE PART WIRE - jumper, head lamp (black 16")

1шт.

37

A24572

LAMP

LAMP KIT - head (See Figure 122)

2шт.

38

A33439

SPARE PART WIRE - ground, head lamp (black 12")

2шт.

40

A38833

SPARE PART WIRE - harness to tail & flood lamp (black 32")

1шт.

41

A20965

LAMP BASE

LAMP - tail & flood, combination (See Figure 122)

1шт.

42

A11769

LOOM - rear lamp wires (24")

1шт.

43

A38834

SPARE PART WIRE - harness to flasher lamp (dark green 33")

1шт.

44

A34853

LAMP

LAMP - flasher (See Figure 126)

1шт.

45

A34867

FLASHER UNIT

FLASHER - warning lamp (See Figure 126)

1шт.

46

G46047

SPARE PART CLIP -, Serial Range: wire-fender

3шт.

47

A37940

LOOM

LOOM - flasher lamp wire (5-1/2")

1шт.

48

A8170

SOCKET

SOCKET - electric outlet, auxiliary

1шт.

49

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

SCREW - #10-32 x 1/2" rd. hd.

2шт.

50

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10-32 hex (includes lockwasher)

2шт.

51

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP STRAP - plastic, wires & tubes

2шт.

52

A27338

GROMMET

GROMMET - rubber, wire through fender

1шт.

Выбрано товаров: 46
