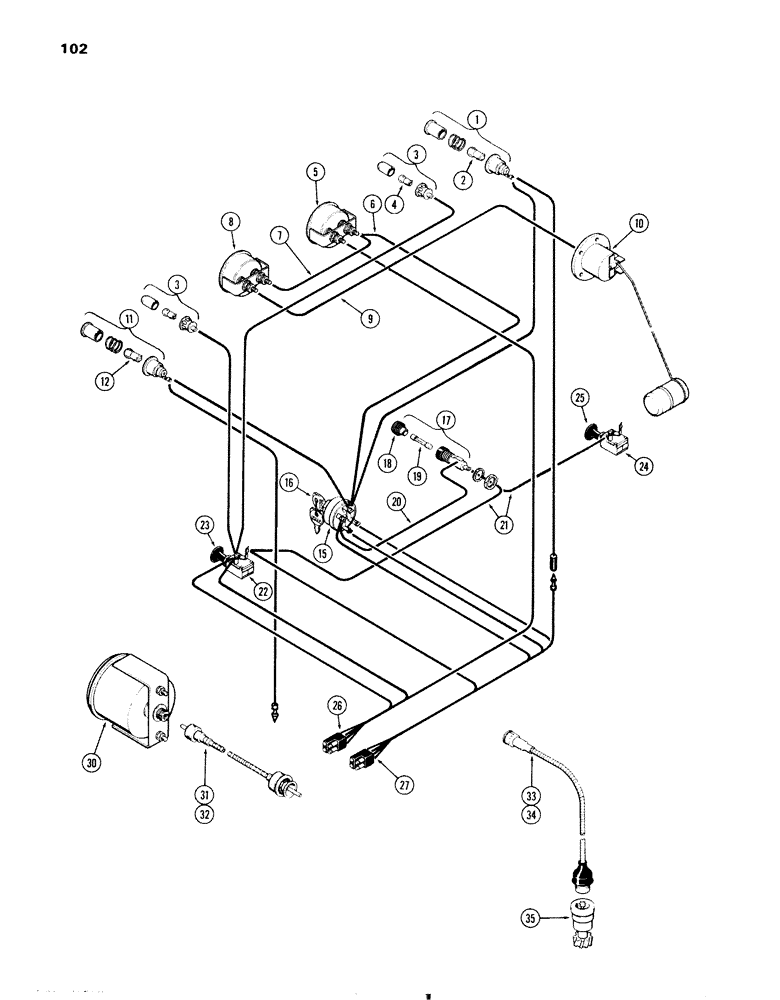

Запчасти Case IH 570 (102) - INSTRUMENTS AND WIRING, 570-SERIES (04) - ELECTRICAL SYSTEMS

1

A38816

LAMP

ASSY. - alternator warning (includes ref. 2)

1шт.

2

F21950

BULB - replacement (#431 red)

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - panel illuminating (includes ref. 4)

2шт.

4

A22349

BULB

- replacement (#363)

1шт.

5

A24080

GAUGE

ASSY. - engine temp.

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to st. switch (green 15")

1шт.

7

A11783

ELECTRICAL WIRE

WIRE - temp. gauge to fuel gauge (blue 13")

1шт.

8

A24079

GAUGE ASSY.

GAUGE - fuel

1шт.

9

A11783

ELECTRICAL WIRE

WIRE - sender to fuel gauge (blue 13")

1шт.

10

A23480

SENDER UNIT

SENDER - fuel gauge (See Figures 56 & 88)

1шт.

11

A24084

LAMP

ASSY. - engine oil pressure (includes ref. 12)

1шт.

12

A24354

BULB

- replacement (#57 red)

1шт.

15

A24510

SWITCH

ASSY - starting w/keys (diesel eng) (includes ref 16)

1шт.

15

A24511

SWITCH

ASSY - starting w/key (Gas) (spark ignition eng.) (includes ref. 16)

1шт.

16

A24509

KEY

- ignition switch (Set of 2)

1шт.

17

A22874

HOLDER

ASSY. - fuse (includes ref. 18)

1шт.

18

A10958

CAP

- fuse holder

1шт.

19

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

20

A22875

ELECTRICAL WIRE

WIRE - fuse to start switch

1шт.

21

A38180

COMPRESSION SPRING

WIRE ASSY. - fuse to light switch & flasher switch

1шт.

22

G13142

IGNITION SWITCH

SWITCH ASSY. - head light (includes ref. 23)

1шт.

23

G13141

KNOB

- light switch

1шт.

24

A37936

SWITCH

ASSY. - flasher light (2 positions) (incl Ref 25)

1шт.

25

A37937

KNOB

- flasher switch

1шт.

26

A21613

HARNESS

ASSY. - instrument panel (w/black plug)

1шт.

27

A24076

PLUG

HARNESS ASSY. - instrument panel (w/red plug)

1шт.

30

A37767

TACHOMETER

- 4 speed trans. (includes hourmeter)

1шт.

30

A37768

TACHOMETER

- 8 speed trans. (includes hourmeter)

1шт.

31

G45121

HOUSING

CABLE ASSY. - tach. drive, 49" (spark ignition eng.) (includes ref. 32)

1шт.

32

A24523

KIT

CABLE - replacement kit

1шт.

33

A39043

CABLE

ASSY. - tach. drive, 52-3/8" (diesel eng.) (includes ref. 34)

1шт.

34

A24523

KIT

CABLE - replacement kit

1шт.

35

A38942

DRIVE ASSY.

- tach. cable to camshaft (diesel eng.)

1шт.
