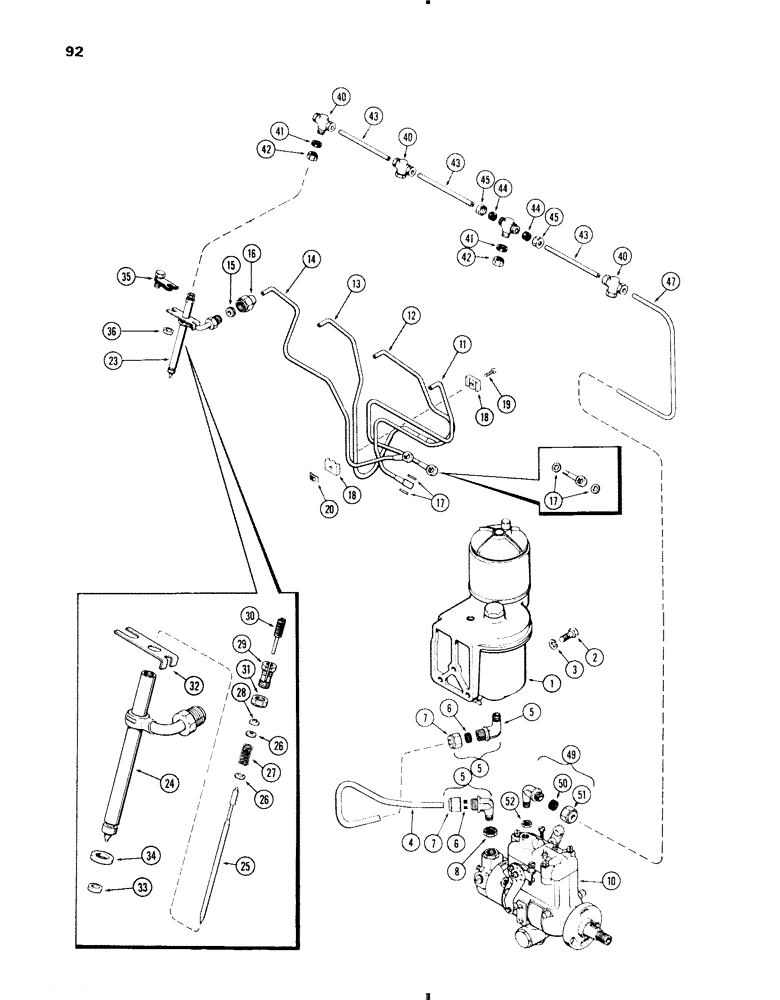

Запчасти Case IH 570 (092) - FUEL INJECTION SYSTEM, 470-570 (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

A35735

FILTER

ASSY. - fuel (Repairs Page 95)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T. (includes ref. 6 & 7)

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.

8

A38161

LOCK NUT

- sealing type (1/4" P.T.)

1шт.

10

G37030

PUMP ASSY. - injection (470) (Repairs Page 95)

1шт.

10

A35773

PUMP, FUEL INJECTION

PUMP ASSY. - injection (570) (Repairs Page 95)

1шт.

11

A41391

TUBE

ASSY. - #1 nozzle (includes ref. 15, 16 & 17)

1шт.

12

A41392

TUBE

ASSY. - #2 nozzle (includes ref. 15, 16 & 17)

1шт.

13

A41393

TUBE

ASSY. - #3 nozzle (includes ref. 15, 16 & 17)

1шт.

14

A41394

TUBE

ASSY. - #4 nozzle (includes ref. 15, 16 & 17)

1шт.

15

A37850

PIPE FITTING

SLEEVE - ferrule

1шт.

16

A37851

NUT

- tube

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER -, Serial Range: tube-pump

2шт.

18

A58709

BRACKET

CLAMP - injection tube

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10-24 x 1" rd. hd.

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat Tinnerman

2шт.

23

A37836

NOZZLE

ASSY. - fuel injector (includes ref. 24 - 34)

4шт.

A140829R

REMAN-INJECT NOZZLE

470, 570, BOTH S/N 8656925 & AFTER (1/69-12/72), Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order ref. 23)

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order ref. 23)

1шт.

26

A41401

SEAT

- pressure spring

2шт.

27

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

28

A41407

WASHER

- ball type

1шт.

29

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

30

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

31

A42424

LOCK NUT

- lock

1шт.

32

A41405

PLATE

- locating

1шт.

33

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

34

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

35

A37837

CLAMP

ASSY. -, Serial Range: nozzle-head

4шт.

36

A37839

SPACER

- nozzle clamp

4шт.

40

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

4шт.

41

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

4шт.

42

A58961

NUT

-, Serial Range: tee-nozzle

4шт.

43

A38644

TUBE

- nozzle leak-off (1/4" O.D. x 3-7/8")

3шт.

44

222-102

SLEEVE,1/4" Tube

Leak-off tube 1/4" Tube

8шт.

45

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube, 1/4" O.D.

8шт.

47

A38158

TUBE

-, Serial Range: leak-off-pump

1шт.

49

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- leak-off tube to pump, 1/4" tube x 1/8" P.T. (includes ref. 50 & 51)

1шт.

50

222-102

SLEEVE,1/4" Tube

1шт.

51

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

52

A38160

LOCK NUT

- sealing type, 1/8" P.T.

1шт.
