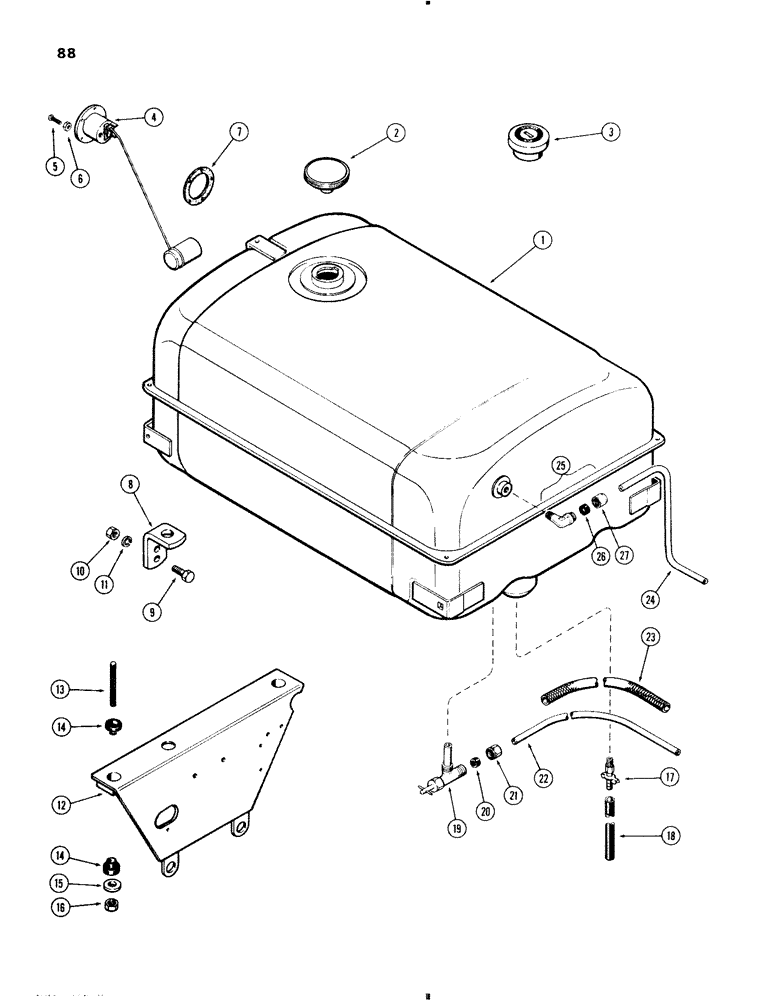

Запчасти Case IH 570 (088) - FUEL TANK, 570 (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

A36561

TANK

- fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- lock type (includes keys)

1шт.

4

A23480

SENDER UNIT

SENDER - fuel gauge, electrical

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

-, Serial Range: sender-tank

1шт.

8

A36177

SUPPORT - rear, fuel tank

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

A38818

SUPPORT - front, fuel tank

1шт.

13

A8373

STUD

- tank mounting (3/8" N.C. - N.F. x 2-7/16")

3шт.

14

A7336

CUSHION

- rubber, tank mounting

6шт.

15

B18261

WASHER

- 13/32 x 1-3/8 x 1/16" plain

3шт.

16

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" N.F. hex

3шт.

17

217-107

VALVE

- drain, water trap (1/8" P.T.)

1шт.

18

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain valve 0.25" ID x 15.00", SAE SC716 CS

1шт.

19

A7313

VALVE

ASSY. - needle (includes ref. 20 & 21)

1шт.

20

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

21

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.

22

A35630

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

23

A27241

LOOM

- fuel line (7/16" O.D. x 14-1/2")

1шт.

24

A37899

TUBE

LINE - leak-off return

1шт.

25

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- return line, 1/4" tube x 1/4" P.T. (includes ref. 26 & 27)

1шт.

26

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

27

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.
