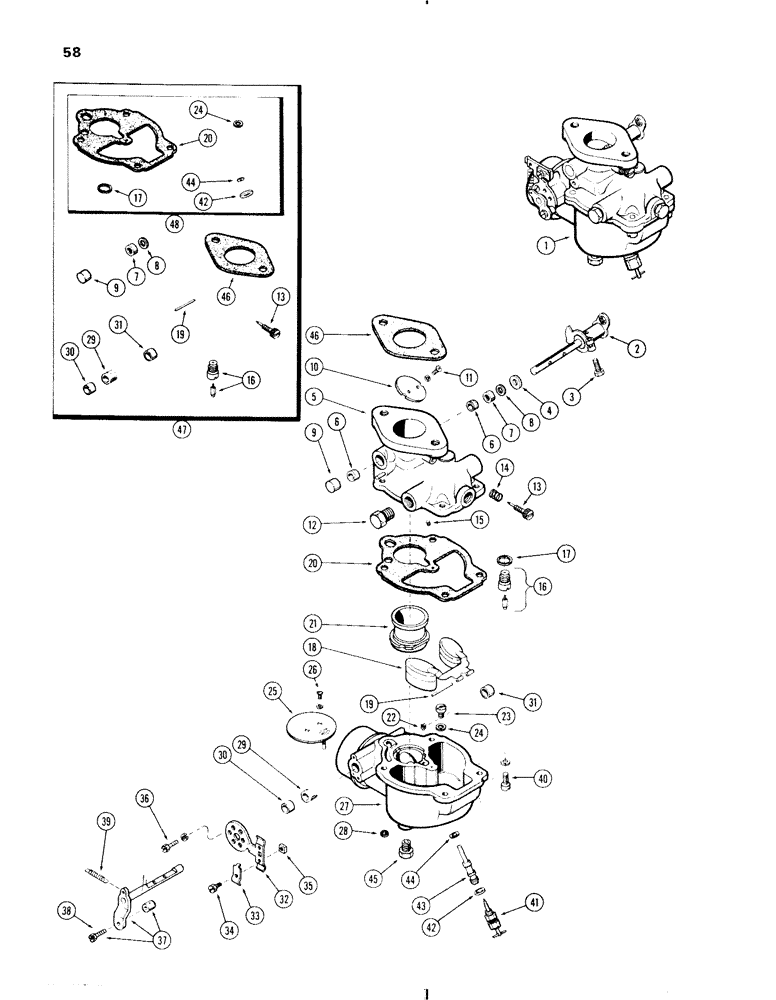

Запчасти Case IH 570 (058) - CARBURETOR, 570 (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A37173

CARBURETOR

- (Zenith #13106) (includes ref. 2 - 46)

1шт.

2

B51245

SHAFT

ASSY. - throttle (includes ref. 3)

1шт.

3

B51581

SCREW - stop

1шт.

4

A40933

WASHER

- spacer, throttle shaft

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A37173)

1шт.

6

A40609

BUSHING

- throttle shaft

2шт.

7

B51528

SEAL

- throttle shaft

1шт.

8

B59360

RETAINER

WASHER - seal retainer (9/32 x 1/2")

1шт.

9

A40612

PLUG

- throttle shaft hole

1шт.

10

B51211

PLATE

- throttle

1шт.

11

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle plate

2шт.

12

B51541

PLUG

- fuel inlet

2шт.

13

B51265

HOSE

NEEDLE - idle adjusting

1шт.

14

B51404

SPRING

- idle needle

1шт.

15

A25174

JET

- idle

1шт.

16

A41086

VALVE SEAT

VALVE & SEAT - fuel (matched) (includes ref. 17)

1шт.

17

B51618

WASHER

- fiber, valve seat

1шт.

18

B51359

FLOAT

- fuel bowl

1шт.

19

B51433

AXLE

SHAFT - float

1шт.

20

B51471

GASKET

-, Serial Range: bowl-body

1шт.

21

A25187

VENTURI

1шт.

22

B51340

JET

- well vent

1шт.

23

A25173

JET

- main

1шт.

24

B51619

WASHER

- main jet

1шт.

25

B51365

PLATE

- choke

1шт.

26

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

27

B51180

BOWL

ASSY. - fuel (includes ref. 28 - 31)

1шт.

28

B51442

FILTER

DISC - drain

1шт.

29

B51533

WASHER

- packing, choke shaft

2шт.

30

B51439

RETAINER

- packing

1шт.

31

B51509

PLUG

- choke shaft hole

1шт.

32

B51400

SUPPORT

BRACKET ASSY. - choke support (includes ref. 33, 34 & 35)

1шт.

33

B51403

CLIP

- choke rod

1шт.

34

B51580

SCREW

- clip

1шт.

35

129-76

SQUARE NUT,#8 - 36

- clip screw, #8-32 sq.

1шт.

36

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

1шт.

37

B59632

SHAFT

ASSY. - choke (includes ref. 38)

1шт.

38

B51579

SCREW - swivel, choke rod

1шт.

39

B51412

SPRING

- return, choke

1шт.

40

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

41

B51330

ADJUSTER

ADJUSTMENT ASSY. - main jet

1шт.

42

B51618

WASHER

- adj. assy.

1шт.

43

B51323

JET

- discharge

1шт.

44

B51610

WASHER

- discharge jet

1шт.

45

B51541

PLUG

- drain

1шт.

46

G46826

GASKET

- carb. to manifold (shipped w/carb.)

1шт.

47

A41085

KIT

- repair (includes ref. 48)

1шт.

48

B51496

GASKET

CASKET KIT - carburetor service

1шт.
