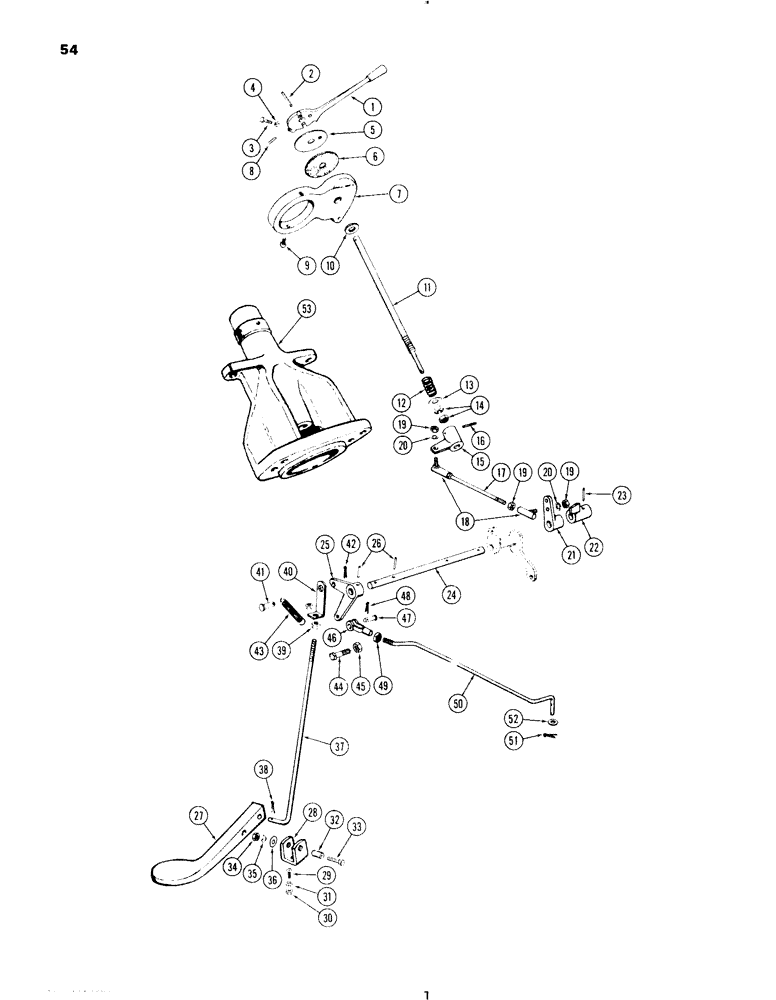

Запчасти Case IH 570 (054) - THROTTLE LINKAGE, 570 (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A38018

LEVER

- hand

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Lever stop Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

A57029

DISC

- steel friction

1шт.

6

A11969

GASKET

DISC - asbestos friction

1шт.

7

A35706

SUPPORT - hand lever (w/dual frt. wheel)

1шт.

8

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, , Stop 1/4" x 1 1/8", Slotted

1шт.

9

A27892

SET SCREW,1/4" - 20 x 7/8"

- set (1/4 x 5/8" N.C. sq.hd. dog pt.)

2шт.

10

A32838

WASHER

- spacer (17/32 x 1-1/4 x 5/64" plain)

1шт.

11

A36512

SHAFT

- hand lever

1шт.

12

A34113

SPRING

- tension

1шт.

13

195-33

WASHER,1/2"

- plain, 17/32 x 1-1/16 x 3/32"

1шт.

14

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NF hex

2шт.

15

A35644

LEVER - lower

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

17

A35642

ROD

- intermediate

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

- intermediate shaft

2шт.

19

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

A35638

LEVER

- actuating, cross shaft

1шт.

22

A35639

LEVER

- override, foot throttle

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

A35637

SHAFT - cross, throttle control

1шт.

25

A35633

LEVER - throttle rod

1шт.

26

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

27

G15692

PEDAL

- foot, throttle control

1шт.

28

G15694

BRACKET

- pivot, foot pedal

1шт.

29

77-512

SCREW

- 5/16 x 3/4" N.C. Truss hd.

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

31

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

32

G49618

BUSHING

- pivot, foot pedal

1шт.

33

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

34

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

195-21

WASHER,5/16"

(11/32 x 11/16 x 5/64" 5/16"

1шт.

37

A35830

ROD

- foot throttle

1шт.

38

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

40

G16898

LINK - foot throttle rod

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

42

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

43

B18277

SPRING

- return

1шт.

44

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8 x 3" N.F. hex

1шт.

45

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

2шт.

46

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod

1шт.

47

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, 1/4"

1шт.

48

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

49

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

50

A35634

ROD

- throttle control

1шт.

51

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

52

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

1шт.

53

A36525

COLUMN - steering (w/dual frt. wheel)

1шт.
