Запчасти Case IH 570 (052) - GOVERNOR AND TIMING GEAR COVER, 570 (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

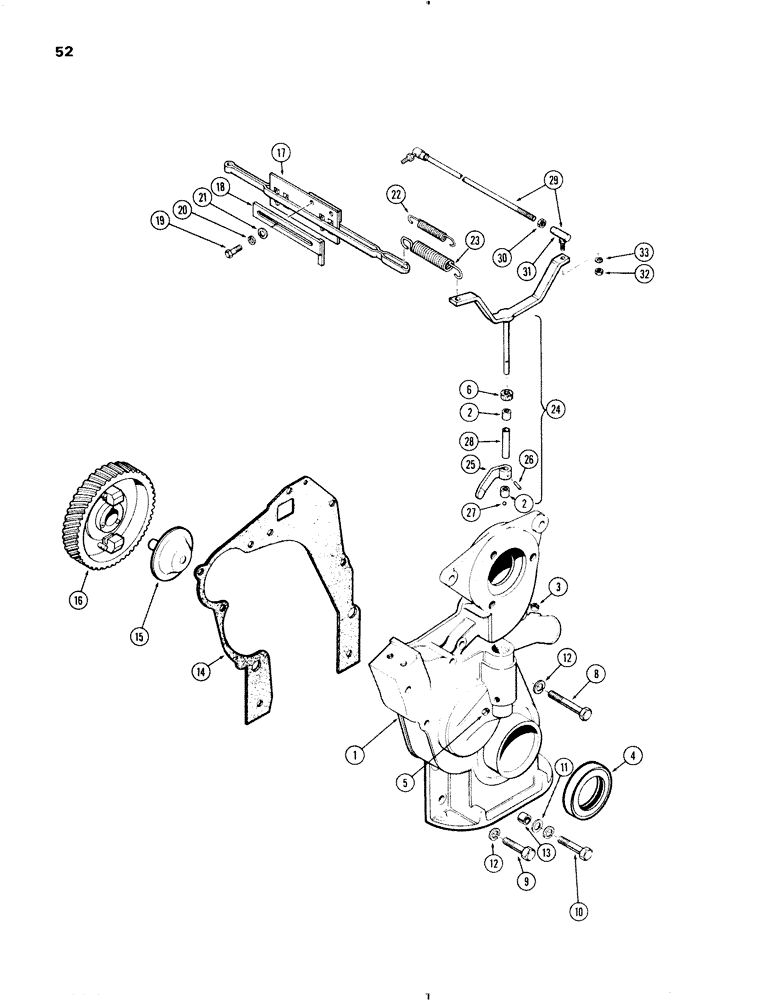

Схема запчастей Case IH 570 - (052) - GOVERNOR AND TIMING GEAR COVER, 570 (159) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
30
5
15
16
3
2
10
14
24
31
6
2
20
22
12
28
26
18
9
17
33
29
8
25
21
19
23
11
27
4
13
1
32
12

Артикул

Название

Примечание

Количество

1

A38913

COVER

ASSY. - timing gear (includes ref. 2 - 5)

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft

2шт.

3

221-1843

PLUG

- pipe, 3/8" socket hd.

1шт.

4

A36609

OIL SEAL

- oil, crankshaft

1шт.

5

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

6

A30011

SEAL

PLUG - dust, governor shaft

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

1шт.

11

195-25

WASHER,3/8"

5шт.

11

G49400

WASHER

- plain, 13/32 x 1-5/32 x 5/64"

1шт.

12

92-6

LOCK WASHER,3/8"

10шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

A38226

GASKET

-, Serial Range: cover-block

1шт.

15

A29957

SHAFT

ASSY. - governor

1шт.

16

G37066

GEAR

- camshaft (includes governor weights)

1шт.

17

G45793

ROD

- governor control

1шт.

18

G45792

STOP

GUIDE - control rod

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

195-521

WASHER,5/16", SAE

- plain, 11/32 x 11/16 x 5/64" (pltd.)

2шт.

22

A37005

SPRING

- inner, governor control (Black)

1шт.

23

G48515

SPRING

- outer, governor control (blue)

1шт.

24

A30125

SHAFT

& LEVER ASSY. - governor control (includes ref. 25 & 26)

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER - (Order A30125)

1шт.

26

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

27

211-5

BALL,3/16" Dia

- thrust, governor shaft (3/16" steel)

1шт.

28

A30012

SPACER

- thrust, governor shaft

1шт.

29

G45310

ROD ASSY.

- governor arm to carburetor (includes ref. 30 & 31)

1шт.

30

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

32

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Выбрано товаров: 34
