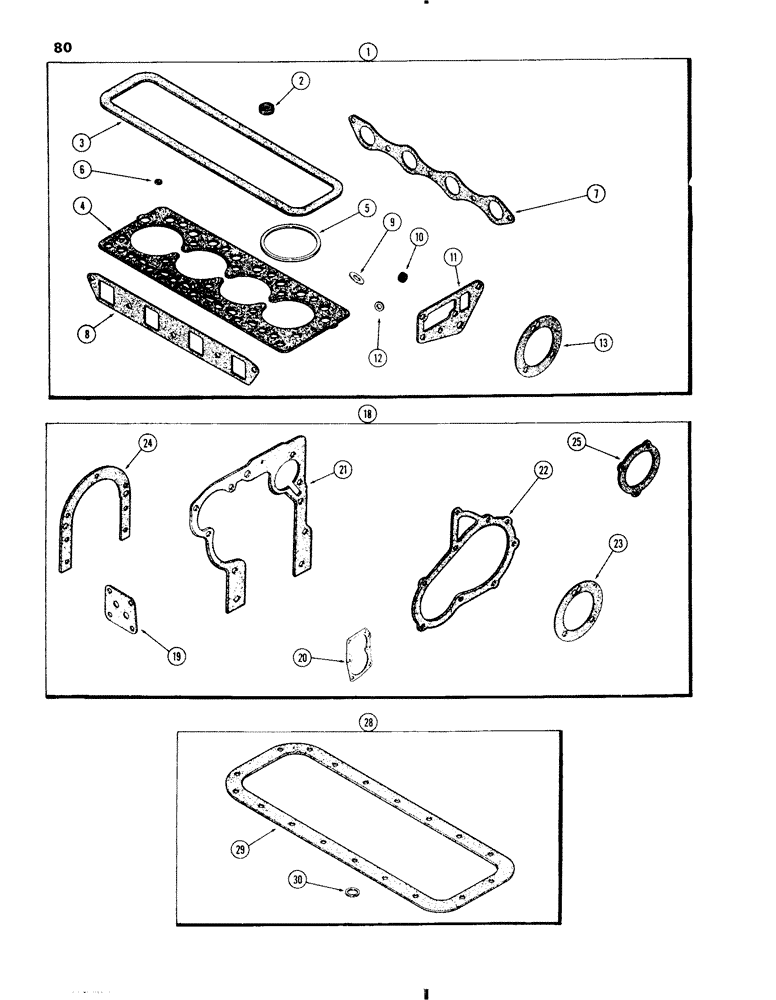

Запчасти Case IH 570 (080) - ENGINE GASKET KITS, 470-570 (188) DIESEL ENGINE (02) - ENGINE

1

A42001

GASKET

VALVE GRIND GASKET KIT (includes ref. 2 - 13)

1шт.

2

G46867

GROMMET

- rubber, valve cover

2шт.

3

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

4

13490891C1

- cylinder, Serial Range: head-block

1шт.

5

A38639

RING

- fire, cyl. sleeve (Std.)

4шт.

6

G46851

SEAL

- rubber, valve stem (19/64 x 7/16 x 3/32")

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- nozzle (Not used this unit)

4шт.

10

222-101

SLEEVE,3/16" Tube

- leak-off, 3/16" O.D. (Not used this unit)

4шт.

10

222-103

SLEEVE,5/16" Tube

- fuel line (Not used this unit) 5/16" Tube

4шт.

11

A38084

GASKET,1.27mm Thk

- water outlet

1шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

GASKET - injection, Serial Range: tube-pump

8шт.

13

A38083

GASKET

- water pump

1шт.

18

A41426

KIT

CYLINDER BLOCK GASKET KIT (includes ref. 19 - 25)

1шт.

19

G46854

GASKET

- oil filter bracket (Not used this unit)

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover

1шт.

22

G46859

GASKET

- inj. pump drive cover

1шт.

23

A38083

GASKET

- water pump

1шт.

24

A38196

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- hydraulic steering pump

1шт.

28

A40712

KIT

OIL PAN GASKET KIT (includes ref. 29 & 30)

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order A40712)

1шт.

30

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.
