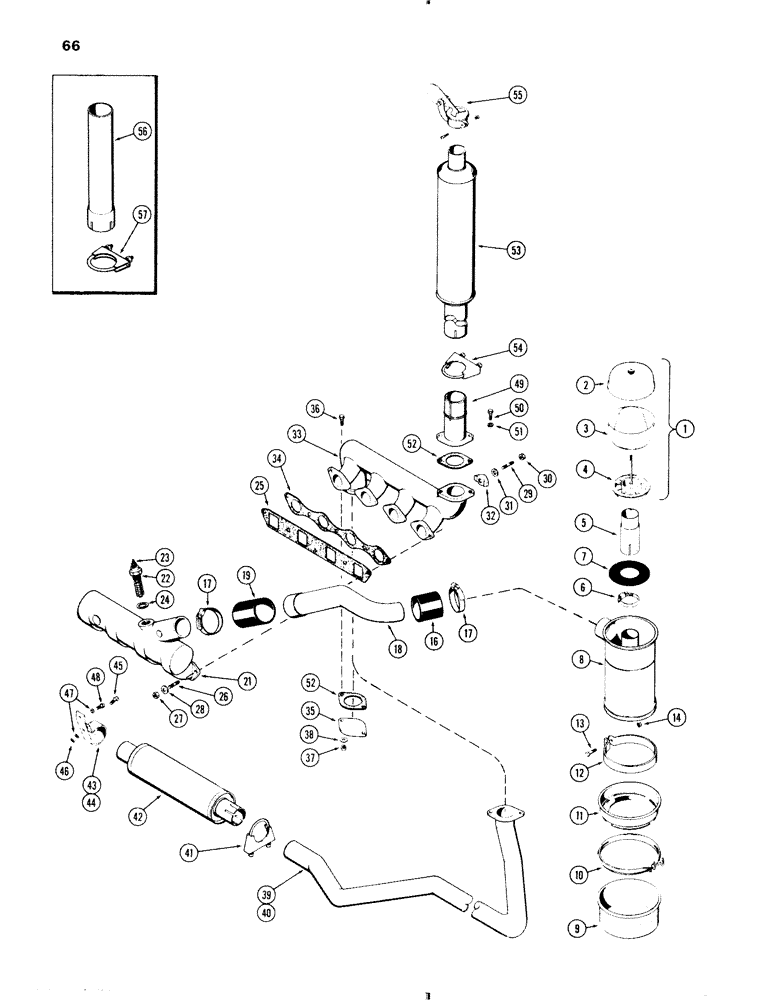

Запчасти Case IH 570 (066) - AIR CLEANER-MANIFOLD-MUFFLER, 570 (188) DIESEL ENGINE (02) - ENGINE

1

A24439

CLEANER

PRE-CLEANER ASSY. (includes ref. 2, 3 & 4)

1шт.

2

73187

COVER

1шт.

3

365413R1

BOWL

BODY - plastic

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY.

1шт.

5

A24437

EXTENSION

- pipe, air cleaner

1шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

extension #36, 1.81/2.75 Type F Worm

1шт.

7

A36856

SHIELD

- extension opening

1шт.

8

G45260

AIR CLEANER ASSY. (includes ref. 9, 10 & 11)

1шт.

9

R15279

CUP ASSY.

CUP - oil, outer

1шт.

10

A8297

CLAMP

- oil cup

1шт.

11

R15280

CUP

- oil, inner

1шт.

12

G16898

BAND - mounting, air cleaner

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- mach., 1/4 x 3/4" N.C. rd.hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Tube to air cleaner 2.25" ID x 3.00", SAE 20R2

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 x 3-1/4"

4шт.

18

G46270

TUBE - air cleaner to manifold 2.25" OD

1шт.

19

A30098

HOSE,2.50" ID x 2.81", SAE 20R2 CLASS R

RADIATOR HOSE, , Tube to Manifold 2.50" ID x 2.81", SAE 20R2 CLASS R

1шт.

21

A35781

MANIFOLD - intake

1шт.

22

A37775

HEATER

- intake manifold

1шт.

23

129-503

NUT,1/4"-20, Brass

4шт.

24

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

25

G46871

GASKET

- intake manifold

1шт.

26

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

4шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex (intake manifold)

5шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, (Intake manifold) 3/8"

5шт.

29

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

30

131-903

NUT,3/8"-16

NUT, LOCK, (Seez-Pruf) 3/8"-16

5шт.

31

195-25

WASHER,3/8"

5шт.

32

A35028

CLAMP

- manifold

6шт.

33

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

34

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

35

A38188

PLATE

COVER - exhaust opening

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

37

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

2шт.

38

195-25

WASHER,3/8"

2шт.

39

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, underneath (Std. 4 Wheel)

1шт.

40

A36910

PIPE

- exhaust, underneath (Gen. Purpose)

1шт.

41

A27077

CLAMP

- pipe to muffler (2-5/16")

1шт.

42

G45287

MUFFLER

- underneath

1шт.

43

A36909

BRACKET

CLAMP - muffler rear (Std. 4 Wheel)

1шт.

44

A35178

BRACKET

CLAMP - muffler rear (Gen. Purpose)

1шт.

45

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

47

92-5

LOCK WASHER,5/16"

2шт.

48

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

49

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

G46853

MANIFOLD GASKET

- exhaust outlet

2шт.

53

A39022

MUFFLER

- upright

1шт.

54

A13240

CLAMP,2-5/8" ID

- muffler to outlet (2-1/2")

1шт.

55

G49048

WASHER

CAP - weather

1шт.

56

A39021

EXTENSION

- upright muffler (w/canopy)

1шт.

57

A39019

CLAMP

- extension to muffler (2-1/8") (w/canopy)

1шт.
