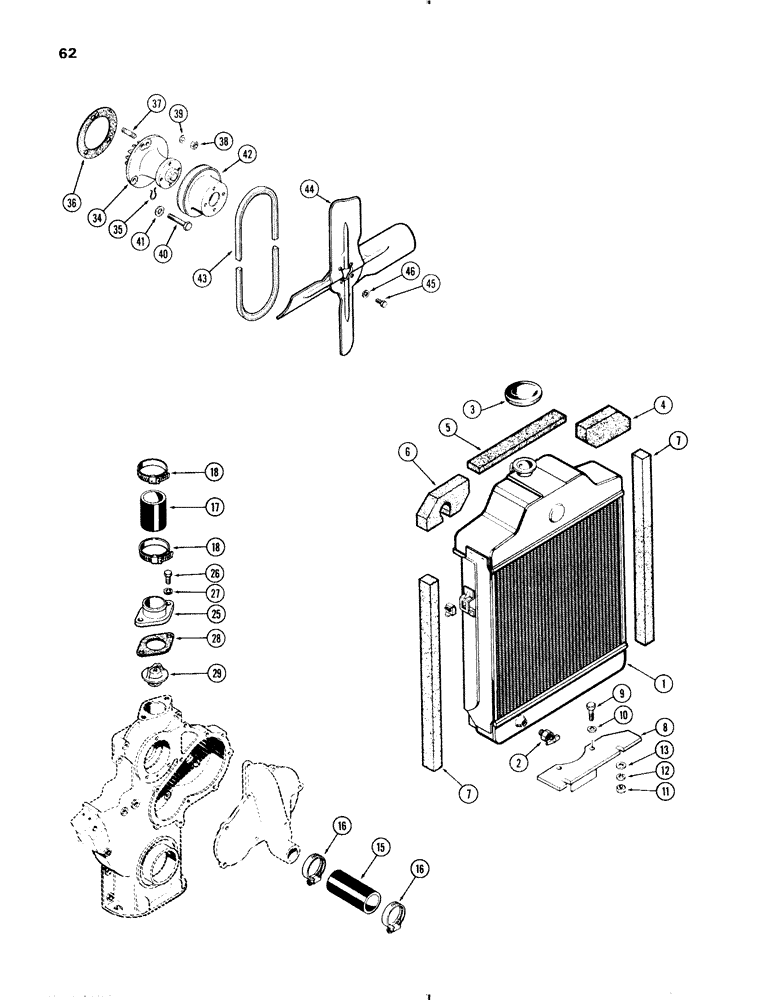

Запчасти Case IH 570 (062) - ENGINE COOLING SYSTEM, 570 (188) DIESEL ENGINE (02) - ENGINE

1

G45266

SPARE PART RADIATOR

1шт.

2

217-103

COCK, DRAIN

COCK - drain, 1/4" P.T.

1шт.

3

G45179

CAP

CAP - radiator

1шт.

4

G46278

BAFFLE

BAFFLE - L.H. top, radiator

1шт.

5

G46280

BAFFLE

BAFFLE - top center, radiator

1шт.

6

G46279

BAFFLE

BAFFLE - R.H. top, radiator

1шт.

7

G46281

SPARE PART BAFFLE - radiator side

2шт.

8

A35796

SUPPORT

SUPPORT - radiator

1шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

11

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex

2шт.

12

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

13

195-25

WASHER,3/8"

WASHER, 3/8"

2шт.

15

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

17

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

3шт.

25

G2144

FITTING

CONNECTION - water outlet

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

28

G46907

GASKET

GASKET -, Serial Range: connection-cover

1шт.

29

A57641

THERMOSTAT

THERMOSTAT - (175 to 182 F)

1шт.

O

1шт.

34

A37758

PUMP

PUMP ASSY. - water (includes ref. 35 & 36)

1шт.

34

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

34

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Pump Assy

1шт.

34

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

34

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

34

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

35

A30067

RING

RING - retainer

1шт.

36

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

37

A29433

STUD

STUD - pump to cover (3/8" N.C. x 1")

2шт.

38

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

2шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

40

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - pump to cover, 3/8 x 2-3/4" N.C. hex

1шт.

41

A22317

WASHER

WASHER - copper, 29/64 x 9/16 x 3/64"

1шт.

42

G11339

PULLEY

PULLEY - drive belt, fan & pump

1шт.

43

A38824

BELT

Fan and Alternator Drive

1шт.

44

G45243

FAN

FAN - (18" across)

1шт.

45

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

46

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.
