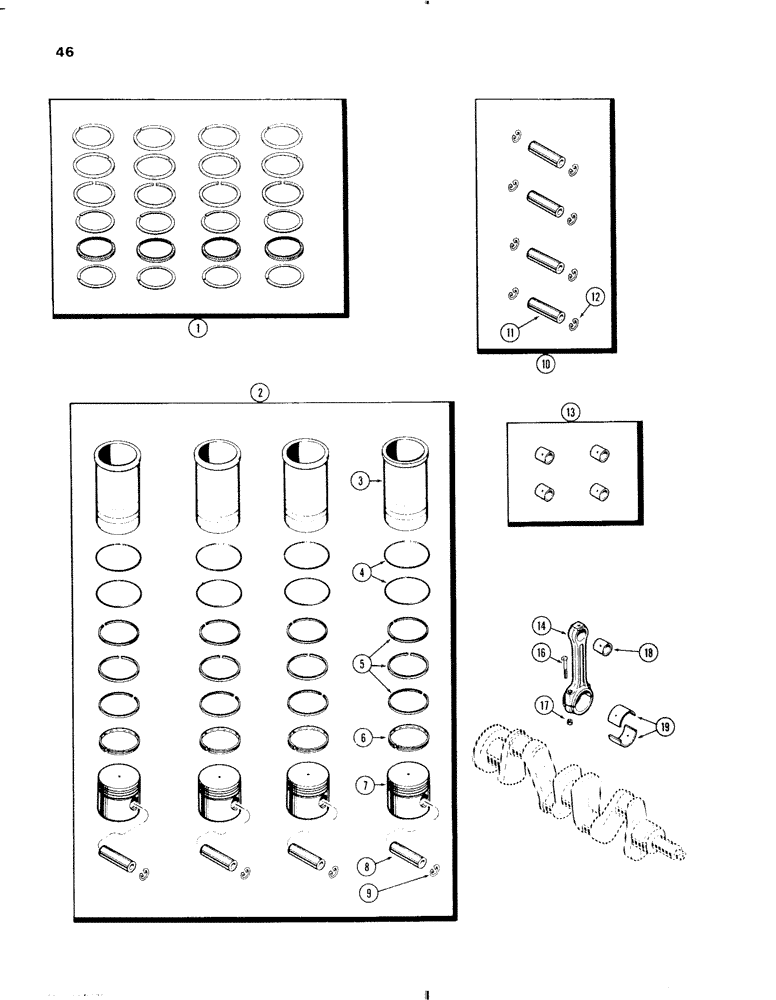

Запчасти Case IH 570 (046) - PISTON ASSEMBLY AND CONNECTING RODS, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G11994

PACKAGE, RINGS

RING SET - 4 pistons (2 in 1 chrome set) (includes ref. 2 - 9)

1шт.

2

G11958

SET

PISTONS & SLEEVES - (matched set of 4) (includes ref. 3 - 9)

1шт.

3

G2104

SLEEVE CYLINDER

SLEEVE - cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O"RING - sleeve packing (3-1/8 x 3-7/32 x 7/64")

8шт.

5

G4810

RING, PISTON

RING - compression (See ref. 1)

12шт.

6

G4811

RING, PISTON

RING - oil control (See ref. 1)

4шт.

7

G2105

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

1шт.

9

A26915

RING, SNAP

RING - retaining (See ref. 10)

8шт.

10

A36030

KIT

PIN KIT - piston (Set of 4 w/ret. rings) (includes ref. 11 & 12)

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - Order A36030)

4шт.

12

A26915

RING, SNAP

RING - retaining

8шт.

13

G11922

BUSHING

KIT - conn. rod (Set of 4)

1шт.

14

G11172

STEM

ROD ASSY. - connecting (includes ref. 16, 17 & 18)

4шт.

16

G11701

BOLT

- cap

2шт.

17

G49060

NUT

- cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - pin (Order ref. 13)

1шт.

19

A36500

SEAL

LINERS - bearing, conn. rod (Set of 2 Std.)

4шт.

19

A36501

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .002" undersize)

4шт.

19

A36502

LINING

LINERS - bearing, conn. rod (Set of 2 .010" undersize)

4шт.

19

A36503

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .020" undersize)

4шт.

19

A36504

KIT

LINERS - bearing, conn. rod (Set of 2 .030" undersize)

4шт.
