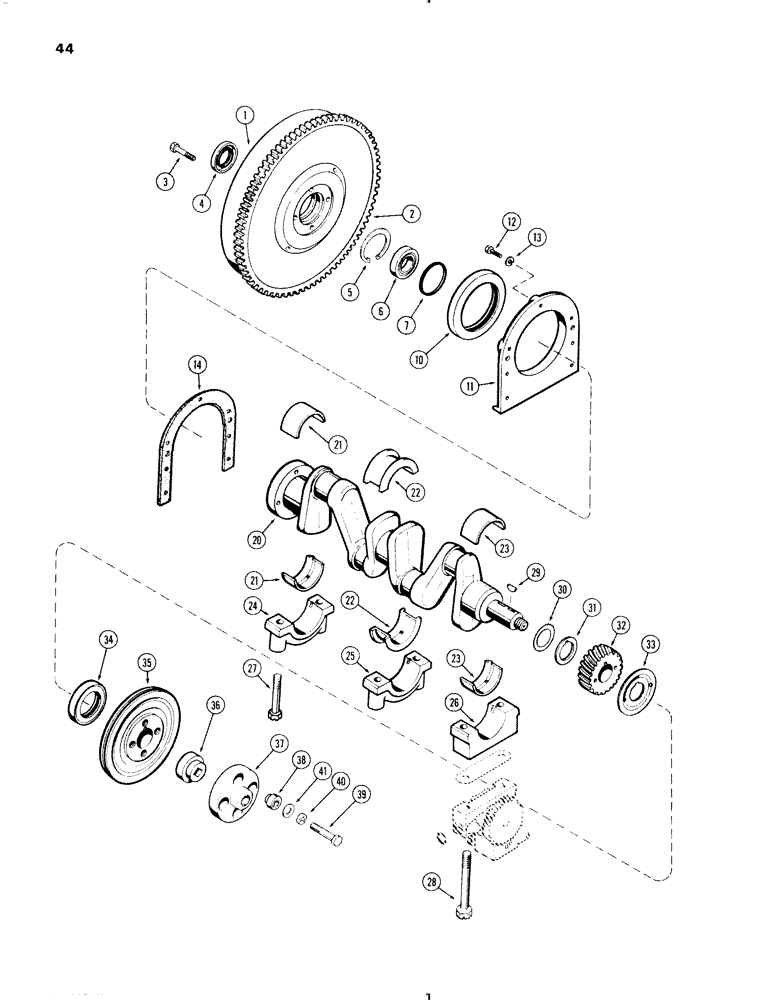

Запчасти Case IH 570 (044) - CRANKSHAFT AND FLYWHEEL, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE

1

A144358

FLYWHEEL

ASSY. (includes ref. 2)

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A37216

BOLT

- flywheel to crankshaft (7/16 x 1-1/2" N.F. Gr. 8)

4шт.

4

A37647

OIL SEAL

- oil, flywheel

1шт.

5

49482

SNAP RING,2.125", Int, #212

RING, snap, , flywheel brg. 2.125", Int, #212

1шт.

6

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel

1шт.

7

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel (2-1/4 x 2-3/8 x 3/32")

1шт.

10

A39027

OIL SEAL

- oil, crankshaft rear

1шт.

11

A38390

RETAINER

- oil seal, rear

1шт.

12

113-25

X

BOLT - 1/4 x 3/4" N.C. hex (Gr. 8)

4шт.

12

113-26

BOLT

- 1/4 x 1" N.C. hex (Gr. 8)

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

14

A38196

GASKET

- retainer, rear oil seal

1шт.

20

A37210

CRANKSHAFT

1шт.

21

G37051

KIT

LINERS - rear bearing (Set of 2 Std.)

1шт.

21

G37052

KIT

LINERS - rear bearing (Set of 2 .002" undersize)

1шт.

21

A42322

FIP KIT

LINERS - rear bearing (Set of 2 .010" undersize)

1шт.

21

G37053

KIT

LINERS - rear bearing (Set of 2 .020" undersize)

1шт.

21

G37054

KIT

LINERS - rear bearing (Set of 2 .040" undersize)

1шт.

22

G37047

KIT

LINERS - center bearing (Set of 2 Std.)

1шт.

22

G37048

KIT

LINERS - center bearing (Set of 2 .002")

1шт.

22

A42321

FIP KIT

LINERS - center bearing (Set of 2 .010" undersize)

1шт.

22

G37049

KIT

LINERS - center bearing (Set of 2 .020" undersize)

1шт.

22

G37050

KIT

LINERS - center bearing (Set of 2 .040" undersize)

1шт.

23

G37043

KIT

LINERS - front bearing (Set of 2 Std.)

1шт.

23

G37044

KIT

LINERS - front bearing (Set of 2 .002" undersize)

1шт.

23

A42320

BEARING LINER

LINERS - front bearing (Set of 2 .010" undersize)

1шт.

23

G37045

KIT

LINERS - front bearing (Set of 2 .020" undersize)

1шт.

23

G37046

KIT

LINERS - front bearing (Set of 2 .040" undersize)

1шт.

24

G2037

CAP

- rear bearing liners

1шт.

25

G2036

CAP

- center bearing liners

1шт.

26

G2035

CAP

- front bearing liners

1шт.

27

G49037

BOLT

- bearing cap (1/2 x 3" N.C. Gr. 8)

4шт.

28

G49059

BOLT

- frt. brg. cap & oil pump (1/2 x 4-3/4" N.C. Gr. 8)

2шт.

29

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear (1/4 x 1-1/16" Hi-Pro)

2шт.

30

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

31

A29294

BUSHING

SPACER - thrust (1-29/64 x 2-1/32 x 3/32")

1шт.

32

A29263

GEAR

- crankshaft (24T)

1шт.

33

A29259

SLINGER

- oil

1шт.

34

A36609

OIL SEAL

- oil, front

1шт.

35

G11342

X

PULLEY - drive belt, fan & alternator

1шт.

36

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

37

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible (includes ref. 38)

1шт.

38

A36905

STUD

BUSHING - flex.

4шт.

39

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

40

92-7

LOCK WASHER,7/16"

4шт.

41

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (29/64 x 3/4 x 1/16")

4шт.
