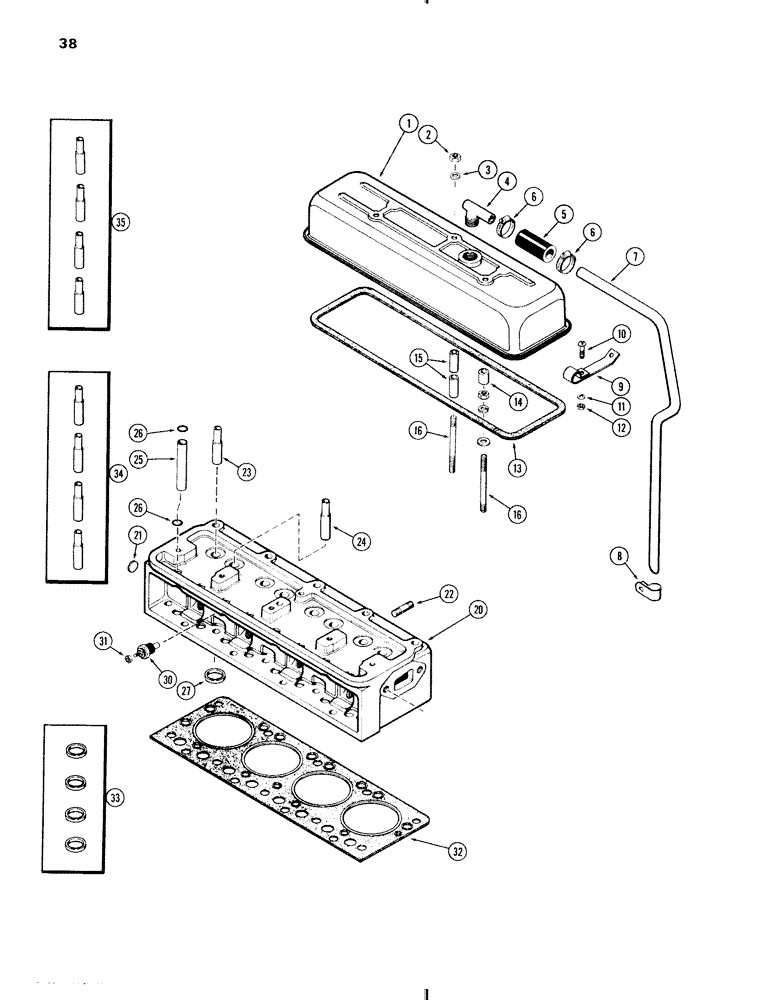

Запчасти Case IH 570 (038) - CYLINDER HEAD AND COVER, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A37212
COVER
- cylinder head
1шт.
2
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
3шт.
3
A29277
WASHER
- cover stud (13/32 x 1 x 1/8")
3шт.
4
A9155
90 ELBOW
- breather, Serial Range: tube-cover
1шт.
5
A21234
HOSE,0.75" ID x 3.50", SAE 20R4 Class SC
- Tube to elbow 0.75" ID x 3.50", SAE 20R4 Class SC
1шт.
6
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16" to 1 3/4"
2шт.
7
A37979
X
TUBE - breather
1шт.
8
D35026
CLAMP - breather tube
1шт.
9
A38134
SPRING
CLIP -, Serial Range: tube-manifold
1шт.
10
75-48
SCREW,Rd, 1/4" - 20 x 1/2"
- 1/4 x 1/2" rd. hd.
1шт.
11
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
12
25-104
NUT,1/4"-20, G5
1шт.
13
A30009
GASKET
- cylinder head cover
1шт.
14
A30065
SPACER
- head cover (17/32" high)
2шт.
15
A29999
SPACER
- head cover (1-19/32" high)
2шт.
16
G49505
STUD
- cover (3/8 N.C. x 4 5/8" w/2" thread)
3шт.
20
G11874
HEAD (CYLINDER)
HEAD ASSY. - stripped (Casting No. G2088) (includes ref. 21 - 27)
1шт.
21
41-18
PLUG
- rear (1-1/8" expansion type)
1шт.
22
A29431
STUD
- manifold (3/8" N.C. x 1-3/4")
7шт.
23
NSS
NOT SOLD SEPARAT
GUIDE - intake valve stem (Order ref. 34)
4шт.
24
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve stem (Order ref. 35)
4шт.
25
G11360
TUBE,0.687" OD x 3.687" L
- push rod (3-25/32" high)
8шт.
26
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
"O"RING - tube seal (11/16 x 7/8 x 3/32")
16шт.
27
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order ref. 33)
4шт.
30
A21462
SENDER UNIT
SENDER - engine temperature
1шт.
31
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 hex (includes lock washer)
1шт.
32
G46870
CYLINDER HEAD GASKET
-, Serial Range: head-block
1шт.
33
G11960
KIT
INSERTS - exhaust valve seat (Set of 4)
1шт.
34
G10269
KIT
GUIDES - intake valve stem (Set of 4)
1шт.
35
A30270
GUIDE
S - exhaust valve stem (Set of 4)
1шт.
Выбрано товаров: 30
