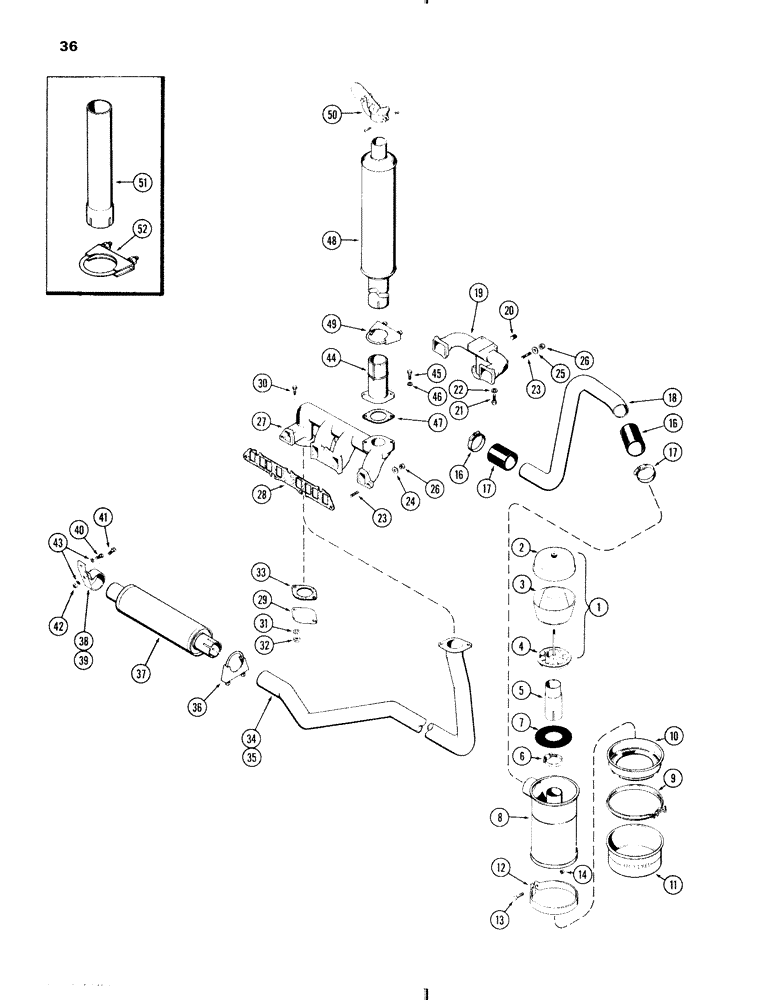

Запчасти Case IH 570 (036) - AIR CLEANER-MANIFOLD-MUFFLER, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE

1

D20604

PRECLEANER

PRE-CLEANER ASSY. (includes ref. 2, 3 & 4)

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

- plastic

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order D20604)

1шт.

5

A35651

EXTENSION

- air cleaner to pre-, Serial Range: cleaner-pre-cleaner

1шт.

6

A36854

SHIELD

- extension

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- extension to air cleaner #28, 1.31/2.25 Type F Worm

1шт.

8

G45238

AIR CLEANER ASSY. (includes ref. 9, 10 & 11)

1шт.

9

G45153

CLAMP

ASSY. - oil cup

1шт.

10

G46324

CUP

- oil, inner

1шт.

11

G46325

CUP

- oil, outer

1шт.

12

G15614

CLAMP - mounting, air cleaner

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4 x 1-3/4" rd. hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

G46257

HOSE - intake tube (2" I.D. x 2-3/4" lg.) 2" ID x 2.375" OD

2шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

18

G46258

TUBE - air cleaner to carburetor 2" OD

1шт.

19

A37004

MANIFOLD

- intake

1шт.

20

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

24

A30058

WASHER

- stud (13/32 x 7/8 x 1/8")

4шт.

25

195-25

WASHER,3/8"

3шт.

26

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

A30030

GASKET

-, Serial Range: manifold-head

1шт.

29

A38188

PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

31

195-25

WASHER,3/8"

2шт.

32

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

2шт.

33

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

34

A36908

PIPE, EXHAUST SYSTEM

PIPE - underneath exhaust (Std. 4 Wheel)

1шт.

35

A36910

PIPE

- underneath exhaust (Gen. Purpose)

1шт.

36

A27077

CLAMP

-, Serial Range: pipe-muffler

1шт.

37

G45287

MUFFLER

- underneath

1шт.

38

A36909

BRACKET

CLAMP - rear, muffler (Std. 4 Wheel)

1шт.

39

A35178

BRACKET

CLAMP - rear, muffler (Gen. Purpose)

1шт.

40

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

48

A39022

MUFFLER

- upright

1шт.

49

A13240

CLAMP,2-5/8" ID

- upright, Serial Range: muffler-outlet

1шт.

50

G45048

CAP

- weather

1шт.

51

A39021

EXTENSION

- muffler (w/canopy)

1шт.

52

A39019

CLAMP

- extension (2")

1шт.
