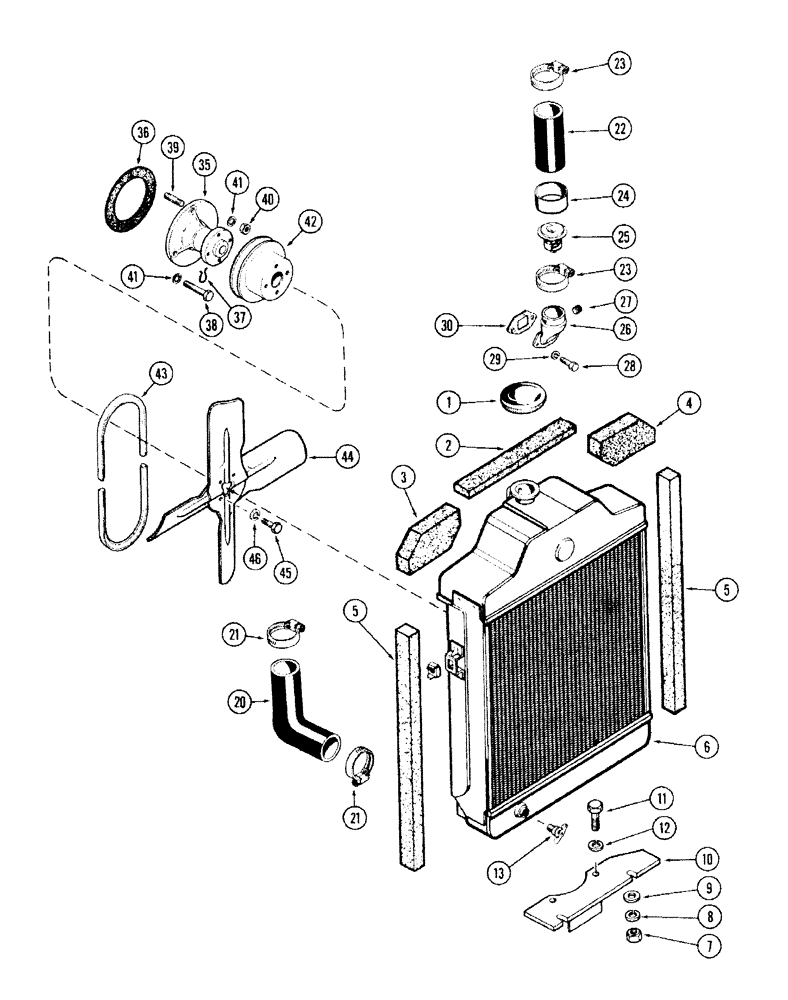

Запчасти Case IH 570 (034) - ENGINE COOLING SYSTEM, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G45179

CAP

CAP - radiator

1шт.

2

G46280

BAFFLE

BAFFLE - top center, radiator

1шт.

3

G46278

BAFFLE

BAFFLE - to R.H., radiator

1шт.

4

G46279

BAFFLE

BAFFLE - top L.H., radiator

1шт.

5

G46281

SPARE PART BAFFLE - side, radiator

2шт.

6

G45266

SPARE PART RADIATOR

1шт.

7

25-106

NUT,3/8"-16, G5

NUT - tank stud, 3/8" N.C. hex

2шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

9

195-25

WASHER,3/8"

WASHER, 3/8"

2шт.

10

A35796

SUPPORT

BRACKET - radiator support

1шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

12

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

13

217-103

COCK, DRAIN

VALVE - drain, radiator (1/4" P.T.)

1шт.

20

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower, Radiator to Pump

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

22

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Outlet to Radiator

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

24

G49625

SUPPORT

SUPPORT - hose clamp

1шт.

25

G11065

CASE

THERMOSTAT (177 deg. to 180 deg. F)

1шт.

26

G11965

ELBOW

ELBOW - water outlet (includes ref. 27)

1шт.

27

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

30

A30003

GASKET

GASKET -, Serial Range: elbow-head

1шт.

35

A37758

PUMP

PUMP ASSY. - water (includes ref. 36 & 37)

1шт.

35

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

35

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Pump Assy

1шт.

35

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

35

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

35

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

36

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

37

A30067

RING

RING - retainer

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

38

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex

1шт.

39

A29433

STUD

STUD - pump mounting (3/8" N.C. x 1")

1шт.

40

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.

41

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

42

G11339

PULLEY

PULLEY - drive belt

1шт.

43

A38824

BELT

Fan and Pump Drive

1шт.

44

G45243

FAN

FAN

1шт.

45

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

46

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.
