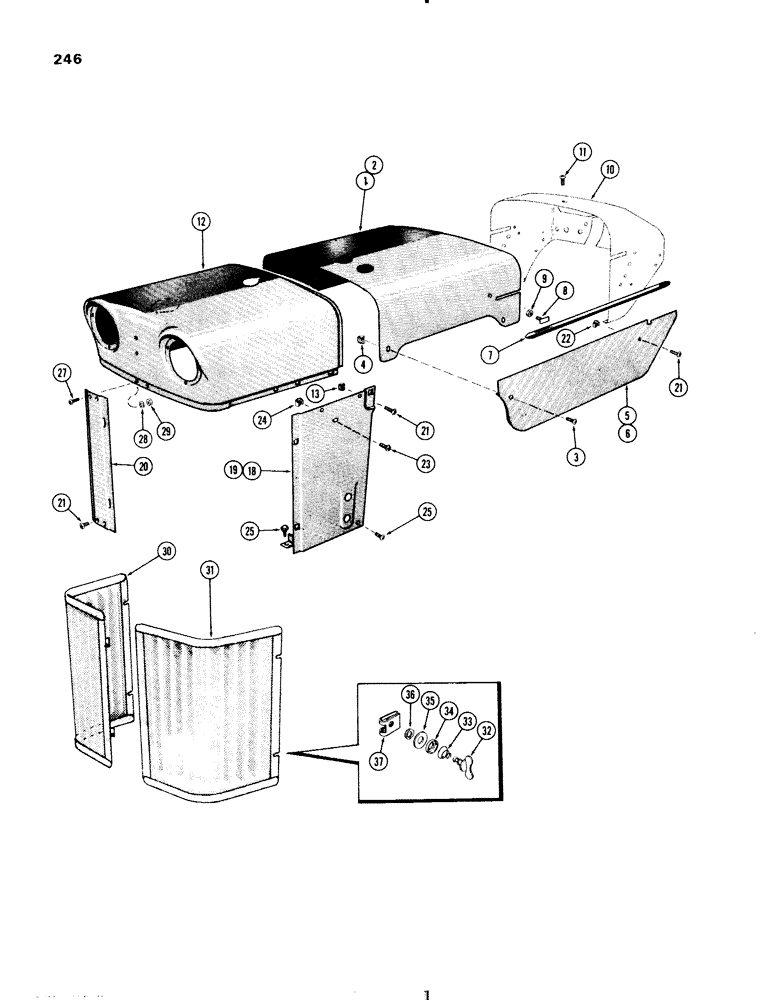

Запчасти Case IH 570 (246) - HOOD, GRILLE AND PANELS, (570 SERIES) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A37819
HOOD - (diesel w/upright muffler)
1шт.
1
A37820
HOOD - (gas w/upright muffler)
1шт.
2
A37821
HOOD - (diesel w/underneath muffler)
1шт.
2
A37822
HOOD - (gas w/underneath muffler)
1шт.
3
175-429
SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"
- (5/16 x 5/8" N.F. truss head)
2шт.
4
131-123
NUT,Ret, 5/16"-24
- cage (5/16" N.F.) (on fuel tank)
2шт.
5
G15618
PANEL - side, R.H. rear
1шт.
6
G15619
PANEL - side, L.H. rear
1шт.
7
G46259
MOLDING
STRIP - chrome, fuel tank
2шт.
8
A11459
BOLT
"T" BOLT - chrome strip
4шт.
9
193-1000
NUT,Keps, w/LW,#10-32
- (#10-32 hex) (Keps)
4шт.
10
A36678
PANEL - instrument (w/adj. front wheel)
1шт.
10
A36679
PANEL - instrument (w/dual or single front wheel)
1шт.
11
175-431
SCREW - (1/4 x 3/8" truss head)
3шт.
12
A38774
CAP - grill, radiator
1шт.
13
131-115
NUT
- retainer (1/4" N.C.)
4шт.
18
A38828
PANEL - R.H. side, radiator
1шт.
19
A36681
PANEL - L.H. side, radiator
1шт.
20
G30275
BRACE - center, radiator grill
1шт.
21
175-405
SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"
- (1/4 x 1/2" N.C. truss head)
8шт.
22
131-102
SPRING NUT,Ret, 1/4"-20
2шт.
23
174-429
SCREW - (5/16 x 5/8" N.F. truss head)
2шт.
24
131-123
NUT,Ret, 5/16"-24
- cage (5/16" N.F.) (to radiator)
2шт.
25
175-437
SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"
- (5/16 x 5/8" N.C. truss head)
4шт.
27
175-408
SCREW,Phil Truss Head, 1/4" - 20 x 3/4"
- (1/4 x 3/4" N.C. truss head)
2шт.
28
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
29
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
30
A36686
GRILLE
GRILL - R.H., radiator
1шт.
31
A36687
GRILL - L.H., radiator
1шт.
32
A32881
STUD
- grill, lock
4шт.
33
A32882
VALVE SPRING
SPRING - lock stud
4шт.
34
A32883
WASHER
- wear, grill stud
4шт.
35
A34012
WASHER
- grill stud
4шт.
36
NLS
NO LONGER SERVICED
RING - snap, stud retaining
4шт.
37
A36042
CLIP
RECEPTACLE - grill stud
4шт.
Выбрано товаров: 35
