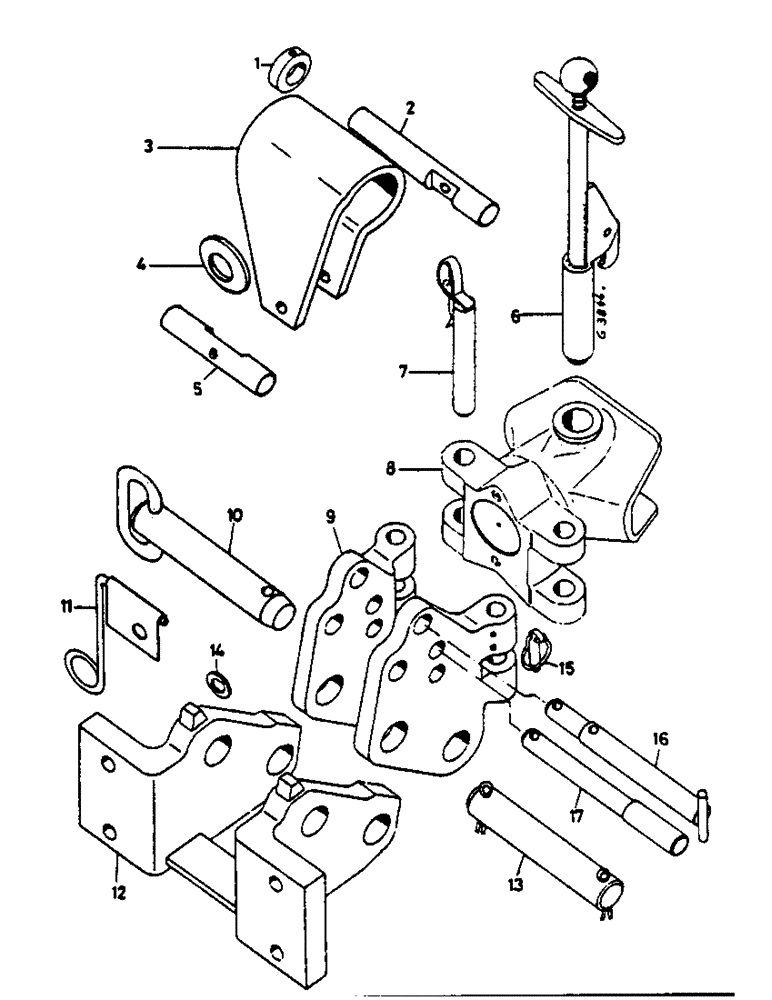

Запчасти Case IH 553 (314) - HEIGHT ADJUSTABLE TRAILER HITCH (09) - CHASSIS

1

3134845R1

CAM

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

2

3142058R1

SHAFT

PIN spring fixing

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

S 1/2" x 16 mm

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

3

3058085R2

SPRING

bellcrank

1шт.

4

933606R1

BELLEVILLE WASHER,M14 Bolt Size x 28mm OD x 1mm Thk

WASHER lock

2шт.

5

3142057R1

ROLL PIN

spring holding

1шт.

3142047R92

TRAILER HITCH

1шт.

3142055R1

SCREW

SPECIAL BOLT

4шт.

6

3142054R2

PIN trailer hitch, with latch

1шт.

7

3137228R2

PIVOT PIN

2шт.

8

3142048R1

HITCH trailer

1шт.

9

3142050R1

FRAME

SPARE PART ROCKER

1шт.

10

3142052R1

PIN

1шт.

11

3142053R1

CLEVIS PIN

HOLDER upper link

1шт.

12

3142049R1

BRACKET

SPARE PART mounting

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

103325

LOCK WASHER,5/8"

4шт.

13

3142051R1

PIN

with cotter pins

1шт.

14

3142056R1

WASHER

SPARE PART

4шт.

15

3057346R11

LINCH PIN

with ring

1шт.

16

3137658R11

PIN

upper link

1шт.

17

3137660R1

PIN,25.4mm OD x 175mm L

upper link

1шт.
