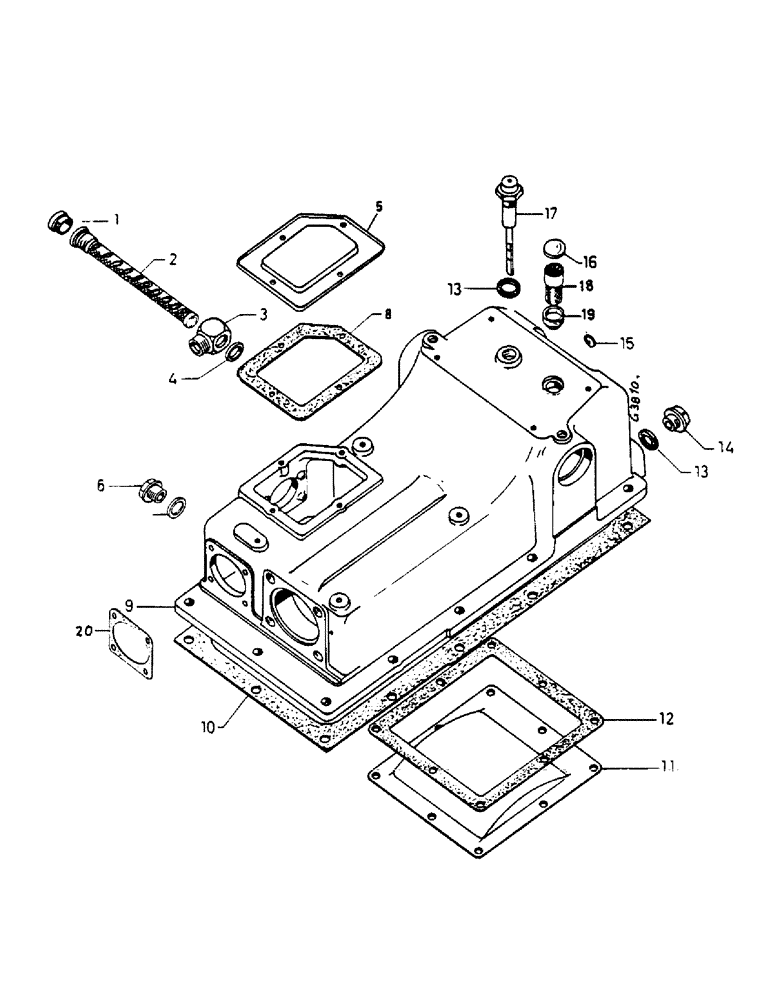

Запчасти Case IH 553 (272) - LIFT HOUSING (09) - CHASSIS

1

3058066R1

PLUG

1шт.

2

3137238R91

STRAINER ELEMENT

suction, with: 1 - 4

1шт.

2

3137236R11

STRAINER suction, with: 2 - 4

1шт.

2

3059935R91

STRAINER ASSY.

suction, for 3137238R91

1шт.

2

3137236R1

FILTER STRAINER

suction, for 3137236R11

1шт.

3

3058064R1

UNION

connecting for 3137238R91

1шт.

3

3137237R1

HYD CONNECTOR

UNION, connecting for 3137236R91

1шт.

4

3058065R1

RING

packing

1шт.

5

3057627R1

COVER

adjusting

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

6

716954R1

PLUG,Hex, M22 x 1.5

1шт.

7

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

2шт.

8

3057628R2

GASKET

1шт.

9

3131657R1

HOUSING

lift hydraulic

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

9шт.

103323

LOCK WASHER,1/2"

9шт.

932470R1

LOCK PIN,M6 x 20, Slotted

Stop for lowering control valve

1шт.

10

3057632R1

GASKET,0.5mm Thk

1шт.

11

3057625R3

COVER

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

12

3057626R3

GASKET

1шт.

13

933609R1

RING

2шт.

14

3059999R2

PLUG

1шт.

15

172531

PLUG,Exp, 3/4"

expansion

1шт.

16

172574

PLUG,Exp, 1 1/2"

expansion

1шт.

17

3057629R93

DIPSTICK

GAUGE oil level, with breather

1шт.

17

3058603R11

DIPSTICK

GAUGE oil level, without breather

1шт.

18

3058601R1

BREATHER

BREATHER, with front loader

1шт.

19

3058602R1

GASKET

with front loader

1шт.

20

3053453R1

GASKET

1шт.

787576R91

GASKET KIT

SET, hydraulic

1шт.
