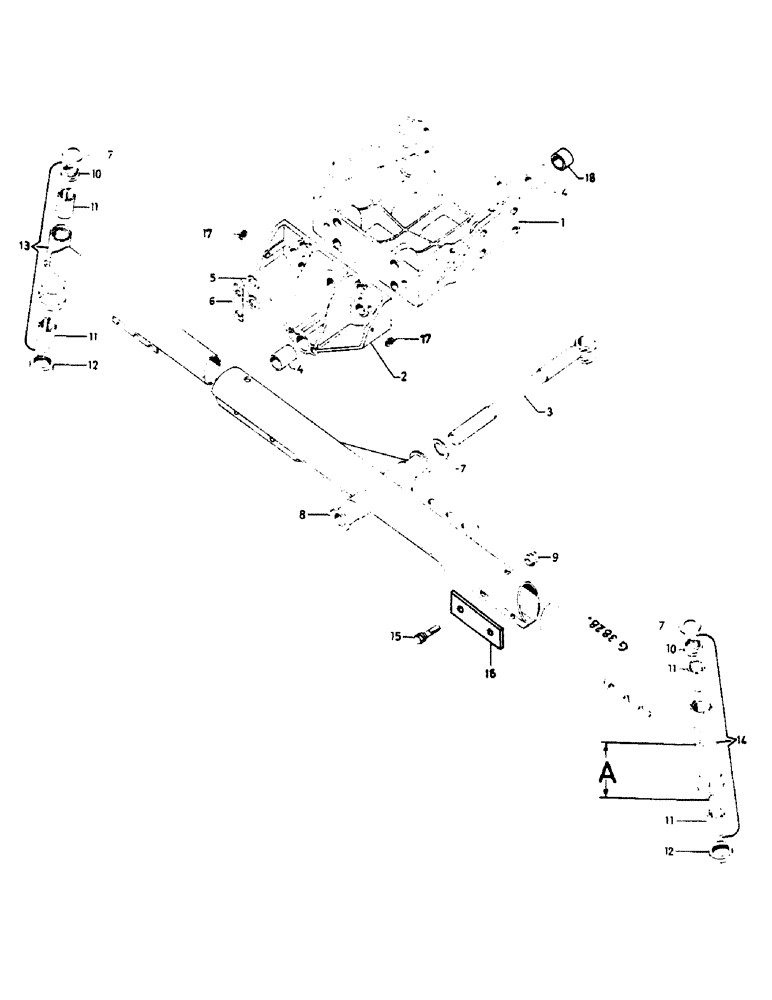

Запчасти Case IH 553 (194) - FRONT AXLE, ADJUSTABLE (06) - POWER TRAIN

3057121R51

CARRIER

SUPPORT, front axle, rear, with: 4,18

1шт.

739159R91

LUBE NIPPLE

LUBRICATOR

1шт.

2

3057453R21

CARRIER

SUPPORT, front axle, front, with: 4

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

10шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

103325

LOCK WASHER,5/8"

10шт.

3057031R1

PIN,M28 x 26, Slotted

(4)

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

2шт.

3

3059125R3

PIN

PIVOT, front axle

1шт.

4

3134952R1

BUSHING

2шт.

5

575810R1

WASHER

4шт.

6

3057032R1

SHEET

PLATE, locking

2шт.

7

3059771R1

SHIM

0.2 mm

1шт.

7

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.5 mm

1шт.

8

3057033R13

CENTER AXLE

front

1шт.

8

3142565R91

CENTER AXLE

front

1шт.

Version with power steering

1шт.

8

3134119R92

AXLE front center, for axle with ground clearance 24" (610 mm)

1шт.

8

3142567R91

CENTER AXLE

front

1шт.

Version with power steering

1шт.

3059875R3

BOLT

S 5/8" x 35 mm

2шт.

103325

LOCK WASHER,5/8"

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

9

933948R1

WHEEL NUT,Wheel, M14 x 1.5

ball flange

4шт.

10

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SCRAPER

2шт.

11

3057051R1

BUSHING

4шт.

12

3057058R91

BEARING ASSY

thrust

2шт.

13

3057046R91

EXTENSION

front axle RH, for ground clearance 17" (432 mm) A = 70 mm

1шт.

13

3057044R91

EXTENSION

SPARE PART front axle RH, for ground clearance 18" (457 mm) A = 100 mm

1шт.

13

3131381R91

EXTENSION

front axle RH, for ground clearance 20" (508 mm) A = 150 mm

1шт.

13

3134182R91

EXTENSION

front axle RH, for ground clearance 24" (610 mm) A = 230 mm

1шт.

739157R91

LUBE NIPPLE

LUBRICATOR

1шт.

14

3057045R91

EXTENSION

front axle LH, for ground clearance 17" A = 70 mm

1шт.

14

3057043R11

EXTENSION

SPARE PART front axle LH, for ground clearance 18" A = 100 mm

1шт.

14

3131380R91

EXTENSION

front axle LH, for ground clearance 20" A = 150 mm

1шт.

14

3134181R91

EXTENSION

front axle LH, for ground clearance 24" A = 230 mm

1шт.

739157R91

LUBE NIPPLE

LUBRICATOR

1шт.

15

3057038R1

BOLT

ball flange

4шт.

16

3134121R1

PLATE

4шт.

114-615

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 5

4шт.

492-11062

BEARING WASHER,5/8"

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

17

Q1504

WASHER

2шт.

18

3137215R1

BUSHING,42mm ID x 48.07mm OD x 12.5mm L

1шт.
