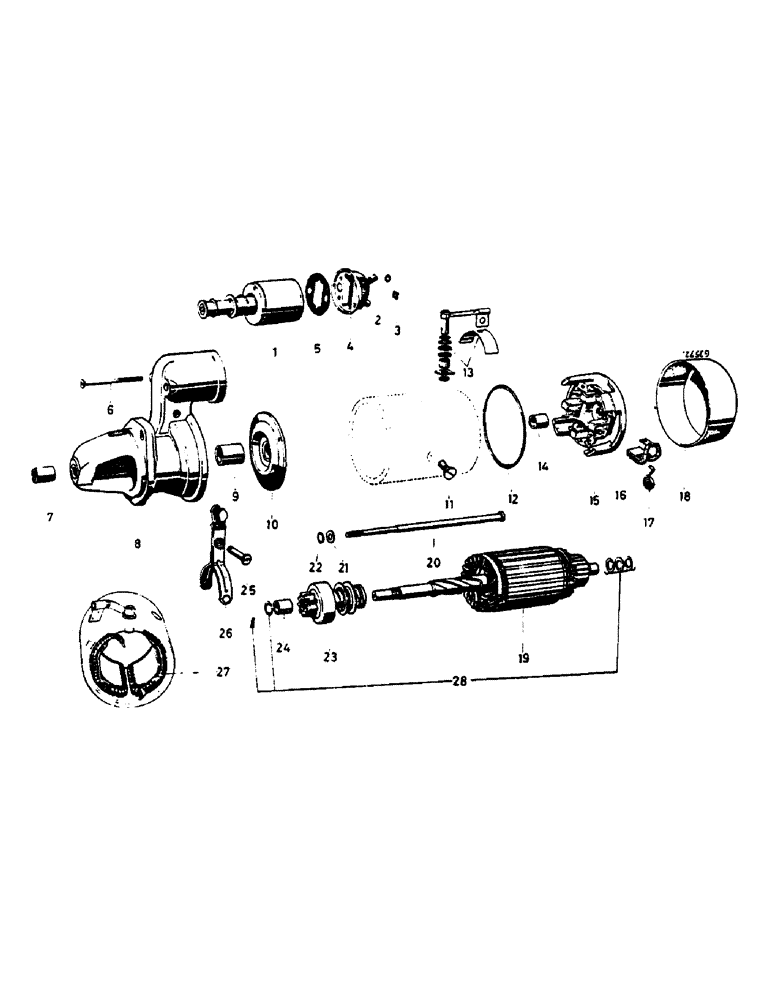

Запчасти Case IH 553 (093) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

3055557R91

STARTING MOTOR

4 HP, with 1 - 27, 33

1шт.

3055414R92

STARTING MOTOR

1,8 HP, with 1 - 20, 23 - 33

1шт.

1

3132762R1

SOLENOID SWITCH

with 2 - 5, 3055557R91

1шт.

1

3078458R91

SOLENOID SWITCH

with 2 - 5, 3055414R92

1шт.

2

3132460R1

WASHER

3055557R91

2шт.

3

3132454R1

PLATE

WASHER, square, 3055557R91

4шт.

3

3132763R2

CLAMP

WASHER, square, 3055414R92

4шт.

4

3132457R1

COVER

switch, 3055557R91

1шт.

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

S M4 x 6 mm, 3055414R92

1шт.

931108R1

SCREW,M4 x 8mm, Cl 4.8

S M4 x 8 mm, 3055557R91

5шт.

930330R1

NO LONGER SERVICED

S M4 x 12 mm, 3055557R91

1шт.

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

3055557R91

2шт.

934075R1

LOCK WASHER,M10

3055557R91, 3055414R92

2шт.

100016

NUT,M10 x 1.5, Cl 8

3055557R91, 3055414R92

2шт.

5

3132455R1

SHIM

GASKET 0,4 mm, 3055557R91

1шт.

5

3132456R1

GASKET

1 mm, 3055557R91

1шт.

6

931100R1

SCREW,M6 x 50mm, Cl 4.8

3055557R91

2шт.

6

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

3055414R92

3шт.

933986R1

LOCK WASHER,M5

3055414R92

3шт.

7

3055738R1

BUSHING

3055557R91, 3055414R92

1шт.

8

3132431R1

BRACKET

HOUSING, drive shaft, bearing, with bushing, 3055557R91

1шт.

8

3132662R1

MOTOR, ELECTRIC

HOUSING, drive shaft, bearing, with bushing, 3055414R92

1шт.

9

3132441R1

BUSHING

3055557R91

1шт.

9

3055747R1

BUSHING

3055414R92

1шт.

10

3079253R91

HOUSING, BEARING

intermediate, with bushing, 3055557R91

1шт.

10

3132650R1

BEARING

intermediate, with bushing, 3055414R92

1шт.

11

3078334R1

SCREW

3055557R91

4шт.

11

931116R1

SCREW,M10 x 15mm, Cl 4.8

3055414R92

4шт.

12

3132450R1

O-RING

3055557R91

1шт.

12

3055784R1

RING

packing, 3055414R92

1шт.

13

3132464R91

TERMINAL CONNECTOR

ASSEMBLY, terminal, 3055557R91

1шт.

13

3078459R91

PACKAGE, REPAIR

ASSEMBLY, terminal, 3055414R92

1шт.

14

3132446R1

BUSHING

3055557R91

1шт.

14

3078457R1

BUSHING

3055414R92

1шт.

15

3132445R1

FRAME

commutator end, with 14, 16, 17, 3055557R91

1шт.

15

3132655R1

END

SPARE PART FRAME, commutator end, with 14, 16, 17, 3055414R92

1шт.

16

3132447R1

CARBON

BRUSH, set of 4, 3055557R91

1шт.

16

3055767R92

BRUSH SET

carbon, set of 4, 3055414R92

1шт.

933994R1

LOCK WASHER,M4

3055414R92

4шт.

931399R1

BOLT,M4 x 8mm, Cl 8.8

S M4 x 8 mm, 3055414R92

4шт.

17

3132448R1

VALVE SPRING

brush, 3055557R91

4шт.

17

3055769R91

SPRING, brush, 3055414R92

4шт.

18

3132449R1

COVER

3055557R91

1шт.

18

3132656R1

X

COVER, 3055414R92

1шт.

931400R1

SCREW,M4 x 10mm, Cl 8.8

S M4 x 10 mm, 3055414R92

1шт.

-

3136923R1

WASHER

3055414R92

2шт.

19

3132444R1

X

ARMATURE, 3055557R91

1шт.

19

3078456R91

ARMATURE

3055414R92

1шт.

20

3132436R1

BOLT

3055557R91

2шт.

20

3132649R1

SPARE PART STUD, 3055414R92

2шт.

933987R1

LOCK WASHER,M6

3055557R91, 3055414R92

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3055414R92

2шт.

21

3132438R1

WASHER

3055557R91

1шт.

22

3132437R1

RING

packing, 3055557R91

1шт.

23

3132442R1

SHAFT

drive, with bushing, 3055557R91

1шт.

23

3078463R91

SHAFT

drive, with bushing, 3055414R92

1шт.

24

3132443R1

BUSHING

3055557R91

1шт.

24

3078455R1

BUSHING

3055414R92

1шт.

25

3132433R1

SCREW

3055557R91

1шт.

25

3132648R1

SCREW

3055414R92

1шт.

933983R1

LOCK WASHER,M6

F 8 mm, 3055557R91

1шт.

43362

NUT,M8 x 1.25, Cl 10

3055557R91

1шт.

26

3132432R1

LEVER

shift, 3055557R91

1шт.

26

3132647R1

LEVER

SPARE PART shift, 3055414R92

1шт.

27

3132384R1

COIL

field (1 - 4), 3055557R91

1шт.

27

3078451R91

COIL

field (1 - 2), 3055414R92

1шт.

28

3078452R91

COIL

field (3 - 4), 3055414R92

1шт.

29

3132651R1

SEALING WASHER

insulation, 3055414R92

1шт.

30

3132652R1

COLLAR

WASHER, 3055414R92

1шт.

31

3055748R1

SPRING

3055414R92

1шт.

32

3132653R1

GASKET

RING, packing, 3055414R92

1шт.

33

3132465R91

PACKAGE

PARTS, small for armature (1 set), 3055557R91

1шт.
