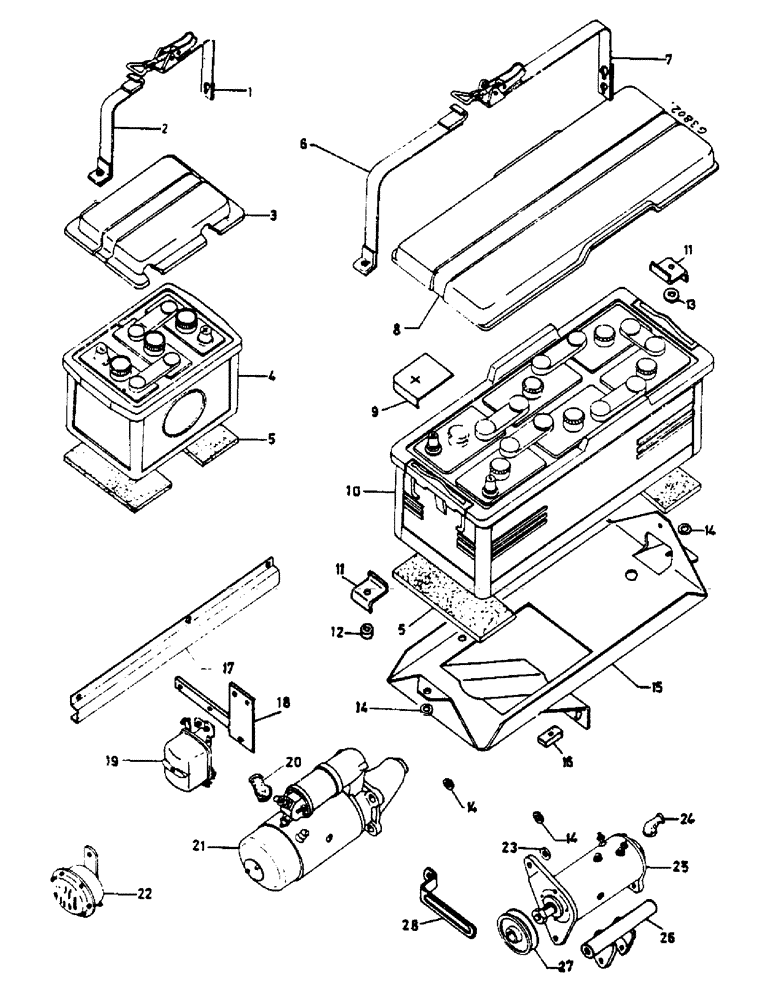

Запчасти Case IH 553 (088) - BATTERY, STARTING MOTOR, GENERATOR (04) - ELECTRICAL SYSTEMS

1

3059879R1

STRAP

with clamp

2шт.

2

3059880R2

STRAP

battery cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3134525R1

NUT

M 3/8"

2шт.

3

3057530R91

LID

COVER, battery

2шт.

4

3142081R91

BATTERY 6V 88Ah

2шт.

5

760437R4

PLATE

rubber, battery

1шт.

6

3059878R1

STRAP

battery cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

3054568R91

STRAP

with clamp

1шт.

8

3058168R1

COVER

battery

1шт.

9

3142098R1

COVER ASSY

battery

1шт.

For France only

1шт.

10

3137413R1

BATTERY

12V 88Ah

1шт.

For France only

1шт.

10

3142082R1

BATTERY

12V 135Ah

1шт.

11

3137422R2

SUPPORT

BRACKET, battery

2шт.

For France only

1шт.

114676

SPARE PART S 3/8" x 38 mm

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

3142061R1

SPACER

1шт.

For France only

1шт.

13

187076

CLUTCH

WASHER

1шт.

For France only

1шт.

14

3058249R1

WASHER

4шт.

15

3058162R21

SUPPORT

TRAY, battery

1шт.

15

3058162R2

BRACKET

TRAY, battery

1шт.

For France only

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

2шт.

3057583R1

RIVET

special

1шт.

16

3142062R1

SPACER

PLATE, distance

2шт.

For France only

1шт.

17

3057556R1

BRACKET

SHEATH, cable

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

3шт.

18

3132510R11

BRACKET

BRACE, 3 element regulator

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

19

3056597R92

REGULATOR

generator 11 Amp. 2 Element

1шт.

19

3132511R91

GOVERNOR

REGULATOR, generator 3 Element

1шт.

19

3132903R91

REGULATOR, generator 11 Amp. 2 Element

1шт.

19

3056918R92

REGULATOR

generator 16 Amp. 2 Element

1шт.

19

3132512R91

GOVERNOR

REGULATOR, generator 3 Element

1шт.

19

3132904R91

REGULATOR, generator 11 Amp. 2 Element

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

103319

LOCK WASHER,1/4"

3шт.

109084

NUT,1/4"-20, G5

2шт.

20

3055196R1

BOOT

rubber starter

1шт.

21

NSS

NOT SOLD SEPARAT

STARTER, see Figure 93

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

22

3057542R91

HORN

"BOSCH"

1шт.

22

3057682R91

HORN

"Mixo France"

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

23

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8,5 x 19 x 2,5 mm

2шт.

23

50793H

WASHER

10,3 x 22 x 3 mm

1шт.

24

3052809R1

PLUG

BOOT, rubber generator

2шт.

25

NSS

NOT SOLD SEPARAT

GENERATOR, see Figure 97

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

3шт.

103320

LOCK WASHER,5/16"

1шт.

102635

NUT,3/8"-16, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

3055197R1

BRACKET

generator 11 Amp.

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

26

787569R91

BRACKET

generator 16 Amp.

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

27

3055209R1

PULLEY

V-belt generator 11 Amp.

1шт.

27

3055563R1

PULLEY

V-belt generator 16 Amp.

1шт.

28

3136680R1

STAY

BRACE, generator 11 Amp.

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

3056921R1

STAY

BRACE, generator 16 Amp.

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

933570R1

WASHER

spring, 5/16"

1шт.

103321

LOCK WASHER,3/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.
