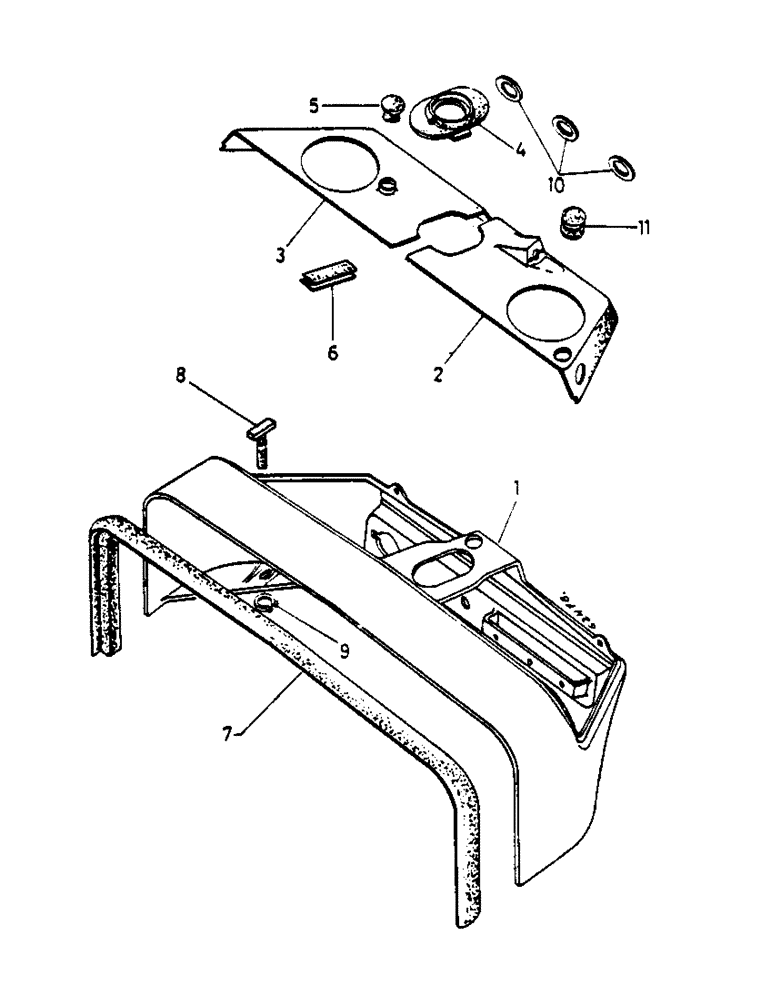

Запчасти Case IH 553 (078) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

3057492R1

PANEL

instrument

1шт.

21203R1

SCREW

S Nr. 10 x 8 mm

3шт.

2

3057152R1

SHEET

INSERT, instrument board, LH

1шт.

3

3057153R1

PROTECTIVE COVER

INSERT, instrument board, RH

1шт.

4

3057507R1

GASKET

BOOT, steering column

1шт.

5

716496R1

CAP

1шт.

6

3058350R1

STRAP

STRIP, sectional

1шт.

7

3058647R1

GASKET

1шт.

8

3057506R3

SCREW

BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

213262R1

SNAP RING,#37, Ext

2шт.

10

607893R1

WASHER

3шт.

11

3131810R1

CAP

SPARE PART protection

1шт.
