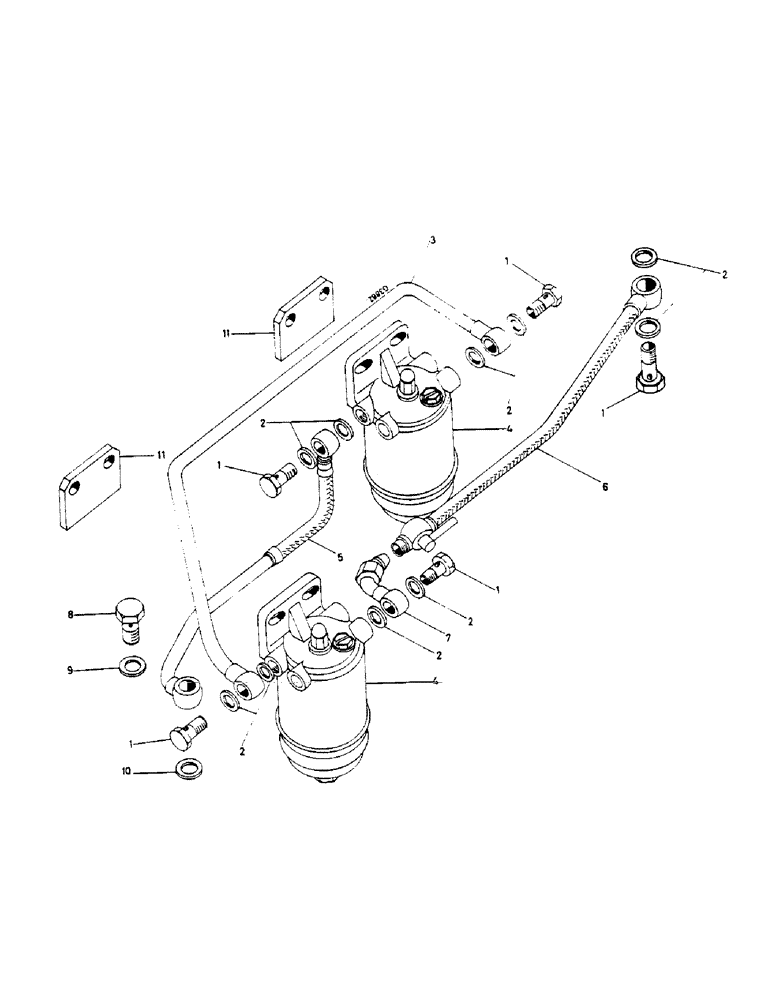

Запчасти Case IH 553 (060) - FUEL FILTER AND PIPES - 553 (03) - FUEL SYSTEM

1

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

5шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

10шт.

3

3144209R1

TUBE

PIPE, fuel

1шт.

4

REF

INSTRUCTION

FILTER, fuel, see Figure 64

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

S 3/8" x 32 mm

4шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

4шт.

5

3144207R1

LINE

PIPE, fuel

1шт.

6

3136222R91

LINE

with valve

1шт.

7

787648R1

PIPE FITTING

ELBOW

1шт.

8

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

9

713848R1

RING, packing

1шт.

10

3055390R1

RING

packing

1шт.

11

3059289R1

PLATE

BRACKET, fuel filter

2шт.
