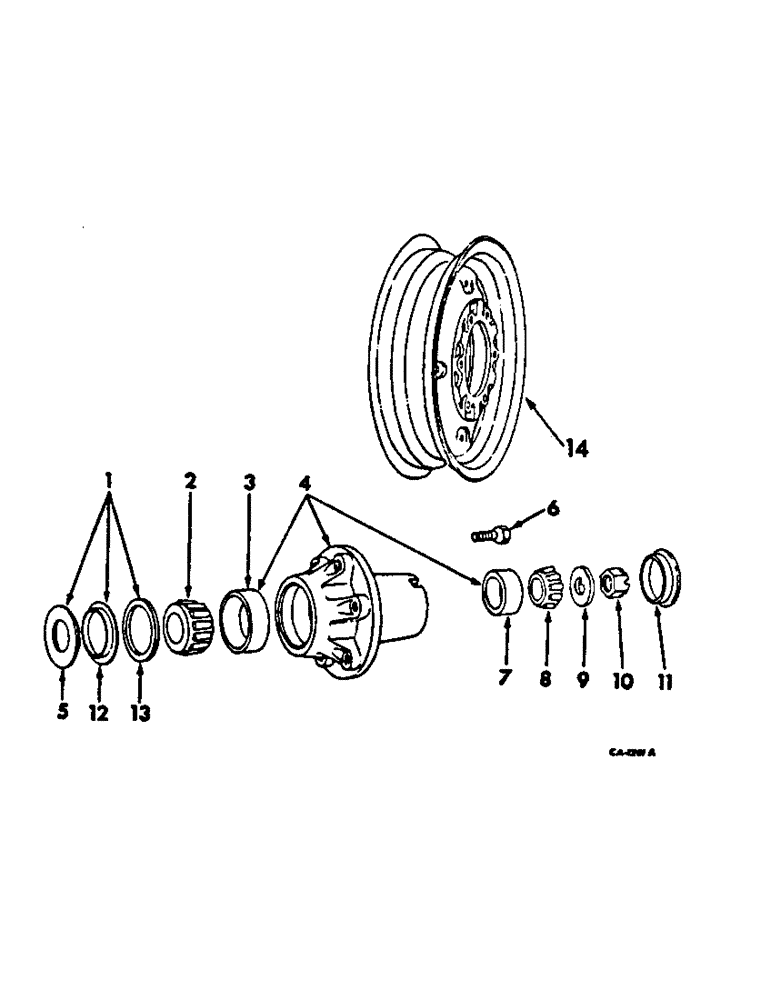

Запчасти Case IH 544 (L-06) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, INTERNATIONAL TRACTORS WITH CAST AXLE AND FABRICATED BOLSTER Wheels & Wheel Weights

1

378402R11

RETAINER

ASSY, hub felt

2шт.

2

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

BEARING ASSY, front wheel inner cone

2шт.

3

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

BEARING, front wheel inner cup

2шт.

4

378401R11

HUB

ASSY, front wheel

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER, oil seal, not serviced separately, order 378402R11

1шт.

6

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, front wheel mounting

12шт.

7

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

BEARING, front wheel outer cup

2шт.

8

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

BEARING ASSY, front wheel outer cone

2шт.

9

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

brg adjusting nut

2шт.

10

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

11

378814R1

CAP

front wheel hub

2шт.

12

97738H

RETAINER COLLAR

RETAINER, oil seal

2шт.

13

97737HA

RING

FELT, oil seal

2шт.

14

403655R1

WHEEL

ASSY, front, disc type W8L-16 DC rim for 11L-16 tire

2шт.

14

936537R91

RIM

WHEEL ASSY, front, disc type 8LB-16 DC rim for 9.00-16 tire

2шт.

65990C91

PACKAGE

front wheel brg overhaul, consists of (1) bearing st 2005A, (1) bearing st 954, (1) bearing st 2034, (1) bearing 20646DA, (1) retainer 378402R11, (1) washer 97788HA

2шт.
