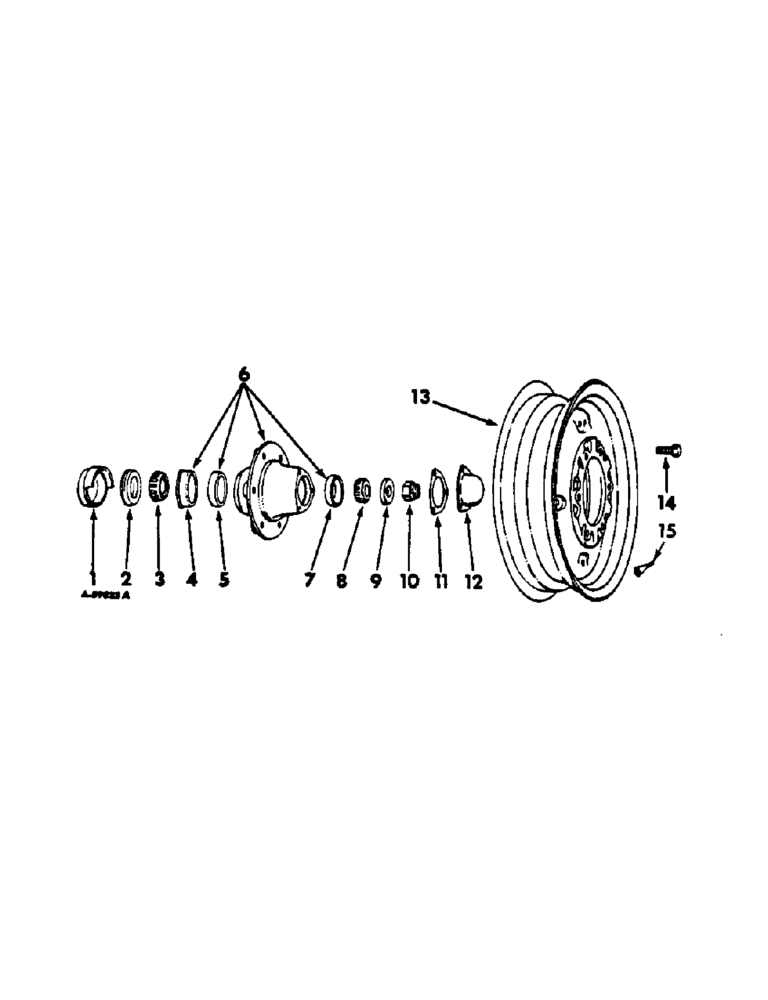

Запчасти Case IH 544 (L-05) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, INTERNATIONAL TRACTORS Wheels & Wheel Weights

1

48541D

SHIELD

front wheel dust, Serial Range: -14194

2шт.

1

48701D

SHIELD

front wheel dust, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

2

48539DA

PACKING RING

SEAL, front wheel oil, Serial Range: -14194

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel inner cone, Serial Range: -14194

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

4

48548D

WASHER

front wheel oil seal, Serial Range: -14194

2шт.

4

48703D

RETAINER

front wheel oil seal, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner, Serial Range: -14194

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup, heavy duty application for tractors, all applications, Serial Range: 14195-14194

1шт.

6

397092R11

HUB

ASSY, front wheel, Serial Range: -14194

2шт.

19700R91

FITTING

3/16 45 deg angle drive type lub

2шт.

6

391823R11

HUB

ASSY, front wheel, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

2шт.

7

371883R1

BEARING CUP

Front wheel outer, Serial Range: -14194

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer, Heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Front wheel outer, Serial Range: -14194

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer, Serial Range: -14194

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex., front wheel, Serial Range: -14194

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex., front wheel, heavy duty application for tractors, all applications, Serial Range: 14195-14194

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 cd-pltd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

380339R91

RIM

WHEEL ASSY, front, disc type 5.50F-16DC for 7.50-16 tire, for heavy duty front axle

2шт.

13

364343R92

WHEEL

ASSY, front, disc type 5.50F-16DC for 7.50-16 tire, serial no. 14194 & below

2шт.

13

370777R92

RIM

WHEEL ASSY, front, disc type 4.25KA-16DC rim for 6.50 x 16 tire, 1-5/8 in. offset

2шт.

13

380065R91

WHEEL

ASSY, front, disc type 4.25KA-16DC rim for 5.50 x 16, 6.00 x 16 or 6.50 x 16 tires, 1-5/16 in. offset

1шт.

14

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

15

387897R91

VALVE STEM

VALVE, tubeless tire, 44 lbs pressure and under

2шт.

15

536705R91

VALVE

tubeless tire, 45 lbs pressure and above

2шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul, serial no. 14194 & below, consists of (1) cone 371882R91, (1) cone 618023R91, (1) cup 371883R1, (1) cup 618024R1, (1) gasket 369860R1, (1) oil seal 48539DA, (1) retainer 48548D

2шт.

371418R91

PACKAGE

front wheel bearing overhaul, heavy duty application for tractors, all applications, consists of (1) cone 619386R91, (1) cone 618023R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 3698, Serial Range: 14195-14194

2шт.
