Запчасти Case IH 544 (L-04) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, INTERNATIONAL TRACTORS, FOR ORCHARD AND MOWING OPERATIONS Wheels & Wheel Weights

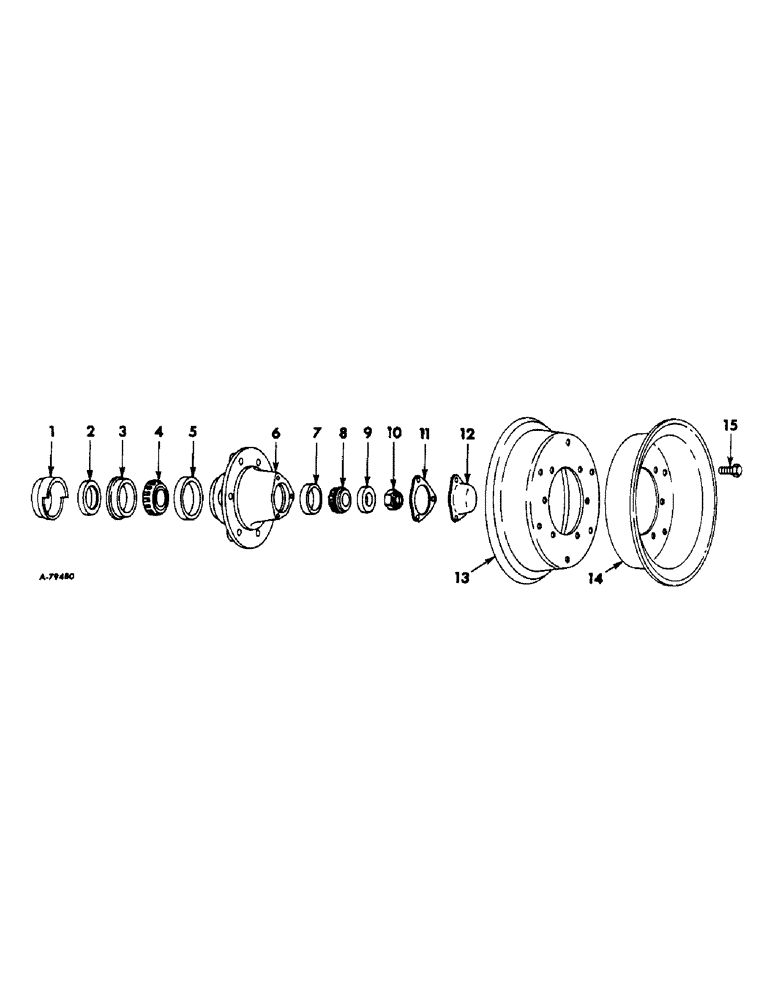

Схема запчастей Case IH 544 - (L-04) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, INTERNATIONAL TRACTORS, FOR ORCHARD AND MOWING OPERATIONS Wheels & Wheel Weights
13
2
1
11
14
3
4
5
12
6
9
7
10
15
8

Артикул

Название

Примечание

Количество

1

48541D

SHIELD

front wheel dust, Serial Range: -14194

2шт.

1

48701D

SHIELD

front wheel dust, Start Serial: 14195

2шт.

2

48539DA

PACKING RING

SEAL, front wheel oil, Serial Range: -14194

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil, Start Serial: 14195

2шт.

3

48548D

WASHER

front wheel oil seal, Start Serial: 14195

2шт.

3

48703D

RETAINER

front wheel oil seal, Start Serial: 14195

2шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel inner cone, Serial Range: -14194

2шт.

4

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone, Start Serial: 14195

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner, Serial Range: -14194

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup, Start Serial: 14195

2шт.

6

399468R11

HUB ASSY, front wheel, also order fitting, 19700R91, composed of (1) bearing 371883R1, (1) bearing 618024R1, (1) hub 399468R1 (NSS), (1) retainer 48548D, Serial Range: -14194

2шт.

19700R91

FITTING

3/8-45 deg angle drive, type lub

2шт.

6

531746R11

HUB ASSY, front wheel, composed of (1) bearing 618024R1, (1) bearing 619387R1, (1) hub 531746R1 (NSS), (1) retainer 48703D, Start Serial: 14195

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

2шт.

7

371883R1

BEARING CUP

Front wheel outer, Serial Range: -14194

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer, Start Serial: 14195

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Front wheel outer, Serial Range: -14194

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone, Start Serial: 14195

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer, Serial Range: -14194

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex., front wheel, Serial Range: -14194

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex., front wheel, Start Serial: 14195

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 cd-pltd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

386081R1

WHEEL

front inner half, double disc type 6.00F-10 for 9.00-10 tire

2шт.

14

386082R1

WHEEL

front outer half, double disc type 6.00F-10 for 9.00-10 tire

2шт.

120371

NUT,1/2"-20, G5

12шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul, consists of (1) cone 371882R91, (1) cone 618023R91, (1) cup 371883R1, (1) cup 618024R1, (1) gasket 369860R1, (1) oil seal 48539DA, (1) retainer 48548D, Serial Range: -14194

2шт.

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 619386R91, (1) cone 618023R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D, Start Serial: 14195

2шт.

Выбрано товаров: 35
