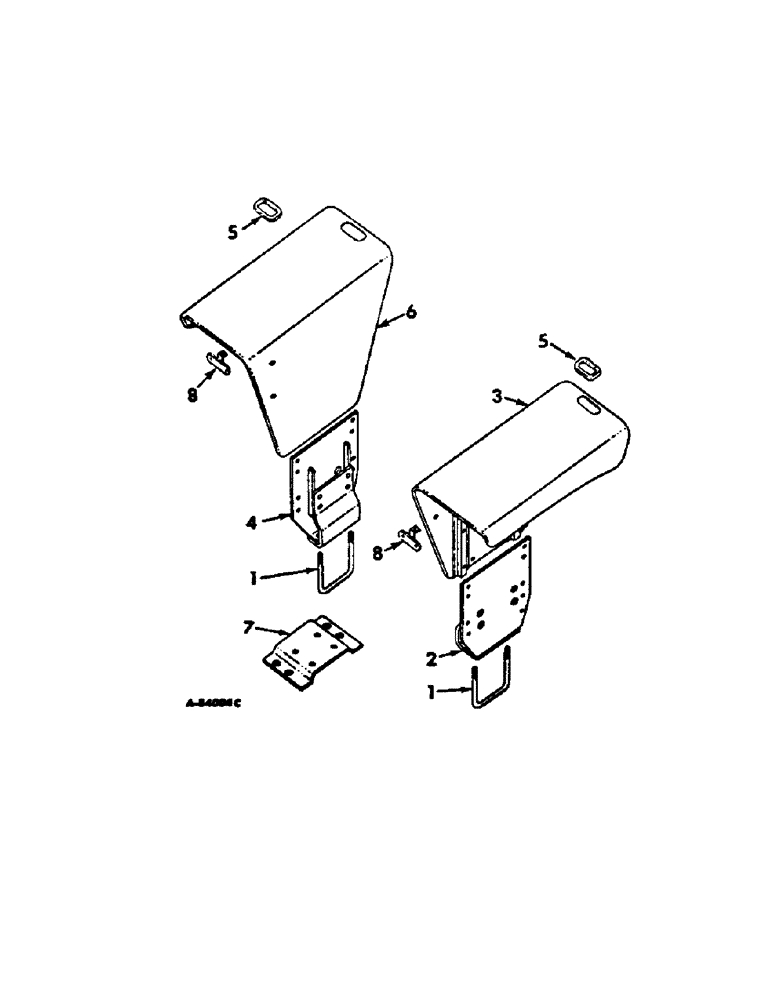

Запчасти Case IH 544 (A-20) - CHASSIS, RADIATOR AND SHEET METAL, DELUXE FLAT TOP FENDERS, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

1

389262R2

BOLT,3/4" - 10 x 6.70" W x 8" L

fender mounting U

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

584253R1

WASHER

.781 x 1.75 x .188 flat

4шт.

2

399340R1

SUPPORT ASSY, fender mounting RH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 C-Z

4шт.

3

403560R1

FENDER ASSY, RH, tractors w/protective frame

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

1шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 C-Z hex-hd cap

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

4шт.

3

399329R2

FENDER ASSY, RH

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 C-Z hex-hd cap

2шт.

4

399339R1

SUPPORT ASSY, fender mounting LH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 C-Z hex-hd cap

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 C-Z

4шт.

5

388940R1

GRIP

fender handle

2шт.

6

403559R1

FENDER ASSY, LH, tractors w/protective frame

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

1шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 C-Z hex-hd cap

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

4шт.

6

399328R2

FENDER ASSY, LH

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 C-Z hex-hd cap

2шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

535863R1

BRACKET ASSY, reflector mounting, tractors without protective frame, Start Serial: 14690

2шт.
