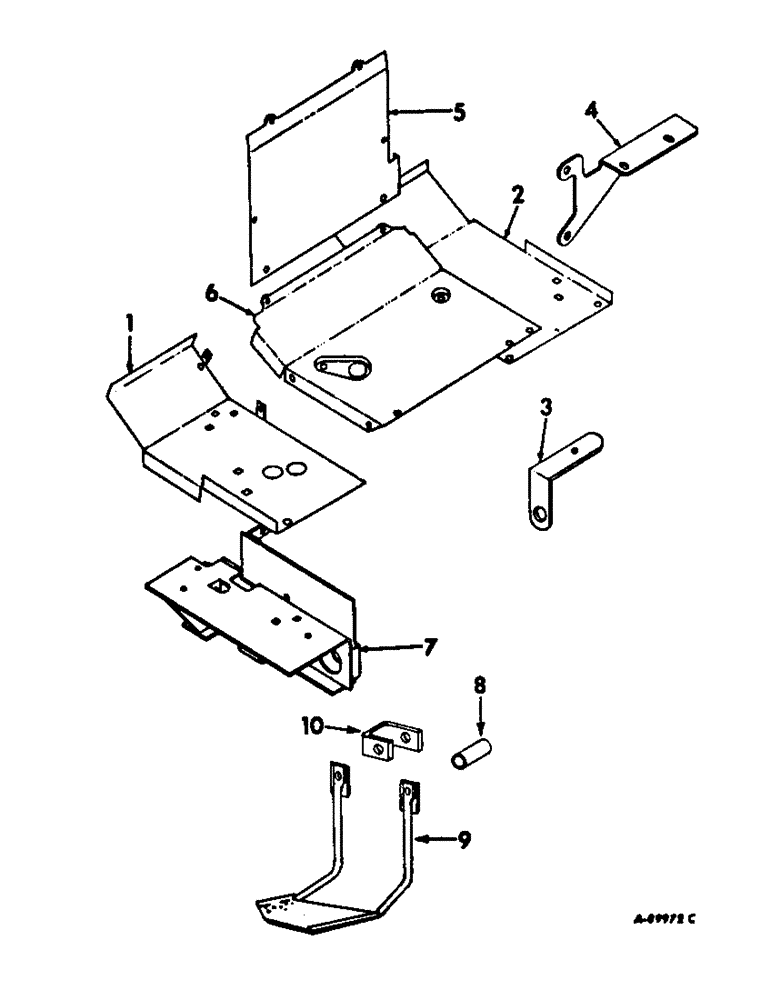

Запчасти Case IH 544 (A-17) - CHASSIS, RADIATOR AND SHEET METAL, INTERNATIONAL HYDROSTATIC DRIVE TRACTORS Chassis, Radiator & Sheet Metal

1

403327R21

PLATFORM, LH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

2

403328R21

PLATFORM, RH

1шт.

14993R1

BOLT, 1/4-20 x 3/4 sq-nk crg

3шт.

109084

NUT,1/4"-20, G5

3шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

3

398748R2

SUPPORT, rear platform

1шт.

4

399519R2

SUPPORT, platform front RH

1шт.

5

399664R1

PANEL ASSY, platform front, all carbureted engine tractors, diesel engine tractors, Serial Range: -14271

1шт.

5

530760R1

PANEL ASSY, platform front, diesel engine tractors, Start Serial: 14272

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-rd-hd mach

2шт.

6

538589R1

PLATFORM w/product graphic, center

1шт.

432742R1

SPACER

3/8 x 2-1/8 std pipe

2шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

SCREW, 7/16-14 x 3-3/4 C-Z hex-hd cap

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

7

534841R1

SUPPORT ASSY, LH platform, will work for 399516R2, also order switch, 532682R1, Serial Range: -16252

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

3/8-16 x 2 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 hex-hd cap

2шт.

106268

WASHER,3/4"

2 x 13/16

1шт.

8

22850R1

SPACER, 1-1/4 x 2-3/4 pipe, row crop tractors

1шт.

9

401844R1

STEP ASSY, mounting, row crop tractors

1шт.

220081

NUT

3/4-10 hex.

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

531531R1

BRACKET, mounting set, row crop tractors

1шт.

271608

PIVOT

SCREW, 3/4-10 x 1-5/8 hex-hd cap

1шт.

397235R1

TREAD, non-skid

1шт.
