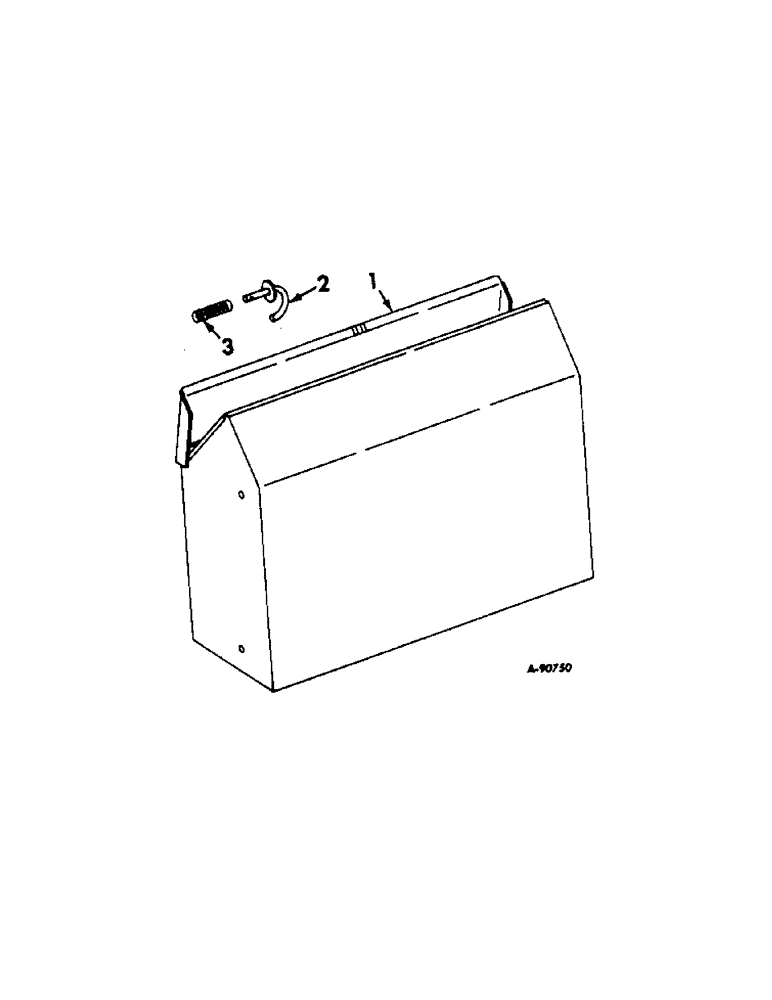

Запчасти Case IH 544 (M-08) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, TOOL BOX, INTERNATIONAL TRACTORS (10) - OPERATORS PLATFORM

1

528115R1

BOX ASSY, tool, replaces 403635R1

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 slt-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

2

394142R11

KEY ASSY, tool box

1шт.

3

360728R1

VALVE SPRING

SPRING, tool box key

1шт.

395-31022

WASHER,#10

WASHER, 13/64 x 15/32 x .036

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 cot.

1шт.

371052R11

COVER

ASSY, access hole

2шт.
