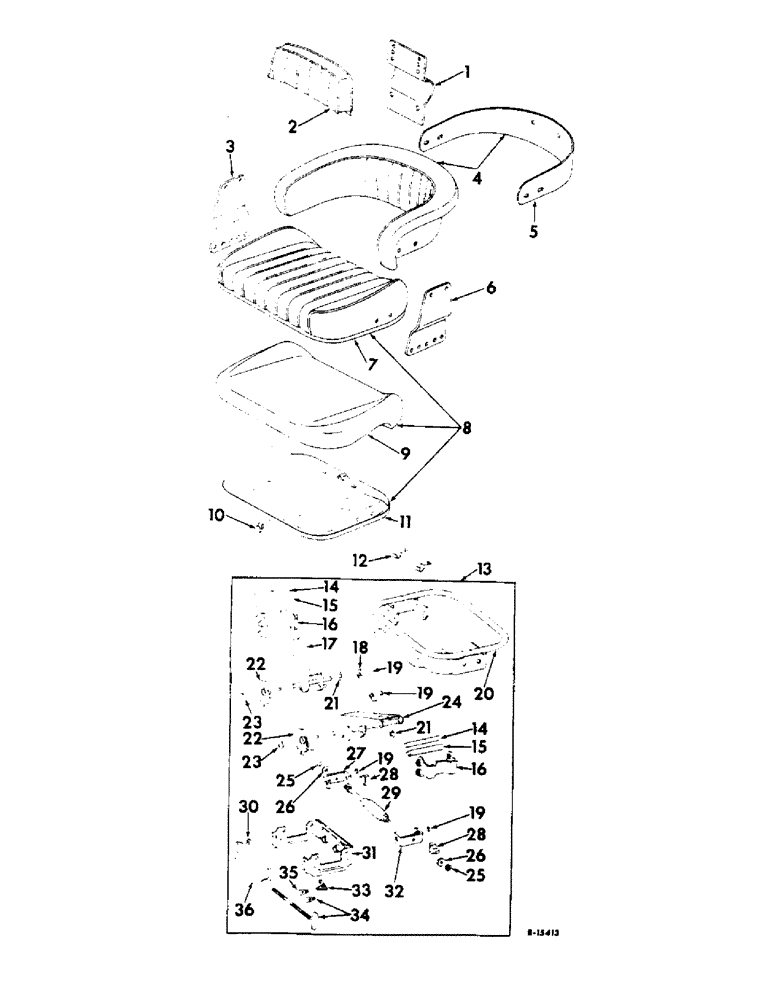

Запчасти Case IH 544 (M-06) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, VERTICAL ACTING SEAT, FARMALL TRACTORS (10) - OPERATORS PLATFORM

1

387178R1

SUPPORT

upper back cushion

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 C-Z hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

387177R92

CUSHION ASSY.

CUSHION ASSY, upper back

1шт.

3

387173R1

SUPPORT

back cushion RH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

4

387174R91

CUSHION

ASSY, back

1шт.

5

387175R1

LARGE PLATE

PLATE, cover

1шт.

161857

SHAFT

8-15 x 3/8 cr-rec pan-hd type A tapping

3шт.

6

387172R1

SUPPORT

back cushion LH

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

7

NSS

NOT SOLD SEPARAT

COVERING, not serviced separately order cushion assy, 400711R1

1шт.

8

400711R1

SEAT CUSHION

CUSHION ASSY, seat

1шт.

9

NSS

NOT SOLD SEPARAT

COVERING, not serviced separately order cushion assy, 400711R1

1шт.

10

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

11

NSS

NOT SOLD SEPARAT

COVERING, not serviced separately order cushion assy, 400711R1

1шт.

12

379321R1

CLAMP,27.74mm ID, 8.71mm Bolt Hole, J Type

seat

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

379319R94

SUSPENSION

ASSY, vertical acting

1шт.

14

380722R1

SHAFT

short link upper

2шт.

443039

PIN

1/4 x 1-1/4 type 3 groove

2шт.

15

380723R1

SHAFT

short link lower

2шт.

443148

GROOVED PIN,3/16" x 1", Type E

PIN - grooved, 3/16" x 1", Type E

2шт.

16

380721R1

DRAG LINK

LINK, short

2шт.

17

380713R1

LEVER

LH spring

1шт.

18

380717R1

LINK

stabilizer

1шт.

19

370290R1

SNAP RING,#50, .392" Dia, E-Type

RING- retaining, #50, .392" Dia, E-Type

4шт.

20

380724R3

FRAME

hanger

1шт.

21

380718R1

WASHER

49/64 x 1-1/4 x 14 ga

2шт.

22

380712R1

INSULATOR BLOCK

SPRING, rubber

2шт.

23

193643R1

BUSHING,19.18mm ID x 25.4mm OD x 14.29mm L

BEARING, flanged

2шт.

24

380714R1

LEVER

RH sping

1шт.

25

SL716

WASHER

13/32 x 1-1/8 x 14 ga

2шт.

26

381239R1

RUBBER WASHER

rubber

2шт.

27

380716R1

YOKE

BRACKET, RH shock

1шт.

28

381238R1

BUMPER

rubber

2шт.

29

372751R91

SHOCK ABSORBER

ABSORBER, shock

1шт.

274635

PIN

NUT, 3/8-24 C-Z hex. lock

2шт.

30

380720R1

BOLT,5/16"- 18 x 0.75"

front bulkhead

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

380711R2

HOUSING

spring

1шт.

32

380715R1

YOKE

BRACKET, LH shock

1шт.

33

380726R1

SPRING

INDICATOR, weight

1шт.

34

380725R91

STUD

ASSEMBLY, adjuster

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

PIN - grooved, 1/8" x 1", Type A

2шт.

35

372739R1

PIN, adjusting

1шт.

36

380719R1

SUPPORT

BULKHEAD, front

1шт.

404228R1

SAFETY BELT, Seat retainer, Attachment, Tractors w/protective frame

1шт.

2751019R1

DECAL

PRODUCT GRAPHICS, seat adj decal

1шт.
