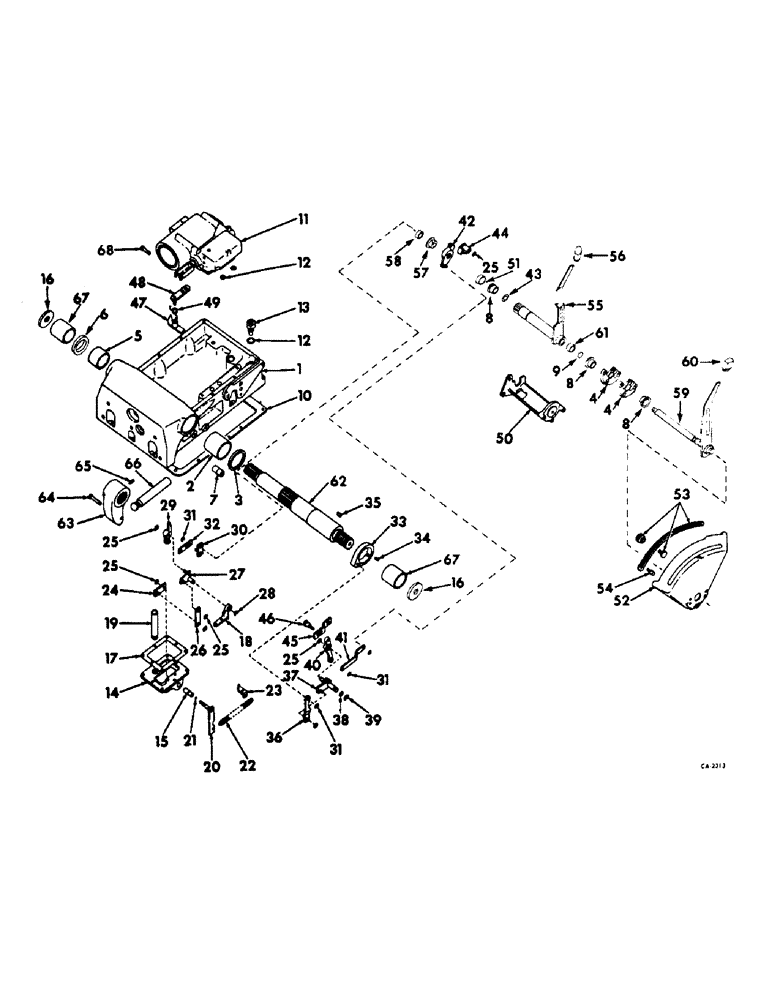

Запчасти Case IH 544 (F-27) - HYDRAULICS SYSTEM, HYDRAULIC DRAFT CONTROL, FARMALL TRACTORS WITH SERIAL NO. 14292 AND ABOVE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
532508R91
HOUSING ASSY, hyd draft control lift, composed of (1) bearing 376009R1, (1) bushing 376010R1, (1) bushing 537118R1, (1) housing 532510R1 (NSS), (1) retainer 376015R1 (NSS), (1) tube 376007R1 (NSS)
1шт.
172557
PLUG
1-3/16 expansion
1шт.
2
376009R1
BEARING LINER,2.32" ID x 2.438" OD x 2.6"
rockshaft RH
1шт.
3
376020R91
OIL SEAL
SEAL, rockshaft RH oil
1шт.
4
532521R1
SUPPORT
position control bearing
2шт.
192009
NUT, 5/16-24 sq
2шт.
532409R1
SPRING WASHER
safety spring
2шт.
5
537118R1
BUSHING
rockshaft LH
1шт.
6
376019R91
PACKING RING
SEAL, rockshaft LH oil
1шт.
7
376010R1
BUSHING
eccentric shaft
1шт.
8
532395R1
BUSHING,19.07mm ID x 20.63mm OD x 16.64mm L
BEARING, control shaft
3шт.
9
379365R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3/8 x 1/2 x 1/16, draft sensitivity control shaft
1шт.
10
375577R1
GASKET
hyd lift housing lower
1шт.
11
NSS
NOT SOLD SEPARAT
CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder & valve
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
2шт.
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
SCREW, 1/2-13 x 1-3/4 hex-hd cap
1шт.
179894
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2-13 x 3-1/2 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
17/32 x 1-1/16 x .074
1шт.
12
380339R1
O-RING, 7/8 x 1-1/16 x 3/32
3шт.
13
382606R91
LOCK VALVE
VALVE ASSY, hitch system relief
1шт.
14
389608R11
HOUSING ASSY, draft sensing pickup arm
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
8шт.
15
389609R1
BUSHING, draft sensing pickup arm
1шт.
16
M22352
WASHER, rockshaft arm retainer
2шт.
271557
DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5
SCREW, 5/8-11 x 1-3/8 hex-hd cap
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
17
376983R1
GASKET
unit housing cover
1шт.
18
389610R2
BRACKET
eccentric
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
19
389611R1
PIPE, oil overflow
1шт.
20
389612R11
ARM
ASSY, draft sensing pickup
1шт.
21
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk, Draft sensing pickup arm
1шт.
22
394240R2
SPRING
draft control operating
1шт.
23
390802R1
ANCHOR, draft control operating spring
1шт.
24
389616R11
LEVER ASSY, draft sensing pickup arm
1шт.
25
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, #37, .300" Dia, E-Type
6шт.
26
389618R1
BAR
eccentric to draft sensing pickup link
1шт.
27
389619R11
BAR
PLATE ASSY, draft sensing eccentric
1шт.
28
204502R1
SNAP RING,#43, Ext
Eccentric shaft #43, Ext
1шт.
29
389620R21
LEVER
ASSY, draft control trigger
1шт.
30
389622R11
LEVER
ASSY, draft sensitivity control
1шт.
19313R1
PIN,5/32" x 7/8", Coiled
1шт.
31
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, , Link to lever #X31, .243" Dia, E-Type
5шт.
32
389621R1
BAR, Serial Range: trigger-quadrant
1шт.
33
376031R11
HUB
ASSY, rockshaft actuating
1шт.
34
377792R1
SET SCREW
SCREW, rockshaft hub set
1шт.
35
376057R1
BUCKET TOOTH KEY
KEY, rockshaft actuating hub
1шт.
36
376033R1
BRACKET
LINK, position control walking
1шт.
37
389623R91
ECCENTRIC
ASSY, position control
1шт.
38
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16, eccentric shaft
1шт.
39
971043R1
SNAP RING,#50, Ext
Eccentric shaft #50, Ext
1шт.
40
376038R11
BEAM
ASSY, walking follow-up
1шт.
41
376042R2
SUPPORT
LINK, walking, Serial Range: beam-quadrant
1шт.
42
376043R21
LEVER
ASSY, slow motion actuating
1шт.
102435
PIVOT
SCREW, 1/4-20 x 1-1/4 sq-hd ov-pt set
1шт.
43
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 x 3/32, position control shaft
1шт.
44
376044R11
ARM
ASSY, draft retarding
1шт.
45
376984R1
SUPPORT
LINK, walking, Serial Range: beam-valve
1шт.
46
376041R1
SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet
Shoulder
1шт.
47
391244R11
LEVER
ASSY, hydraulic switch
1шт.
48
402448R1
BAR
ASSY, hydraulic switch, draft sensing
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
49
390824R1
SPRING
hyd switch return
1шт.
50
532512R1
SUPPORT
quadrant
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
51
532520R1
SPACER
SUPPORT, quadrant
1шт.
52
376985R2
SECTOR
QUADRANT, control
1шт.
532518R1
SPACER, quadrant
3шт.
179807
SCREW,Hex, 1/4" - 20 x 2 1/2"
1/4-20 x 2-1/2 hex-hd cap
3шт.
53
378619R11
GUIDE
ASSY, touch control handle
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 hex-hd cap
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
54
378620R1
STOP
quadrant lever
1шт.
144417H
NUT,1/4"-28, GB
1/4-28 ESNA stop
1шт.
55
538987R1
HANDLE
ASSY, position control
1шт.
56
382801R1
BALL
KNOB, position control handle
1шт.
57
863138R91
PLASTIC RING
BEARING, sensitivity shaft
1шт.
58
532406R1
WASHER
SPACER, sensitivity lever
1шт.
59
532516R1
HANDLE
ASSY, draft sensitivity control
1шт.
60
382805R1
KNOB
draft sensitivity control handle
1шт.
61
532408R1
PLASTIC RING
BEARING, sensitivity control shaft
1шт.
62
389971R1
ROCKSHAFT, hyd draft control
1шт.
63
389628R1
LEVER
rockshaft bellcrank
1шт.
64
389280R1
PIN
bellcrank connecting rod
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
16558R1
WASHER
17/64 x 5/8 x .049
1шт.
65
376069R1
SET SCREW
SCREW, hyd draft control piston
1шт.
67
389972R1
SHIELD
rockshaft spline
2шт.
68
130368H
PIN
1/4 x 1-11/16 rod end
1шт.
NLS
NO LONGER SERVICED
PIN, 1/16 x 1/2 cot.
1шт.
16558R1
WASHER
17/64 x 5/8 x 18 ga
1шт.
Выбрано товаров: 101
