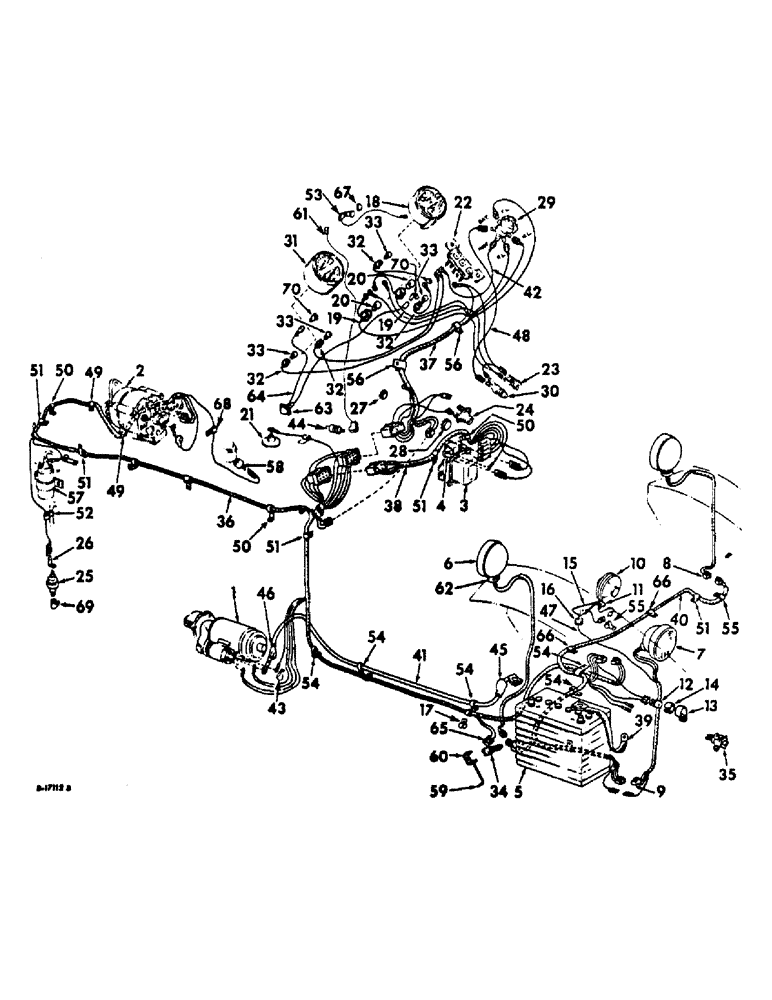

Запчасти Case IH 544 (G-17) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

2

NSS

NOT SOLD SEPARAT

ALTERNATOR-GENERATOR, refer to alternator generator and connections listing, this section

1шт.

3

NSS

NOT SOLD SEPARAT

VOLTAGE REGULATOR, refer to alternator generator and connections listing, this section

1шт.

4

1960890

RESISTOR

RESISTANCE UNIT

1шт.

5

IHPF24

WET BATTERY

low-maintenance 12 volt, gear drive tractors

1шт.

5

IHCM24

DRY BATTERY

low-maintenance 12 volt, hydrostatic drive tractors

1шт.

6

402080R91

LIGHT ASSY, head, only serviceable items are sealed beam unit, 535850R1 & retainer, 676078R1

2шт.

7

402079R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit, 394770R1 & retainer, 676078R1

1шт.

8

872291R1

CONNECTOR, ELEC

CONNECTOR, headlight

2шт.

9

266516C1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

10

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 amber lens, 899280R1, or red lens, 899279R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

11

394262R1

WASHER

GASKET, flashing warning light

1шт.

12

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

13

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

14

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

15

402490R1

BRACKET, flasher warning light

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

363846R1

GROMMET

flasher warning light bracket

1шт.

17

362121R1

CLIP

safety switch cable harness, gear drive tractors

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, safety switch cable harness, hydrostatic drive tractors

1шт.

18

NSS

NOT SOLD SEPARAT

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

19

376856R91

SOCKET

ASSY, oil and amp Tellite

1шт.

20

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

2шт.

21

NSS

NOT SOLD SEPARAT

SENDING UNIT ASSY, electric fuel gauge, refer to fuel tank supports and piping listing, section E

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

23

NSS

NOT SOLD SEPARAT

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

24

NSS

NOT SOLD SEPARAT

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

25

392249R92

SWITCH

engine oil pressure

1шт.

26

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch angle

1шт.

27

374342R1

PLUG

horn switch hole button

1шт.

28

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

29

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

30

NSS

NOT SOLD SEPARAT

FUSE HOLDER, refer to engine control and instruments listing, section H

1шт.

31

NSS

NOT SOLD SEPARAT

SPEEDOMETER, tachometer assy, refer to engine controls and instruments listing, section H

1шт.

32

376853R91

SOCKET

ASSY, instrument light

2шт.

33

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895 12 volt

4шт.

34

537641R1

SWITCH ASSY

safety starting, will work for 1993536, gear drive tractors

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, safety starting switch

1шт.

34

382728R91

SWITCH

ASSY, safety starting, hydrostatic drive tractors, Serial Range: -16252

1шт.

34

532682R1

SWITCH

ASSY, neutral starting, hydrostatic drive tractors, Start Serial: 16253

1шт.

35

NSS

NOT SOLD SEPARAT

SOCKET ASSY, electric breakway, refer to electric breakway socket listing, this section

1шт.

36

405298R1

HARNESS

ASSY, main cable, replaces 402078R91

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

2шт.

36

406676R1

HARNESS ASSY, main cable, tractors with magnetic pulse ignition attachment

1шт.

37

405285R1

HARNESS

ASSY, panel cable, replaces 402075R1

1шт.

38

405266R1

HARNESS

ASSY, voltage regulator, replaces 397828R1

1шт.

39

389028R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

40

405286R1

HARNESS ASSY, fender cable, Serial Range: -13426

1шт.

40

406694R1

HARNESS ASSY, fender cable, Start Serial: 13427

1шт.

41

395940R1

CABLE

ASSY, battery to solenoid switch

1шт.

42

405222R1

CABLE

ASSY, lighting switch to junction block, replaces 404399R1

1шт.

43

399470R1

BOOT

INSULATOR, terminal boot

1шт.

44

539280R1

SWITCH

ASSY, transmission oil temperature, hydrostatic drive tractors, Start Serial: 16789

1шт.

45

383619R1

COVER

battery cable terminal large

1шт.

46

364910R1

BOOT

COVER, battery cable terminal large

1шт.

47

405226R1

CABLE ASSY, warning light, replaces 403296R1

1шт.

48

404419R1

CABLE ASSY, fuse to light switch

1шт.

49

363660R1

CLIP

main cable harness

2шт.

50

370383R1

CLIP

panel cable harness angle

3шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

51

362123R1

CLIP

fender cable harness

5шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

52

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

53

392441R91

LIGHT

ASSY, transmission oil, temperature warning, hydrostatic drive tractors, Start Serial: 16789

1шт.

54

362666

CLIP, main cable harness & battery cable

4шт.

55

358986R1

CABLE CLIP

CLIP, fender cable harness

3шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

56

384557R1

CLIP

panel cable harness

2шт.

57

NSS

NOT SOLD SEPARAT

IGNITION COIL, refer to eng-1 parts catalog

1шт.

58

NSS

NOT SOLD SEPARAT

CARBURETOR, refer to eng-1 parts catalog

1шт.

59

379343R1

ARM, safety starting switch control, gear drive tractors

1шт.

60

375473R1

BRACKET, safety starting switch control, gear drive tractors

1шт.

375474R1

NUT, safety starting switch control arm bracket

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

60

528209R1

BRACE ASSY, safety starting switch bracket, tractors w/foot operated control

1шт.

404745R2

STRIP, safety starting switch bracket mounting

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

372311R1

SCREW, 5/16-18 x 3/4 washer-hd cap

1шт.

61

539279R1

CABLE ASSY, temperature warning switch, hydrostatic drive tractors, Start Serial: 16789

1шт.

62

370307R1

SEAT

light mounting ball

3шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 C-Z thick flat

3шт.

120371

NUT,1/2"-20, G5

3шт.

63

399232R91

LIGHT

ASSY, hydrostatic control

1шт.

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

6-32 x 5/8 C-Z cr-rec pan-hd mach

2шт.

446130

WASHER,#8

11/64 x 13/32 x 18 ga C-Z

2шт.

134530

NUT,Hex, #6 - 32

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

64

404399R1

CABLE ASSY, hydrostatic control light ground

1шт.

65

403514R1

CONNECTOR, single short, gear drive tractors

2шт.

65

403515R1

CONNECTOR, mult., 2 unit, hydrostatic drive tractors

1шт.

66

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender harness

2шт.

67

432487

HOLE PLUG BUTTON,11/16"

PLUG, C-Z panel button, gear drive tractors, Start Serial: 16789

1шт.

68

384556R1

CLAMP

CLIP, on governor housing

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

69

444162

ELBOW

1/8 street-oil pressure switch

1шт.

70

365501R1

TERMINAL CONNECTOR

TERMINAL, hydrostatic control light

2шт.
