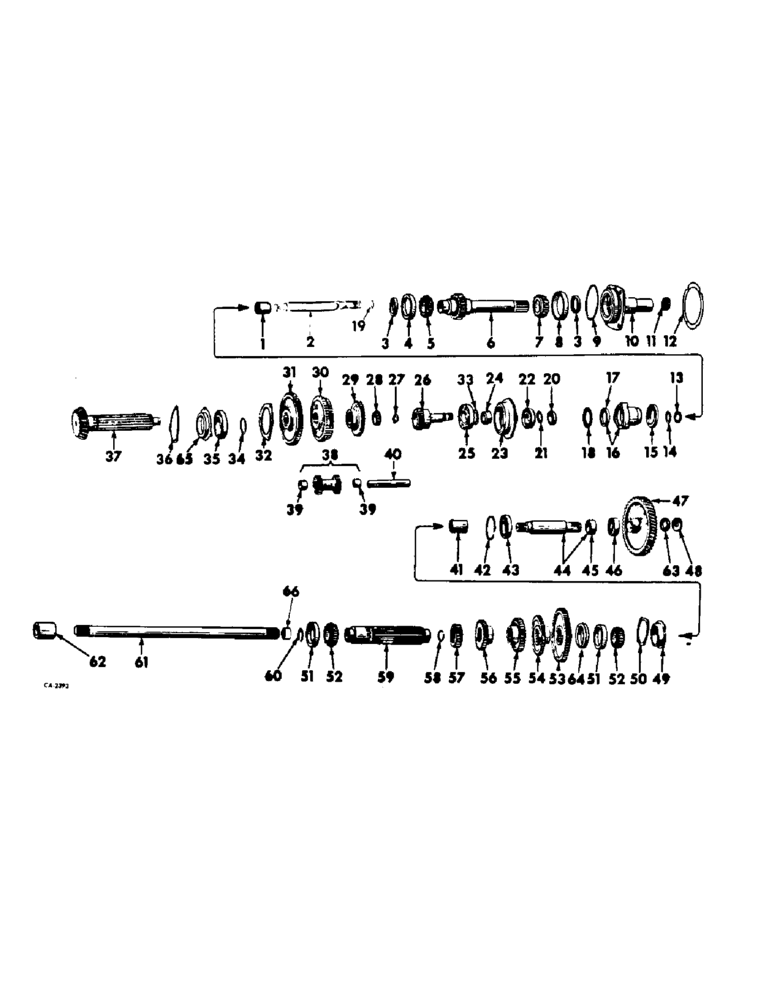

Запчасти Case IH 544 (B-15) - POWER TRAIN, TRANSMISSION AND POWER TAKE-OFF DRIVE, INTERNATIONAL GEAR DRIVE TRACTORS (03) - POWER TRAIN

1

358878R1

SLEEVE

COUPLING, transmisison drive shaft

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

2

360491R5

SHAFT

clutch

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

3

363514R93

OIL SEAL

IPTO drive gear oil

2шт.

Not used on tractors with forward and reverse drive

1шт.

4

374167R1

CUP ASSY.

BEARING, PTO drive shaft rear cup

1шт.

Not used on tractors with forward and reverse drive

1шт.

5

G15215

ROLLER BEARING

BEARING ASSY, PTO drive shaft rear cone

1шт.

Not used on tractors with forward and reverse drive

1шт.

6

398738R1

SHAFT, independent PTO drive, 25 T, tractors w/1000 RPM PTO

1шт.

Not used on tractors with forward and reverse drive

1шт.

6

396214R1

SHAFT

independent PTO drive, 22 T, tractors w/540 RPM IPTO

1шт.

7

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, PTO drive shaft front cone

1шт.

8

ST987

BEARING CUP

BEARING, PTO drive shaft front cup

1шт.

9

252556R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

5-1/4 x 5-1/2 x 1/8, IPTO drive shaft bearing cage

1шт.

10

388674R1

CAGE

power take-off drive shaft, bearing

1шт.

Not used on tractors with forward and reverse drive

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

11

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot ball

1шт.

11

524598R91GV

BEARING

Value, Ball Bearing

1шт.

12

388676R1

SHIM

PTO drive shaft brg, .007

1шт.

13

358876R1

LOCK NUT

drive shaft lock

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

14

358875R1

WASHER

drive shaft nut

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

15

361248R92

OIL SEAL

transmission drive shaft front bearing retainer oil

1шт.

16

360739R1

HUB

RETAINER, transmission drive shaft front oil seal

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

400842R91

OIL SEAL

transmission drive shaft oil

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

18

360741R1

WASHER

SPACER, transmission driving shaft bearing retainer

1шт.

Not used on tractors with torque amplifier

1шт.

19

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, clutch shaft

1шт.

20

360740R1

BUSHING

SPACER, transmission drive shaft

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

21

164513R1

O-RING

1-3/8 x 1-5/8 x 1/8, transmission drive shaft spacer

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

22

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, transmission drive shaft front ball

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

23

360496R1

CAGE

transmission drive shaft bearing

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

24

360493R1

BUSHING

SPACER, drive shaft brg roller, roller

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

25

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, drive shaft rear ball

1шт.

26

378803R1

SHAFT, transmission drive, 22 teeth

1шт.

Not used on tractors with torque amplifier

1шт.

Not used on tractors with forward and reverse drive

1шт.

27

369875R1

RING, SNAP

RING, transmission drive shaft pilot bearing snap

1шт.

28

378810R91

ROLLER BEARING,0.5843" ID x 2.1021" OD x 1"

transmission main shaft pilot roller

1шт.

29

530453R1

GEAR

fourth and fifth speed sliding, 20 and 34 teeth

1шт.

30

374289R1

GEAR

second and third speed sliding 47 to 43 teeth

1шт.

31

368888R1

GEAR

first and reverse speed sliding, 59 teeth

1шт.

31

360573R1

GEAR

first and reverse sliding, 55 T, tractors w/high speed first and reverse drive

1шт.

32

360572R1

RETAINER, main shaft rear bearing

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

1шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

2шт.

33

396846R1

WASHER, drive shaft

1шт.

34

357194R1

RING

transmission main shaft rear bearing snap

1шт.

35

279454R91

BEARING ASSY,2.3622" ID x 4.3275" OD x 0.8661"

main shaft rear roller

1шт.

36

360571R1

SHIM

main shaft rear brg retainer, .030

1шт.

36

360570R1

SHIM

main shaft rear brg retainer, medium

1шт.

36

363751R1

SHIM

main shaft rear brg retainer, extra light

1шт.

36

360569R1

SHIM

main shaft rear brg retainer, light

1шт.

37

400935R1

SHAFT, transmission main, 15 teeth

1шт.

37

527577R1

SHAFT, transmission main drive bevel pinion, 13 T, International row crop tractors

1шт.

38

368890R11

GEAR ASSY, reverse idler

1шт.

Not used on tractors with torque amplifier

1шт.

38

371240R11

GEAR ASSY, reverse idler, tractors w/high speed first and reverse drive

1шт.

39

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

40

388169R1

SHAFT

reverse idler

1шт.

Not used on tractors with forward and reverse drive

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, , ESNA 3/8" x 2", Slotted

1шт.

181354

BOLT

SCREW, 3/8-24 x 1/2 hex-hd cap

1шт.

Q1597

WASHER

13/32 x 3/4 x .065

1шт.

41

359912R2

COUPLING

power take-off drive shaft front

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

42

393148R1

RING

power take-off driven shaft rear bearing snap

1шт.

43

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, power take-off driven shaft rear ball

1шт.

44

389535R11

SHAFT

ASSY, independent PTO driven front

1шт.

45

360664R1

RACE

power take-off driven shaft front inner needle bearing

1шт.

46

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

power take-off driven shaft front inner needle

1шт.

47

389537R1

GEAR

independent PTO driven, 81 teeth

1шт.

47

607711C1

GEAR, independent PTO driven, 56 teeth, tractors w/standard transmission and 1000 RPM IPTO

1шт.

Not used on tractors with forward and reverse drive

1шт.

48

354617R1

WASHER

independent PTO driven gear retaining

1шт.

389259R1

BOLT,Hex, 1/2" - 20 x 1.84", Gr 4

IPTO driven gear retaining

1шт.

49

388153R1

CAGE, countershaft front bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

50

388154R1

SHIM

countershaft front brg, .030

1шт.

50

388155R1

SHIM

countershaft front brg, .012

1шт.

50

388156R1

SHIM

countershaft front brg, .007

1шт.

50

388157R1

SHIM

countershaft front brg, .005

1шт.

51

374167R1

CUP ASSY.

BEARING, countershaft cup

2шт.

52

G15215

ROLLER BEARING

BEARING ASSY, countershaft cone

2шт.

53

400259R1

GEAR

constant mesh, 61 teeth

1шт.

54

530454R1

GEAR

fourth speed driving, 47 teeth

1шт.

55

374288R2

GEAR

third speed driving, 38 teeth

1шт.

56

360562R1

WHEEL

GEAR, second speed driving, 34 teeth

1шт.

57

368886R1

GEAR

first speed driving, 20 teeth

1шт.

57

360561R1

GEAR, first speed driving, 26 teeth, tractors w/high speed first and reverse drive

1шт.

58

375374R1

RING

countershaft snap

1шт.

59

400673R1

SHAFT

COUNTERSHAFT, transmission

1шт.

59

403523R11

COUNTERSHAFT ASSY, tractors w/transmission driven IPTO

1шт.

60

659676R1

SNAP RING,3.156", Int, #315

RING - snap, , countershaft rear brg 3.156", Int, #315

1шт.

61

395132R11

SHAFT ASSY, PTO extension

1шт.

62

360168R1

COUPLING,12T

extension shaft

1шт.

63

395082R1

RING

independent PTO driven gear wedge

1шт.

64

400932R1

SPACER, constant mesh gear

1шт.

65

360568R1

CAGE, main shaft rear bearing

1шт.

66

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, tractors w/transmission driven independent PTO

1шт.

407217R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant, gallon can

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
