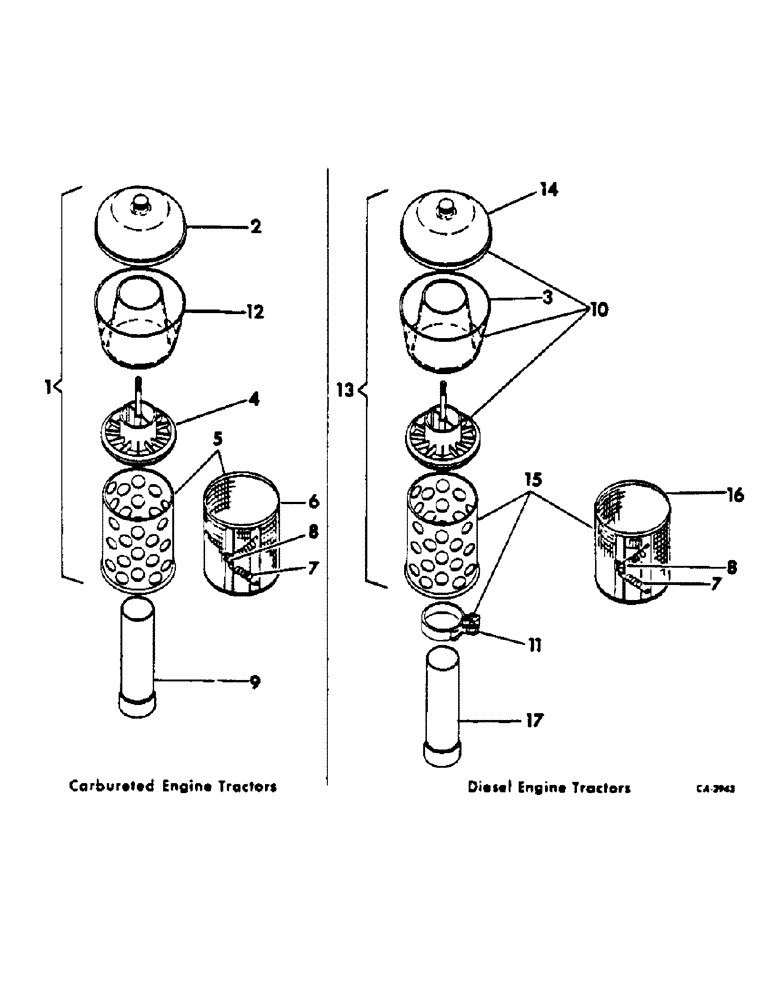

Запчасти Case IH 544 (E-14) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER, INTERNATIONAL TRACTORS (02) - FUEL SYSTEM

1

379660R91

CLEANER

PRE-CLEANER & SCREENER ASSY

1шт.

2

362999R91

COVER

ASSY, pre-cleaner

1шт.

3

365413R1

BOWL

BODY, pre-cleaner

1шт.

4

363003R91

SLEEVE

ASSY, pre-screener, unit A

1шт.

5

381602R91

PRE-SCREENER ASSY, includes clamp, 270529C91

1шт.

120619

NUT

10-24 sq-hd screw

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 rd-hd mach

1шт.

6

353637R91

SCREEN

ASSY, pre-screener

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

8

353758R1

CLIP

screen lock spring

1шт.

9

379671R1

EXTENSION, air cleaner pipe

1шт.

10

321190R91

CLEANER

PRE-CLEANER ASSY

1шт.

11

270529C91

CLAMP ASSY, pre-screener

1шт.

120619

NUT

10-24 sq-hd screw

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 rd-hd mach

1шт.

12

363000R1

BODY

pre-cleaner

1шт.

13

677788R91

PRECLEANER

PRE-CLEANER & SCREENER ASSY

1шт.

14

365412R91

COVER

ASSY, pre-screener

1шт.

15

850156C91

PRE-SCREENER ASSY

1шт.

16

378724R91

SCREEN

ASSY, pre-screener

1шт.

17

404264R1

EXTENSION, air cleaner pipe

1шт.
