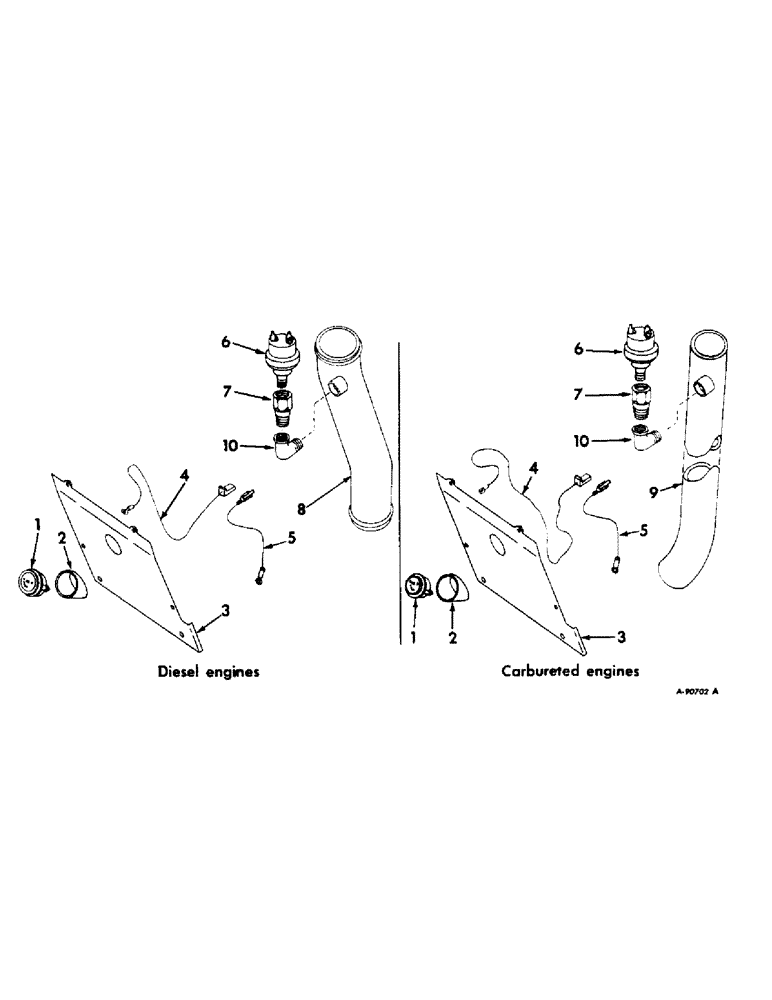

Запчасти Case IH 544 (E-13) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR, INTERNATIONAL TRACTORS (02) - FUEL SYSTEM

402391R91

PARTS ACCESSORY, electric air cleaner, consists of reference nos. 1, 4 - 7 and 10, indicator

1шт.

1

389871R91

GAUGE

INDICATOR ASSY, electric air cleaner

1шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

3

NSS

NOT SOLD SEPARAT

PANEL ASSY, platform center, refer to platforms and supports listing, section A

1шт.

4

405208R1

CABLE ASSY, junction block, will work for 367047R91

1шт.

5

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, will work for 377120R92

1шт.

6

389682R91

SWITCH

electric air cleaner vacuum

1шт.

7

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

8

402503R1

HOSE, air cleaner outlet

1шт.

9

402498R1

TUBE ASSY, air, Serial Range: cleaner-carburetor

1шт.

10

444163

ELBOW

1/8-27 90 deg autom pipe street

1шт.
