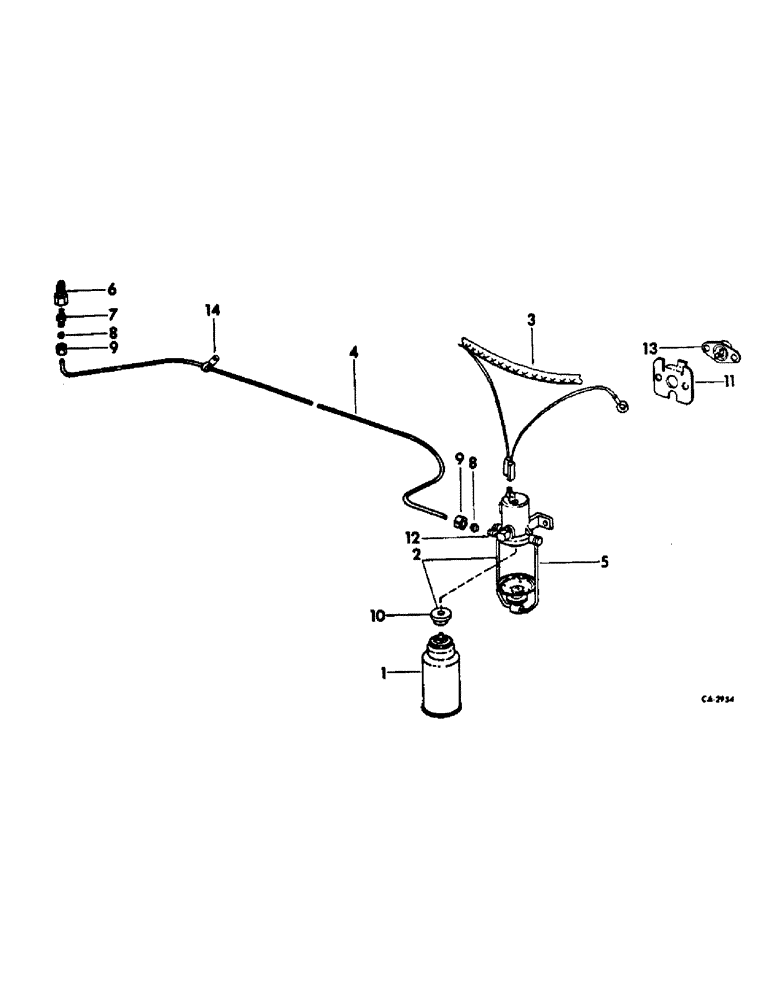

Запчасти Case IH 544 (E-11) - FUEL SYSTEM, ETHER STARTING, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

385064R91

FLUID

ether starting, 12 oz. can

1шт.

2

393719R92

NOZZLE

SOLENOID ASSY, ether starting, farmall serial no. 14455 & below, international serial no. 15925 & below, only servceable items are bail assy, 404247R1 & gasket, 395686R1

1шт.

2

533231R91

NO LONGER SERVICED

SOLENOID ASSY, ether starting, farmall serial no. 14456 & above, international serival no. 15926 & above, only serviceable items are bail assy, 404247R1 & gasket, 395686R1

1шт.

19803R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 2

1/4-20 x 7/8 C-Z hex-hd mach, Farmall tractors

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Farmall tractors 1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Farmall tractors 1/4"

2шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

International tractors Hex, 5/16"-18 x 11/16", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , International tractors 5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

HARNESS ASSY, main cable, refer to starting and lighting listing, section G

1шт.

4

402027R2

TUBE, starting fluid, Farmall tractors

1шт.

4

403623R1

TUBE, ether starting, International tractors

1шт.

5

404247R1

BAIL

ASSY, injector

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR, 1/8-24 ball sleeve tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

9

121220

TUBE NUT

NUT, tube connector

2шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

395073R1

PANEL

ether starting push button switch, Farmall tractors

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 10-32 x 1/2 C-Z slt-pan-hd

1шт.

12

140303

ELBOW

1/8-29 90 deg ball sleeve

1шт.

13

397940R93

SWITCH

push button, will work for 395074R91

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

366460R1

CABLE CLIP

CLIP, mounting on bracket for quick start

1шт.
