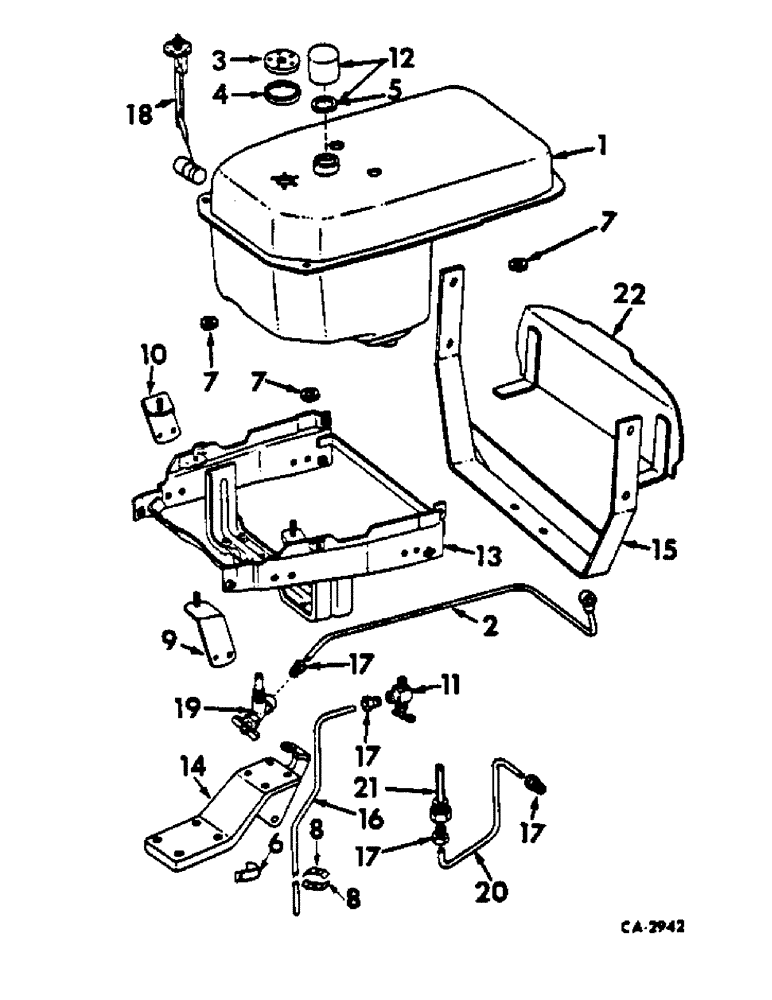

Запчасти Case IH 544 (E-10) - FUEL SYSTEM, FUEL TANKS, SUPPORTS AND PIPING, INTERNATIONAL DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

405927R92

TANK W/FILLER CAP, fuel, gear drive tractor, hydrostatic drive tractors, Start Serial: 12958

1шт.

102635

NUT,3/8"-16, G5

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 sq-hd pipe

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 sq-hd pipe

1шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

1

375099R91

TANK ASSY, w/filler cap, fuel, gear drive tractors, Serial Range: -12597

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 auto. sq-hd pipe

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-hd pipe

1шт.

2

402770R1

TUBE ASSY, fuel tank to filter, gear drive tractors, Serial Range: -12597

1шт.

2

405940R1

TUBE ASSY, fuel tank to filter, gear drive tractors, hydrostatic drive tractors, Start Serial: 12598

1шт.

3

369155R1

COVER, sending unit opening

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, 10-24 x 1/2 hex-hd mach

5шт.

4

369154R1

GASKET

sending unit opening cover

1шт.

5

23977DB

GASKET

fuel tank filler cap

1шт.

6

27307D

CLIP, fuel tank drain, hydrostatic drive tractors

1шт.

7

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

4шт.

8

371194R1

CLAMP, drain line, gear drive tractors

2шт.

109084

NUT,1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

405936R1

SUPPORT ASSY, fuel tank RH, Start Serial: 12598

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

10

405935R1

SUPPORT ASSY, fuel tank LH, Start Serial: 12598

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

11

152572C91

VALVE

inverted flare shut-off

1шт.

12

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

2133516

RIVET, 1/8 x 1/8 C-Z OV-HD tubular

2шт.

13

376880R91

SUPPORT ASSY, fuel tank and cowl rear, Serial Range: -12957

1шт.

13

405933R1

SUPPORT, fuel tank and cowl rear, Start Serial: 12598

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

4шт.

14

403583R1

SUPPORT, fuel tank, hydrostatic drive tractors

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, fuel tank, hydrostatic drive tractors

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, 7/16-14 x 1-5/8 hex-hd cap

2шт.

15

527750R1

SUPPORT ASSY, fuel tank front

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

405932R1

SPACER, fuel tank & cowl front

2шт.

16

402771R21

TUBE ASSY, fuel tank water drain, gear drive tractors, Serial Range: -12597

1шт.

16

405939R1

TUBE ASSY, fuel tank water drain, gear drive tractors, Start Serial: 12598

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

1шт.

16

528075R1

TUBE ASSY, fuel tank drain, hydrostatic drive tractors, on orders for 405941R1 or 403582R1, also furnish valve, 152572C91

1шт.

17

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

4шт.

18

377104R91

SENDER UNIT

SENDING UNIT ASSY, electric fuel gauge

1шт.

3372627R91

SCREW, sending unit mounting

5шт.

19

396510R1

LOCK VALVE

VALVE, inverted angle shut-off

1шт.

20

402772R11

TUBE ASSY, fuel tank to return, gear drive tractors, Serial Range: -12597

1шт.

20

405942R1

TUBE ASSY, fuel tank to return, gear drive tractors, hydrostatic drive tractors, Start Serial: 12598

1шт.

21

396515R1

CHECK VALVE

CONNECTOR, fuel return pipe check

1шт.

22

375102R11

SHIELD ASSY, heat, Serial Range: -12597

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

49909K

SPACER, heat shield bracket

1шт.

379791R1

WASHER, 11/32 x 3/4 x 11 ga

1шт.
