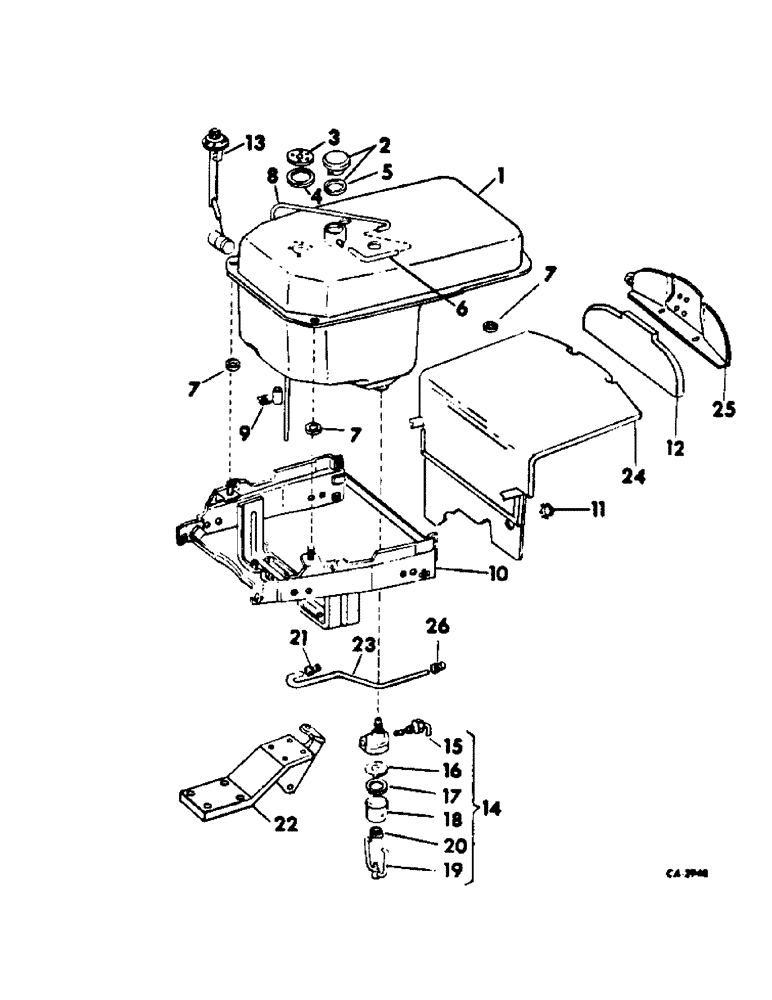

Запчасти Case IH 544 (E-08) - FUEL SYSTEM, FUEL TANKS, SUPPORTS AND PIPING, INTERNATIONAL GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

389939R91

TANK W/FILLER CAP, fuel

1шт.

2

389943R91

CAP

ASSY, fuel tank filler w/gasket

1шт.

3

369155R1

COVER, sending unit opening

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, 10-24 x 1/2 hex-hd mach

5шт.

4

369154R1

GASKET

sending unit opening cover

1шт.

5

23977DB

GASKET

fuel tank filler cap

1шт.

6

389935R2

HOSE, fuel vent, replaces 393581R1

1шт.

7

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga.

4шт.

8

398359R1

TUBE, fuel vent, replaces 389941R1

1шт.

9

389942R1

CLIP, fuel vent pipe oil pan

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga.

2шт.

10

379198R92

SUPPORT ASSY, fuel tank & cowl rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

11

454184

PLUG, 1-3/32 C-Z button, Start Serial: 14194

1шт.

12

530471R2

INSULATION, upper heat shield, Serial Range: -14194

1шт.

13

378427R92

GAUGE

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

14

369988R91

FILTER CARTRIDGE

STRAINER W/COUPLING NUT, fuel

1шт.

15

259403R91

COCK

STEM ASSY

1шт.

16

49923D

FILTER SCREEN

SCREEN ASSY

1шт.

17

360679R1

GASKET

1шт.

18

357958R1

BOWL

1шт.

19

49947D

COLLAR CLAMP

BAIL ASSY

1шт.

20

50061D

NUT

strainer

1шт.

21

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

22

403583R1

SUPPORT, fuel tank, hydrostatic drive tractors

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, 7/16-14 x 1-5/8 hex-hd cap

4шт.

23

405059R93

PIPE ASSY, strainer to fuel pump

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

1шт.

24

530464R1

SHIELD ASSY, lower heat w/insulation, 530466R1, order parts accessory, 530764R91, Serial Range: 14195-14194

1шт.

530466R1

INSULATION, lower heat shield

1шт.

25

530631R1

SHIELD ASSY, upper heat, replaces 404733R1

1шт.

26

145475

HYD CONNECTOR

CONNECTOR, 1/8-27 flared tube

1шт.

530764R91

PARTS ACCESSORY, extended and insulated heat shield, tractor serial no. 14194 & below, consists of reference nos. 11, 12 and 21 through 24

1шт.
