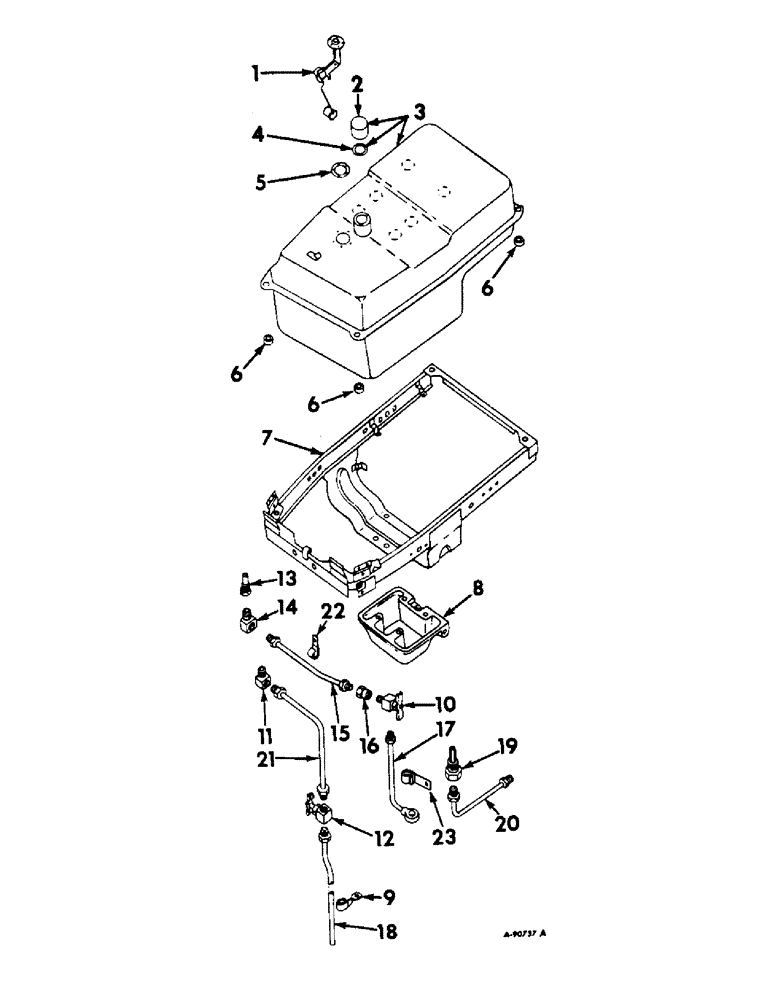

Запчасти Case IH 544 (E-07) - FUEL SYSTEM, FUEL TANKS, SUPPORTS AND PIPING, FARMALL DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

377103R91

SENDER UNIT

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

213516

RIVET

1/8 x 1/8 C-Z OV-HD tubulat

2шт.

3

401502R91

TANK & FILLER CAP ASSY, fuel

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

NLS

NO LONGER SERVICED

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

4шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

369154R1

GASKET

sending unit

1шт.

6

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

4шт.

7

401971R91

FRAME ASSY, fuel tank

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

389117R91

NUT

5/16-18 floating cage

2шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 hex-hd cap

4шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

8

388331R2

SPACER, fuel tank

1шт.

9

370740R1

CLAMP

CLIP, fuel tank drain pipe

1шт.

10

152572C91

VALVE

fuel tank shut-off

1шт.

11

137421

ELBOW UNION

ELBOW, 1/8-27 x 7/16-24 90 deg. inverted flared tube, tank to drain tube

1шт.

12

398182R1

VALVE

fuel tank drain

1шт.

13

401364R1

CONNECTOR ASSY

1шт.

14

189953

ELBOW

1/8-27 90 deg inverted flared tube

1шт.

15

401370R1

TUBE ASSY, Serial Range: tank-valve

1шт.

16

191559

CONNECTOR, 1/8-27 x 1/2-20 internal pipe thread

1шт.

17

401371R1

TUBE ASSY, Serial Range: valve-filter

1шт.

18

401369R1

TUBE ASSY, drain

1шт.

19

396515R1

CHECK VALVE

CONNECTOR, fuel return

1шт.

20

401368R1

TUBE ASSY, fuel return

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE ASSY, tank to valve drain, use 14.0 in. of 1/4 OD copper tubing from 50 ft. roll marked 995061R1 & two nuts, 137397

1шт.

222-1002

TUBE NUT,1/4" Tube, Inv Fl

NUT, 7/16-14 inverted flared tube

2шт.

22

362123R1

CLIP

fuel line support

1шт.

23

384559R1

CLIP

fuel line support

1шт.
