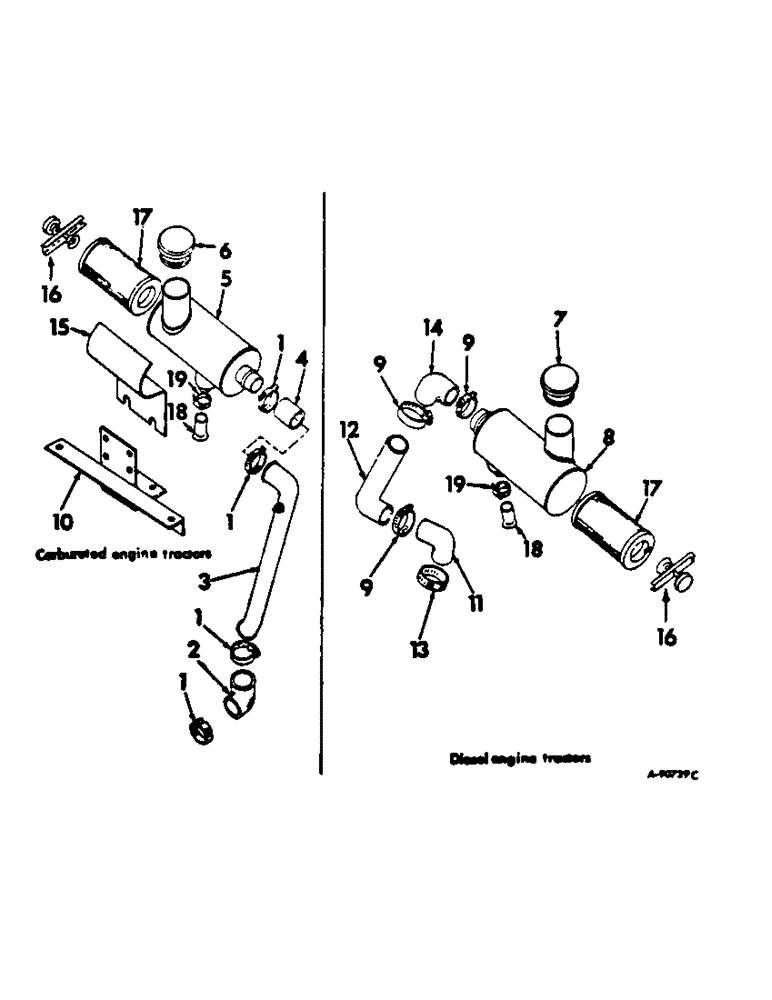

Запчасти Case IH 544 (E-04) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, INTERNATIONAL TRACTORS (02) - FUEL SYSTEM

1

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP, air cleaner hose, replaces 279028R91

4шт.

2

406401R1

HOSE, carburetor air inlet, gear drive tractors (replaced 402500R1)

1шт.

2

403401R1

HOSE, carburetor air inlet, hydrostatic drive tractors

1шт.

3

402498R1

TUBE, air, Serial Range: cleaner-carburetor

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE, air cleaner pipe, furnish 2-1/4 in. from bulk roll marked 407010R1

1шт.

5

402493R91

CLEANER ASSY, air, includes ref. nos. 16 thru 19

1шт.

6

353018R92

CYLINDER END CAP

CAP ASSY, air intake

1шт.

7

272377R91

CYLINDER END CAP

CAP ASSY, weather, replaces 365316R91

1шт.

8

402494R91

CLEANER ASSY, air, includes ref. nos. 16 thru 19

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

9

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner hose, replaces 274088R91

3шт.

10

402495R2

BRACKET ASSY, air cleaner

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

181354

BOLT

SCREW, 3/8-24 x 1/2 hex-hd cap

4шт.

11

402502R1

HOSE, air cleaner elbow

1шт.

12

402503R1

TUBE ASSY, air cleaner outlet

1шт.

13

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose, replaces 279029R91

1шт.

14

306190R1

HOSE ASSY.

HOSE, air cleaner outlet, will work for 402501R1

1шт.

15

403377R1

SHIELD, air cleaner heat

1шт.

16

313965R91

LOCK

BAR ASSY, retainer

1шт.

17

313964R91

AIR CLEANER

FILTER ASSY, carbureted engine tractors

1шт.

17

403889R1

FILTER, ELEMENT

FILTER ASSY, diesel engine tractors

1шт.

18

324194R1

GROMMET

UNLOADER

1шт.

19

526609R91

CLAMP

1шт.
